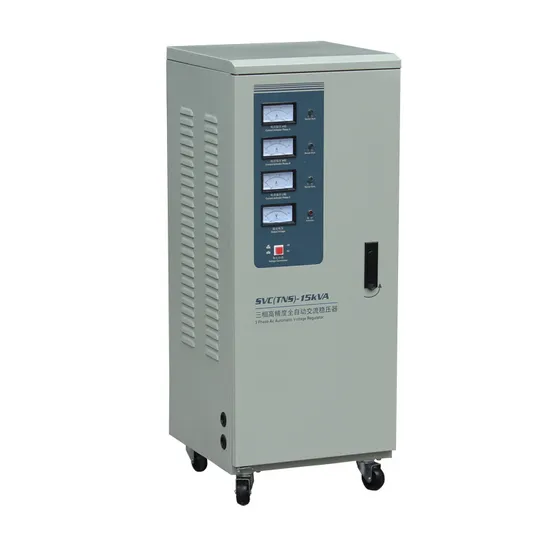

SVC/TNS-15KVA Three Phase High Accuracy AC Voltage Stabilizer AVR
Basic Info.
Model NO.
SVC/TNS-15KVA
Frequency Characteristics
Power Frequency
Usage
SVC
Frequency
50/60Hz
Size
Medium
Iron Core Shape
Ring
Power Source
Switching Regulated Power Supply
Application Range
Industrial and Mining Enterprises
Brand
SMUN
Input Voltage
277-430V
Output Voltage
380V +/-3%
Product Size
34*36.5*85.5cm
Weight
56Kg
Color
White
Contor System
<Unite control / independented control
Voltage
Can be Customized
Type
Servo Motor
Transport Package
Packed in Standard Export Carton or Wooden Case
Specification
SVC/TNS-15KVA
Trademark
OEM
Origin
China
HS Code
8504401990
Production Capacity
10, 000PCS/Month
Product Description
DescriptionSVC/TNS Series three-phase high accuracy full-automatic AC voltage stabilizer.It is combined the performance of the Series SVC single-phase products,the input phase system is three-phase and fourwire system,the output voltage is 220V of phase and 380V of line voltage,within the roted capacity range,they also can be used for the equipment of which the source voltage is single-phase 220V or three-phase 380V.
Features
1.Reasonable Price, Best Quality 2.Reliable Performance 3.Long-term With Simple Operation 4.Servo motor drive
5.Full Automatic Timely
6.High accuracy
Specifications
| Product | Technology | TNS-6KVA TO TNS-100KVA | |
| Power (VA) | |||
| Input | Phase | Three phase | |
| INPUT VOLTAGE | 277-430V | ||
| contor system | Unite control / independented control | ||
| Frequency | 50/60Hz | ||
| Output | Voltage | 380V +/-3% | |
| Power factor | the power can arrived 90% when input voltage 380V | ||
| control | Servo motor | ||
| Protection | Higher voltage | when output voltage 246+/-4V , the protection will work | |
| Lower voltage | when output voltage 186+/-4V , the protection will work | ||
| Short circuit | YES | ||
| Over loading | YES | ||
| Bypass function | Manual Switching | ||
| Efficiency | AC-AC | 0.96 | |
| Acoustic | Noise level | ≤50dB | |
| Environment | Temperature | -5-60 DegreeC | |
| Humidity | 20% to 90% | ||
