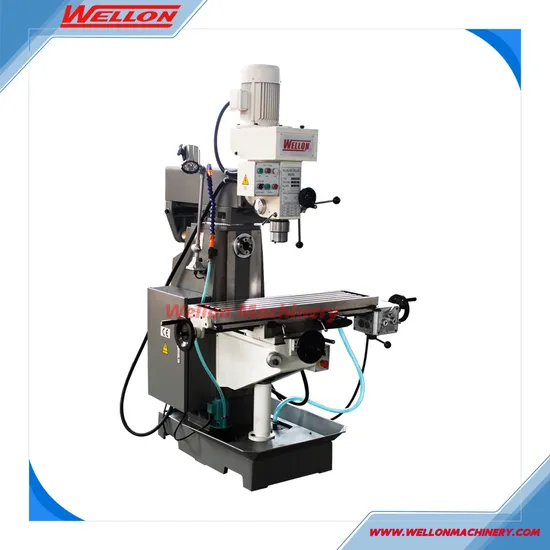

Professional Drilling Milling Machine (Universal Milling drilling machine price ZX7550CW ZX7550C)
| US$2,200.00-2,900.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
ZX7550CW zx7550c
Structure
Lifts
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Precision
Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Color
Customized
Max.Drilling Dia.
50mm
Max.Tapping Dia.
M16
Max.End Milling Width
100mm
Table Size
1000X240 mm
Table Travel
600X220 mm
Spindle Speed Range
115-1750rpm
Spindle Travel
120mm
Max.Vertical Milling Dia.
25mm
Weight
970kg
Dimension
1290*1140*2100mm
Transport Package
Wood Case
Specification
CE ISO9001
Trademark
WELLON
Origin
Tengzhou China
HS Code
84595900
Production Capacity
100PCS/Month
Product Description
Products Description:Features:
1.Uses standardized assemblies from the VH milling machine universal use as milling machines and drill press
2.Easily shiftable gear drive ensures power transmission without losses
3.With V-belt spindle drive and gear spindle drive
4.Head swivels into the horizontal level on both sided via crank and toothed gear, easy activation of manual micro-feed for the spindle quill
Standard accessories:
Drill chuck,Mill chuck,Reduction sleeve,Machine vice,Wrench,Inner-hexagonal,Camlock,Wedge shifter,Spindle arbor,Horizontal millnig bilt,Operation manual,Quality certificate,Packing list.
ZX7550C without horizontal milling spindle.
| SPECIFICATION | UNIT | ZX7550C | ZX7550CW |
| TABLE SIZE | MM | 1000×240 | 1000X240 |
| SPINDLE SPEED RANGE | R/MIN | 115-1750 | 115-1750 |
| TABLE TRAVEL | MM | 600×220 | 600X220 |
| MAX.DRILLING DIA. | MM | 50 | 50 |
| MAX. END MILLING WIDTH | MM | 100 | 100 |
| MAX. TAPPING DIA. | MM | M16 | M16 |
| MAX.VERTICAL MILLING DIA. | MM | 25 | 25 |
| DISTANCE FROM SPINDLE NOSE TO TABLE SURFACE | MM | 70-420 | 70-420 |
| SPINDLE SPEED | RPM | 115-1750 | 115-1750V/58-1355H |
| SPINDLE TRAVEL | MM | 120 | 120 |
| SPINDLE MOTOR POWER | KW | 0.85/1.5 | 0.85/1.5 |
| HORIZONTAL MOTOR POWER | KW | 2.2 | |
| OVERALL DIMENSION(L×W×H) | MM | 1290×1140×2100 | 1290×1140×2100 |
| NET WEIGHT | KG | 800 | 970 |
Standard accessories:
| Drill chuck |
| Reduction sleeve |
| Draw bar |
| X axis auto power feed |
| Collet chuck kits |
| Coolant system |
| Chip tray |
| Work lamp |
| Tools and box |
Optional accessories
| Y axis power feed motor |
| Z axis power feed motor |
| 3 axis DRO |
| Air draw bar |
| Separately control panel box |
| 58 pcs Clamping kits |
| Spindle protection |
| Worktable protection |
| Worktable swivel ±45 degree |
| Rotary table HV10 |
| Dividing head BS-0 |
| Machine vice 160mm |
