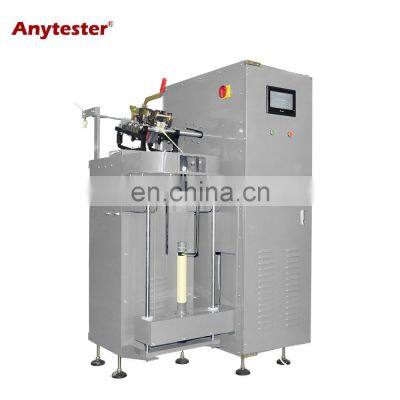

Laboratory Roving Machine

Product Description

Product Description
Product DescriptionHY1005 Laboratory Roving Machine is part of the mini spinning system. It’s mainly used in university, researching center etc. and it is used to make roving from sliver. And in the same time, insert the twist into the roving and then winding the twisting roving on bobbin.Features1. Imported frequency converter control, high efficiency.2. Mini type machine, save researching cost and easy to operate and maintain3. Can perform four functions in one machine, open cotton bale, remove impurities, blend cotton and lapping.4. Can be used for cotton fiber or wool fiber (alternative)with different machine partsSpecification ModelHY1005Spindle number1Fiber typeCotton or wool (alternative)Twisting range50-250 twist/mDrafting rangeApprox. 2~50Fiber length22 ~ 42 mm or customizedOutput capacity0.25 ~ 1 kg per hour or customizedRoller diameterΦ28/25/28mmOutput speedApprox. 12m/minSpindle flyer speed600rpmCan sizeΦ250*550mmPower220V/380V, 50/60Hz, 700WDimension1000*800*1600mm
