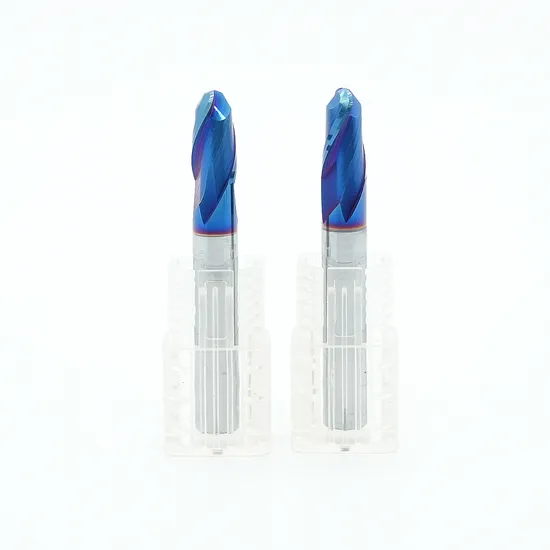

Tungsten Ball Nose End Mill Blue Nano Coating for Hard Steel

Product Description

Product Description
Blue Nano coated ball nose milling cutter

Product Parameters
1. Raw Material

HRC65

H10F

Grain Size:0.4um Co:12.5 % Flexural strength:4300N/mm2

2.Super Coating

	AlTiN	TiAIN	TiSiN	Nano
Hardness(HV)	3200	2800	3600	42(GPA)
Thickness(UM)	2.5-3	2.5-3	3	3
Oxidation Temp(°)	900	800	1000	1200
Friction Coeffient	0.3	0.3	0.45	0.4
Color	Black	Violet	Copper	Blue

3.Size specification and customized service is available

Size specification	diameter	Cutting length	Shank	A.0.l
	d		D	L
R0.5×2×4D×50L×2F	1	2	4	50
R0.75×3×4D×50L×2F	1.5	3	4	50
R1.0×4×4D×50L×2F	2	4	4	50
R1.25×5×4D×50L×2F	2.5	5	4	50
R1.5×6×4D×50L×2F	3	6	4	50
R1.5×6×3D×50L×2F	3	6	4	50
R1.75×7×4D×50L×2F	3.5	7	4	50
R2.0×8×4D×50L×2F	4	8	4	50
R2.5×10×5D×50L×2F	5	10	6	50
R2.5×10×6D×50L×2F	5	10	6	50
R3.0×12×6D×50L×2F	6	12	6	50
R3.5×14×8D×60L×2F	7	14	8	60
R4.0×16×8D×60L×2F	8	16	8	60
R4.5×18×10D×75L×2F	9	18	10	75
R5.0×20×10D×75L×2F	10	20	10	75
R5.5×22×12D×75L×2F	11	22	12	75
R6.0×24×12D×75L×2F	12	24	12	75
R7.0×28×14D×100L×2F	14	28	14	100
R8.0×32×16D×100L×2F	16	32	16	100
R9.0×36×18D×100L×2F	18	36	18	100
R10×40×20D×100L×2F	20	40	20	100
R1.5*6*3D*75L*2F	3	6	3	75
R1.5*6*4D*75L*2F	3	6	4	75
R2*8*4D*75L*2F	4	8	4	75
R2*8*4D*100L*2F	4	8	4	100
R2.5*10*5D*75L	5	10	5	75
R2.5*10*6D*75L	5	10	6	75
R2.5*10*5D*100L	5	10	5	100
R2.5*10*6D*100L	5	10	6	100
R3*12*6D*150L	6	12	6	150
R4*16*8D*75L	8	16	8	75
R4*16*8D*100L	8	16	8	100
R4*16*8D*150L	8	16	8	150
R5*20*10D*100L	10	20	10	100
R5*20*10D*150L	10	20	10	150
R6*24*12D*100L	12	24	12	100
R6*24*12D*150L	12	24	12	150
R7*28*14D*150L	14	28	14	150
R8*32*16D*150L	16	32	16	150
R9*36*18D*150L	18	36	18	150
R10*40*20D*150L	20	40	20	150

Company Profile
4. Each end mill is inspected by Zoller measuring and inspected machine.
5.Suit for processing steel ,stainless steel ,nickel alloy ,cast iron and other hard materials
6. The following Specification for your refer, We also provide the OEM or ODM service

7. Package and shipping details
Laser brand on the cutter's shank , 1 pc in a plastic tube , 10pcs a group
Delivery Time
For samples , we dispatch your tools in 2-7 workdays .
For formal orders,We delivery tools to you in 7-30 workdays , it will depond on your order quantity .
8. Payment Term
T/T ,Western Union , MoneyGram,L/C
9.Why Choose Hiboo Tools
Several years' professional producting and exporting experience
Advanced RD department meet your special demands
High precision CNC machines,high standard and strict inspection
Custom demand are welcomed ,OEM and ODM Service
All payment terms supported
Fast delivery time and Convenient Transportations
More than 2000 products are available
For your suggestions or complaints,We will handle them Soonest
