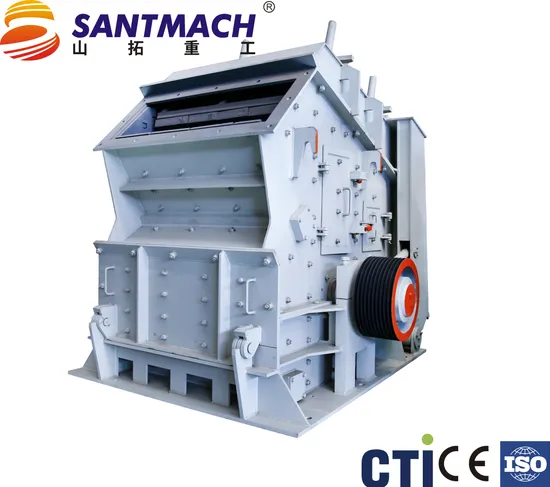

Small PF Series Impact Crusher for Mining Industrial

Product Description

Detailed Photos
Product Description Impact crusher adopts the advanced technology and unique structural design, finished products present cubic shapewithout tension and cracks make the paricle shape more perfectly, it can crush coarse, medium and fine materialssmall than 500mm,with compression strength lower than 350MPA,such as granite, limestone, concrete etc. lmpaccrusher is widely used in all kinds of ore crushing, ralway, highway, energy, cement, chemical and construction industryetc.The output size can be adjusted.
Product Advantages 1. Many cavities to crush, suitable for crushing hard rock.
2. Reasonable design of leveling plate makes final products finer and in cubic shape without interior cracks.
3. Low and big feed opening makes the production line easy to arrange and increase the size of feeding material.
4. Use the full hydraulic open device, easy to maintain and change wear-parts;New anti-abrasive material makes longer service life of blow bar, impact plate and liner.
Product Parameters

Model	Rotor Spec (mm)	Feed opening size (mm)	Max.feed edge (mm)	Capacity (t/h)	Motor power (kw)	Weight (t)	Overall Dimension (L*W*H) (mm)
PF-1007	Φ1000×700	400×730	300	35-50	37	9.5	1800×1600×1800
PF-1010	Φ1000×1050	400×1080	350	50-80	75	14	2340×2007×2500
PF-1210	Φ1250×1050	400×1080	350	70-120	110	17	2582×2053×2809
PF-1212	Φ1250×1200	400×1250	350	70-140	132	17.5	2582×2203×2809
PF-1214	Φ1250×1400	400×1430	350	80-160	132	22	2582×2403×2809
PF-1315	Φ1300×1500	680×1520	350	90-220	200	26	2930×2761×3053
PF-1320	Φ1300×2000	680×1570	350	110-350	280	28	3340×2950×3000

Packaging & Shipping To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
After Sales Service
