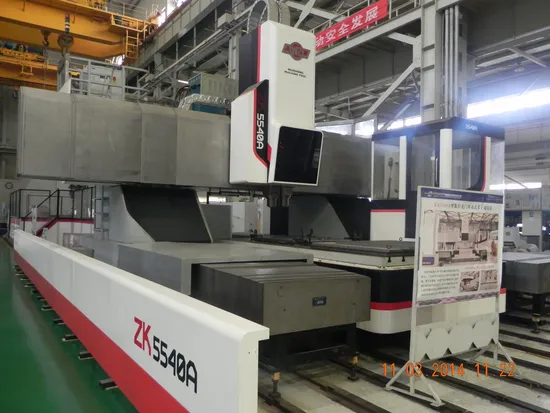

Zk5480/40 CNC Gantry Type Drilling Machine
| US$250,000.00-1,000,000.00 | 1 Piece (MOQ) |
Basic Info.
Type
Tool Milling Machine
Object
Tool
Structure
Gantry
Milling Cutter Type
Angle Milling Cutter
Milling Cutter Structure
Integral
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
High Precision
Certification
ISO 9001
Condition
New
Power Supply
380V/415V
Temperature
5- 40° C
Relative Moisture
Less Than 85%
Workshop Environment
No Dust, No Harmful Gas/Liquid
Transport Package
Wood
Specification
iron
Trademark
WZ
Origin
China
HS Code
8459619000
Production Capacity
50
Product Description
Product DescriptionAPPLICATION
ZK54 series CNC gantry type multiple-axis milling and drilling machine combines multiple functions with high accuracy, high efficiency and intelligent. Machine is of fixed gantry structure, with high accuracy rotary table. Besides drilling on a plane, with indexing table and right angle head the machine can carry out side drilling.
Product Parameters
| Item | Unit | ZK5480/40 | ZK5480/50 | ZK5480/60 |
| Table diameter | mm | 3600 | 4500 | 5500 |
| Max. job swing diameter | mm | 4000 | 5000 | 6000 |
| Table unit loading capacity | t | 30 | 30 | 30 |
| Distance between columns | mm | 4300 | 5300 | 6300 |
| QTY of drilling and milling axis | 2×1 | 2×1 | 2×1 | |
| Max. distance from drilling and milling spindle end to table surface | mm | 750 | 750 | 750 |
| Ram vertical travel | mm | 500 | 500 | 500 |
| Power of drilling and milling spindle | kW | 41 | 41 | 41 |
| Highest speed of drilling and milling spindle | r/min | 3500 | 3500 | 3500 |
| Max. rated torque of drilling and milling spindle | Nm | 1200 | 1200 | 1200 |
| Max. drilling diameter | mm | 80 | 80 | 80 |
Detailed Photos
The machine has two spindles with separate independent drive and independent feeding and flexible in control. Machine adopts SIEMENS CNC system. Main drive adopts AC servo motor with related speed adjusting and drive. Each feeding axis can adopt optical scale for closed loop control. The machine can carry out milling. ATC can be adopted: attachment head can be adopted.
Workshop
Packaging & Shipping
