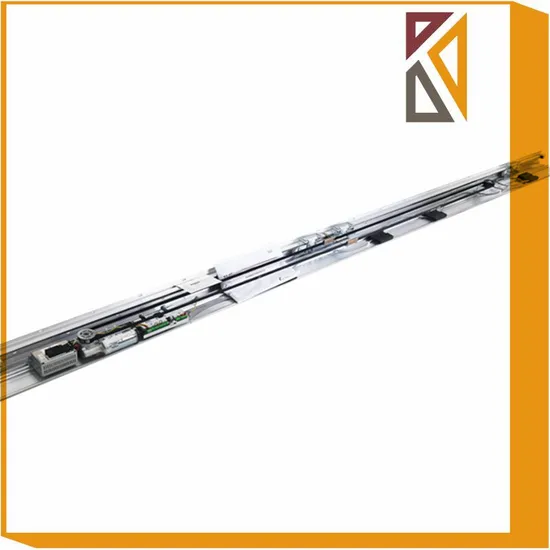

Dormakaba Es200 Automatic Sliding Door Automation Origin
| US$2,500.00 | 20 Sets (MOQ) |
Basic Info.
Model NO.
ES200
Material
Aluminum Alloy
Type
Sliding
Open Style
Sliding
Opening Type
Contactless Switch
Special Function
Commercial
Color
Brown
Certification
TUV, ISO9001, CE
Position
Interior
Surface Finishing
Finished
Motor
Dunkermotoren Motor
Controller
Smart Controller
Holding Weight
180kg*2
Design
Modular Design
Power Supply
110V-220V
IP Rate
20
Emergency Stop
Yes
Error Reading
Yes
Programmer Adjusting
Yes
24V Output
Yes
Anti-Panic System
Yes
Application
Hotel,Bank,Airport,Supermarket
Standard
En16005
Transport Package
Carton
Specification
4.2m/6m length
Trademark
Dorma
Origin
China
HS Code
9032899090
Production Capacity
1000sets/Month
Packaging & Delivery
Package Size
428.00cm * 19.00cm * 17.00cm
Package Gross Weight
27.500kg
Product Description
The new, innovative ES200 sliding door operator system offers the perfect solution for all applications and service requirements. The ES200, equipped with the dormakaba PowerDrive technology, fulfills every demand imposed on operators in terms of adaptability to different door widths, door weight capacity and functionality.Wire Diagram,
Dorma ES200 control unit provide terminal for light barrier, emergency off pushbutton, programm switch, key switch, code card reader, radars, Hand programmer,etc. and has DCW port for functional controller.
Door Parameter,
| 1-panel sliding door - Clear passage width - Door panel weight, max. | LW 700 - 3000 mm 1x200KG |
| 2-panels sliding door - Clear passage width - Door panel weight, max. | LW 800 - 3000 mm 2x160KG |
Technical Datas,
| Height | 100 and 150 mm |
| Overall depth | 180 mm |
| Opening and closing force, max. 150 N | Max. 150N |
| Opening speed (incremental setting) | 10 - 70 cm/s |
| Closing speed (incremental setting) | 10 - 50 cm/s |
| Hold-open time | 0 - 180 sec. |
| Mains voltage, frequency | 230 V, 50/60 Hz |
| Power consumption | 250 W |
| Class of protection | IP 20 |
| Compliant with EU low-voltage directives | Yes |
| Manufacture according to ISO 9001:2000 | Yes |
Basic Module(BM),
| Modular design | Yes |
| Microprocessor-controlled function programs - Off - Automatic - Permanent open - Partial opening - Exit only - Night-bank control | Yes Yes Yes Yes Yes Yes |
| Connections for - electro-mechanical lock - light barriers | Yes Yes |
| Adjustment of all basic parameters via integrated display and pushbuttons | Yes |
| PDA parameter setting | Yes |
| 24 V output for external loads | Yes |
| Read-out error memory with error codes | Yes |
| DCW bus interface | Yes |
| Rechargeable battery pack for emergency operation | Yes |
