HIgh Quality Imported UV lamp Ultraviolet Accelerated Weatherometer

Product Description

Product Description
Product Description

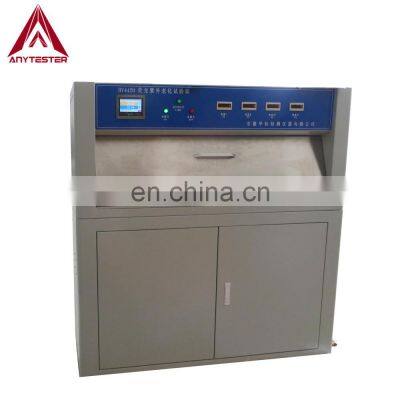

HY4420 Ultraviolet Accelerated Weatherometer is used to simulate ultraviolet radiation, rain spraying, condensation, temperature and humidity environment for accelerated ageing test of textile, rubber, plastic, paint, coating and other product. It adopts UV lamp as light source.
Standard

ISO 1431	GB/T 7762	BS EN 12224
Note: For more standards, please contact us

Specification

Model	HY4420
Dimensions of working chamber	450×1170×500mm (D×W×H)
Temperature range	RT+10℃~+70℃
Temperature fluctuation	±1℃
Temperature uniformity	±3℃
Humidity range	≥95% R·H
Center distance of UV lamp	65~70mm
Distance between specimen and surface of lamp	50±2 mm
Timing range	0~999h
Light source	UVA-340 or UVB-313
UV wavelength range	315~400nm, 280~315nm
Size of specimen rack	80×300mm
Power supply	AC220V 50Hz 3.5kw
Dimensions	500×1380×1480mm (D×W×H)
Weight	120kg

Details & Features
★ Imported UV lamp, ballast, starter and solid-state relay★ 304 SUS stainless steel casing
★ Air duct in the chamber adopts single cycle system to improve the air flow, heating capacity and the uniformity of temperature in the chamber
★ Real-time display running time, running phases, remaining time; can display test data, including set temperature, current temperature, total running time, running time of current phase, remaining time of current phase, heating condition, calendar time, etc.; digital display temperature
★ Several alarm function: absolute value alarm, deviation alarm
★ Control system adopts zero passage triggering through solid-state relay, low noise, less pollution, easy to maintain, high control accuracy
★Current leakage protection function, overload power-off function, over-temperature protection, water lack protection, etc.
★ Spraying system is optional to meet more test standard and simulate more circumstances
Our Company
History
Since 1982 with more than 20 years’ experience
Warranty
Two Year Warranty for whole product
Training
Video and user manual for training
Onsite service
Installation and training service is available
Testing service
Free sample testing before order is available
Lead time
15 working days lead time for most product
Packing & Delivery

Packaging
Packaging Details	1. The equipment is covered with film is protect it from water vapour during the trip.  2. The box is filled with foam to protect the equipment from impact.  3. Exported wooden box made from plywood, don't need fumigated.

Payment

Payment Term	T/T	EXW	30% T/T in advance, paid the balance before shipment
					FOB
				CFR(C&F)	30% T/T in advance, paid the balance against copy of B/L
				CIF
		L/C	L/C amount above 50,000 usd, we can accept L/C at sight
		West Union	Amount lower than 5000usd
		West Union
Delivery Time	7~10days after receiving payment for one container
