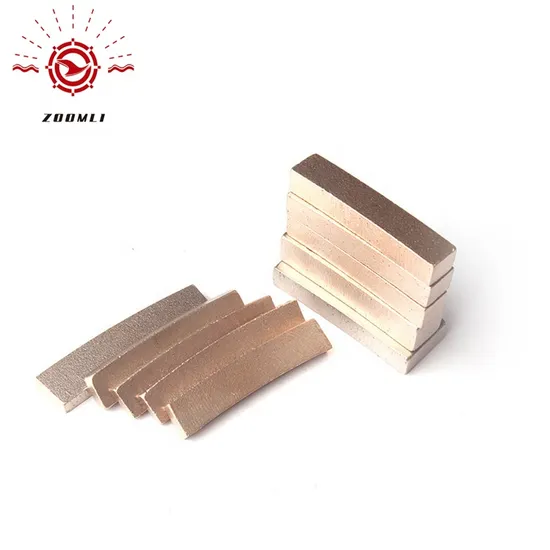

High Performance Marble Diamond Segment for Marble Limestone Travertine Cutting

Product Description

High performance marble diamond segment for marble limestone travertine cutting Specifications
For Granite Block Cutting Single Saw

Diameter		Core Thickness (mm)	Segment Dimension (mm)			Segment Number
mm	inch		Length	Thickness	Height
1000	40''	5.0	24	6.2/7.0	12/15/20	70
1200	48''	5.5	24	6.6/7.4	12/15/20	80
1400	55''	6.5	24	7.6/8.4	12/15/20	92
1600	64''	7.2	24	8.6/9.4	12/15/20	108
1800	72''	7.5	24	9.2/10.0	12/15/20	120
2000	80''	8.0	24	9.8/10.6	12/15/20	128
2200	88''	9.0	24	10.2/11.0	12/15/20	132
2500	100''	9.0	24	10.2/11.0	12/15/20	140
2800	110''	9.3	24	10.5/11.5	12/15/20	156
3000	120''	9.5	24	12.0/13.0	12/15/20	160
3500	140''	9.5	24	12.5/13.5	12/15/20	180

For Granite Block Cutting (Mutli-Saw)

Blade Diameter (mm)	Segment Dimension (mm)
5.0	24*6.2/7.0*12 (15) (20)
5.5	24*6.6/7.4*12 (15) (20)
6.5	24*7.6/8.4*12 (15) (20)
7.2	24*8.6/9.4*12 (15) (20)

For Granite Slab Cutting

Diameter		Core Thickness (mm)	Segment Dimension (mm)			Segment Number
mm	inch		Length	Thickness	Height
300	12''	2.2	40	3.0	12/15/20	21
350	14''	2.4	40	3.2	12/15/20	24
400	16''	2.8	40	3.6	12/15/20	28
450	18''	2.8	40	3.8	12/15/20	32
500	20''	3.0	40	4.2	12/15/20	36
550	22''	3.0	40	4.2	12/15/20	40
600	24''	3.6	40	5.0	12/15/20	42
700	28''	4.0	40	5.5	12/15/20	42/50
800	32''	4.5	40	6.0	12/15/20	46/57

For Marble Slab Cutting

Diameter		Core Thickness (mm)	Segment Dimension (mm)			Segment Number
mm	inch		Length	Thickness	Height
300	12''	2.2	40	3.0	8/10	21
350	14''	2.4	40	3.2	8/10	24
400	16''	2.8	40	3.4	8/10	28
450	18''	2.8	40	4.2	8/10	32
500	20''	3.0	40	4.2	8/10	36
600	24''	3.6	40	4.6	8/10	42

For Sandstone Block Cutting

Diameter		Core Thickness (mm)	Segment Dimension (mm)			Segment Number
mm	inch		Length	Thickness	Height
900	36''	5.0	24	7.0/8.0	12/15/20	64
1000	40''	5.0	24	7.0/8.0	12/15/20	70
1200	48''	5.5	24	8.0/8.8	12/15/20	80
1400	55''	6.0	24	8.0/8.8	12/15/20	92
1600	64''	7.0	24	9.0/10.0	12/15/20	108
1800	72''	7.5	24	9.0/10.0	12/15/20	120
2000	80''	8.0	24	11.0	15/20	128
2200	88''	8.0	24	11.0	15/20	132
2500	100''	9.0	24	12.5	15/20	140
2700	110''	9.0	24	12.5	15/20	140

Gangsaw Segment For Marble Block Cutting

Blade Diameter (mm)	Segment Dimension (mm)
3.0/3.5	20*5.4/4.8*8
	20*5.4/5.0*8
	20*5.4/5.0*10
	20*5.0*10
	20*5.0*8
	24*5.2/4.6*8
	24*5.5*8

Application


Factory
Established in 1991, Jiangxi Zhongli Superhard Materials Tools Co., Ltd, has more than 20 years experience of Superhard Tools industry production. With an annual production capacity of 60,000 meters wire per month, Zhongli now is Top 1 diamond superhard production enterprise in the world and it's annual diamond consumption now in the front of ranks of countries.
Zhongli owns a international technical team, it's technical talent force, hardware and software conditions, research and development ability are all in leading position of the same industry all over China. Zhongli is dedicated to its core value of "Customers spread all over the world, Benefit reach to each person" and its enterprise spirit of being "Unity, Integrity, Creative, Development" in order to keep moving towards its initial goal of focusing on products.
Certificate
Our Market
Shipping Transport ways choose:
a. Urgent order with less weight or samples we recommend express service.
b. Normal (regular) orders which weight over 45kgs we recommend Air Cargo.
c. Big diameter saw blades or heavy weight we recommend Sea Cargo.
Our Services
a. MOQ: Any quantity you need is welcomed.
b. Customized Design: We can produce according to your request.
c. Good Service: We treat you need with high professionalism and passion.
d. Good Quality: Strict quality control system.Products get great feedback from customers.
e. Fast Delivery: We can delivery our cargo in 7 days, as soon as possible.

After-sales Service
a.Reply within 24 Hours
b.Professional consultation service is available within 24 hours after receiving your feedback regarding the items that that you bought.

Global Insurance Service
Global insurance service guarantees the safety of items when installation and application.

Compensation Policy
Any quality problem caused by our company side with enough evidence, we promise you that if could be re-produced for free.

FAQ

Q1. Are you a factory or trading company?
A1. We are a factory.

Q2. What's your MOQ?
A2. For our common specification, usually our MOQ should be 20pcs to 50pcs, but we accept lower quantity for your trial order.

Q3. How is your quality?
A3. We have a very seriously control system. We guarantee the high performance of our products.

Q4. Can we use our brand?
A4. Yes, we provide OEM service, just send your packaging design and Logo to us.

Q5.What is the Warranty for your products?
A5. For one year from the date of purchase, If any problem on our side, we will make prompt response, and take the shipping cost and send replacement.

Q6. Do you have different quality for different kind of stone?
A6. Yes, according hardness of stone and stone's feature, we have different typology respectively.

Q7. If we need technical support, can you offer us?
A7. Yes, we have an experienced team, offering our customers additional benefits with specific advice, by our product management staff, engineers and technicians.

Q8. How can we be your agent in our country?
A8. Please inform us your detailed company, we will discuss and propose helpful suggestion for you, and to find the best solution for you.

Q9. Do you offer free samples?
A9. Normally we do not offer free samples, but we guaranty our product's quality.

Q10. Is there cheap shipping cost to import to our country?
A10. For small order, Express will be the best, And for bulk order, sea ship way is best but take longer time. For urgent orders, we suggest via air to airport or by Express send to your door.

Q11. Which Express company you send? How many days we can receive?
A11. We are official partner of DHL, it will take only 3-5 days after we sent.

Q12. When you can reply to me when I send you an Inquiry?
A12. We promise to reply within 24 hours(not including holidays) on receipt of your inquiry.
