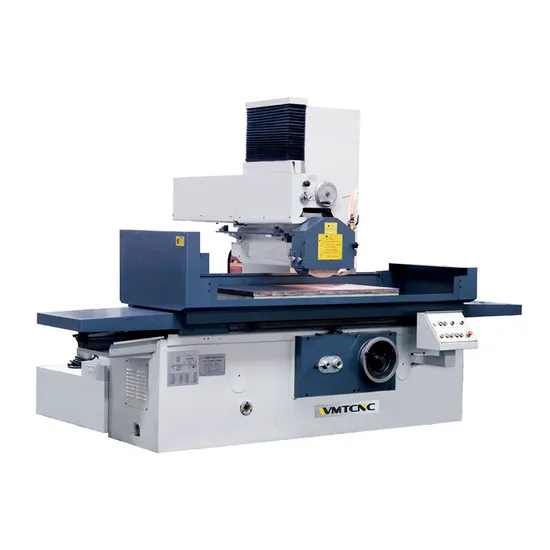

M7163 series big surface grinder grinding machine for sale
Basic Info.
Model NO.
M7163
Abrasives
Grinding Wheel
Controlling Mode
Artificial
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Table Size (L W)
630X1250
Table Travel
630X1250X500mm
Max. Loading on Work Table
1010KG
Spindle Motor
13.5
Wheel Size
400*40*230 mm
Transport Package
Standard Ply-Wood Case
Specification
CE SGS ISO9001
Trademark
WMT
Origin
Chizhou, Anhui, China
HS Code
8460190000
Production Capacity
50sets/Month
Product Description
Hydraulic Surface Grinding Machine M71631,The Metal surface grinding machine table in longitudinal movement driven by the vane pump, which is stability and low noise. The temperature of oil pool is low and the precision is fit for National Standard (GB/T4022-1983).
2,It can be carried out trough and flange lateral grinding.
3,Grinding head has rapid movements mechanism invertical movement, but also manually feed.
4,Grinding head vertical move can be adopted with power rapid movement or hand micro feed.
5,Grinding head motor and pump motors are high-grade motor, electrical carry out the national safety standards
6,Metal surface grinding machine have a position for installing digital readout
Specification:
| Specifications | M7163 |
| Worktable size | 630x1250/1600/2200/3000/4500 mm |
| Max. processing dimension width | 630mm |
| Max. processing dimension length | 1250/1600/2200/3000/4500 mm |
| Max. processing dimension height | 500 mm |
| Max.distance between spindle center to worktabe surface | 700 mm |
| Lingitudinal moving speed of worktable | 3-27mm/min |
| T slot number*W | 3*22 mm |
| Consecutive feed speed | 0.5-4.5m/min |
| Intermittent feed speed | 3-30mm/t |
| Rapid speed | 400mm/min |
| Hand wheel feed | 0.005mm/gra |
| Motor power | 7.5kw |
| Motor speed | 1440rpm |
| Total power | 13.75/15.75kw |
| Max.loading capacity of worktable with chuck | 1010/1290/1780/2430/3650 kg |
| Wheel size (OD*W*ID) | 400*40*230 mm |
| Machine size lenght | 3300/5320/5750/7880/12170 mm |
| Machine size width | 1900 mm |
| Machine size height | 2420 mm |
Standard accessories:
Tool box, Balancing stand
Flange wrench,Foundation bolts, Open-end wrench
Inner hexagon spanner
Wheel dresser,Balancing shaft
Setting palte, Wheel dresser holder
Permanent magentic chuck Optioanl accessories:
2 axis DRO
CE protection
Machine vice
Vacumn pump
