Stainless Steel Small Portable Lab Mixer 5L 10L
| US$500.00-1,680.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
VH-5
Application
Powder, Granules
Application Area
Food
Certification
CE, ISO, GOST, SONCAP, CCC, API
Condition
New
Main Material
Stainless Steel
Mixing Drum Shape
Drum
Stirring Type
Spiral
Warranty
1year
Working
High Speed Mixer
Name
V Shape Mixer
Ohter Name
V Blender
Material
Stainless Steel
Machine Standard
GMP
Corner
Round Corner, No Dead Corner
Inside Finish
Mirror
Applications
Powder, Grain, Flake
Power
110V 220V 380V
Rated Power
200W-1100kw
HS
8479820090
Mixer Type
V-Mixer
Layout Type
Verticle
Operating type
Cycle Operating
Transport Package
Wooden Case
Specification
CE, SGS, ISO, GMP
Trademark
CK
Origin
Changzhou
HS Code
8479820090
Production Capacity
500set/ Year
Product Description

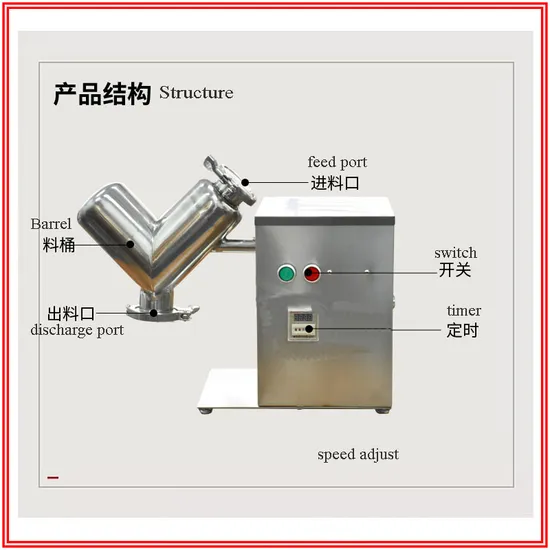

The VH series of small V-type mixers are used in laboratories, universities, scientific research institutions, etc., to mix dry powder or granular materials with good fluidity.Performance structure
*VH series V-type high-efficiency mixer can vacuum suction and seal butterfly valve discharge, and implement dust-free operation.
*The V-type mixer is composed of two asymmetric cylinders, the material can flow in the vertical and horizontal directions, and the mixing uniformity can reach more than 99%.
*Cylinder body is made of stainless steel plate, inner and outer walls are polished, clean and sanitary, no accumulation of materials, meeting GMP requirements.
*VH series V-type high-efficiency mixer is easy to operate, and can be equipped with timing operation or inching operation.
Technical parameters
| Model | VH-2 | VH-5 | VH-8 | VH-14 | VH-20 |
| Total volume(L) | 2 | 5 | 8 | 14 | 20 |
| Working volume (L) | 1 | 2.5 | 4 | 7 | 10 |
| Mixing time (min) | 10~15 | 10~15 | 10~15 | 10~15 | 10~15 |
| Rotary speed (rpm) | 20 | 20 | 20 | 20 | 20 |
| Power(kw) | 0.04 | 0.55 | 0.55 | 0.55 | 0.75 |
| Dimension (mm) | 475*205*390 | 720*350*610 | 810×350×620 | 930×360×820 | 950*390*890 |
Mixer in stock, fast delivery
Export wooden packing
