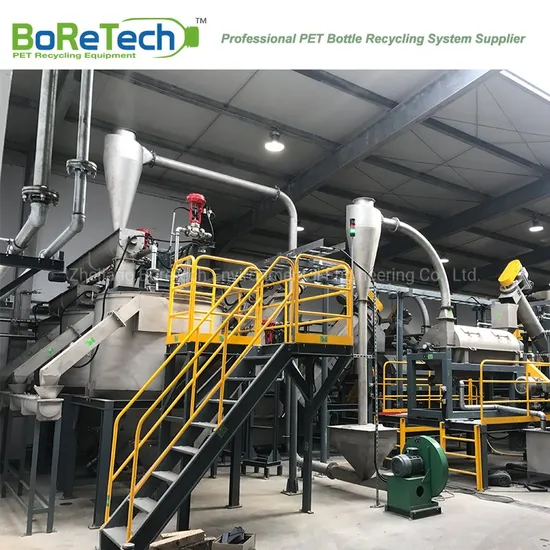

1500kg/H Used Plastic Cleaning Recycling Line

Product Description

1500KG/H Used Plastic Cleaning Recycling Line
PET bottle recycling system is used to recycle from PET bottles bales to PET flakes, which with big capacity from 500 kg/h to 9000 kg/h.This process of washing and crushing is consist of different function units. The final product rPET flakes has a stable quality and various grade applications, especially for PSF ,POY manufacturer with big capacity. Recent year, BoReTech develop new technology, rPET can be achieved Bottle-to Bottle grade application with FDA approval.
Advantage of PET Bottle Washing Line by BoReTech
- Food grade PET bottle washing line supplier in Asia;
- Greater capacity - Greater than 6t/hr input capacity of PET bottle recycling system with full automation and intelligentialize;
- Water saving -provide waste water treatment to decrease water consumption to be lower than 1 liter for each ton of PET flake;
-Optional Functional Unit for your choice:
1.Automatic Detergent Dosing System:In-line real-time monitoring,save manpower.
2.Online Water Saving System:Save water consumption.
3.PET Fines Purification:High speed centrifugation,multi-step separation,capacity:500 KG/H.
4.Tntegrated Automation:Monitor all machine running statuses and conditions,
fix any equipment problem in a timely manner and enhances plant safety and control stability.
B-to-B Grade PET Bottle Recycling Line

Estimated Plant Parameters
Input Capacity (kg/h)	Required Area (m2)	Installed Power (Kw)	Required Water (kg/h)	Required Steam (kg/h)	Requied Compressed Air(m3/min)	Manpower
1500	1500	600	2.25	700	3.5	5
3000	2000	900	4.5	1300	6.5	7
6000	3000	1000	9	2300	12	11
9000	4500	1600	14	3200	20	16

Production Consumprion Table-Average Energy Consumption per ton Flakes
Capacity (kg/h)	Electricity Consumption (KWh)	Steam (kg)	Washing Detergent (kg)	Water Consumption (ton)
1500	170	550	12	1.5
3000	160	500	12	1.5
6000	150	450	12	1.5
9000	145	400	10	1.5

The above parameters are calculated based on the standard contiguartion;PET bottle material composition and factory management level will affect actual consumption. Water consumption parameters are calculated based on using wastewater reuse system.
Fiber Grade PET Bottle Recycling Line

Estimated Plant Parameters
Input Capacity (kg/h)	Required Area (m2)	Installed Power (Kw)	Required Water (kg/h)	Required Steam (kg/h)	Requied Compressed Air(m3/min)	Manpower
500	800	170	0.75	200	0.5	8
1500	1200	400	2.25	700	0.5	12
3000	1800	600	4.5	1300	0.7	18
6000	2800	900	9	2300	1	30
9000	4200	1400	14	3200	1.5	40

Production Consumprion Table-Average Energy Consumption per ton Flakes
Input Capacity (kg/h)	Electricity Consumption (KWh)	Steam (kg)	Washing Detergent (kg)	Water Consumption (ton)
500	140	550	6	1.5
1500	130	500	8	1.5
3000	120	450	8	1.5
6000	100	400	8	1.5
9000	95	350	8	1.5

The above parameters are calculated based on the standard contiguartion;PET bottle material composition and factory management level will affect actual consumption. Water consumption parameters are calculated based on using wastewater reuse system.
Project Show
1,pre-sale support:
Normally we suggest you paint our standard color , but we can supply customization paint service by paid.
2,after-sale service:
Warranty:1 year for machinery,6 months for electrical.
For mechanical parts, our guarantee duration is 12 months. If the part is broken within this period, we will send the spare parts immediately to the client for repairing.
3,technical support:
Normally, we send our engineer(s) to supervise the installation and commissioning. The buyer need to prepare the operation staff to implement it. BORETECH is able to send mechanical engineer, electrical engineer and operation engineer. The operation engineer is to help the buyer's labors to know how to operate the washing line and get the best efficiency.
BoReTech is one of the major supplier of PET bottle recycling system in Asia . We uses the around 30 years of fiber making and bottle recycling experiences to manufacture PET Bottle recycling machine and configure Pelletizing line, Polyester Staple Fiber line, POY line and Bottle to Bottle Line. At present, we have supplied about 170 sets plant for more than 30 countries. Our customers in the US, Japan, EU manufacture food grade rPET resin for such well-known brand owner's such as Coca Cola, Niagara Bottling, Nestle, etc.
Boretech can help our customers to make right configuration of the machinery, and find the right position in the industries. The most important value is that we can help our customers to minimize the learning cost and to avoid making any mistake during investment.
FAQ
Q:How do you assistant to install the machine on worksite?
A: Normally, we send our engineer(s) to supervise the installation and commissioning. The buyer need to prepare the operation staff to implement it. BORETECH is able to send mechanical engineer, electrical engineer and operation engineer. The operation engineer is to help the buyer's labors to know how to operate the washing line and get the best efficiency.
Q:What do you guarantee on China local brand for bearing and gearbox?
A:For mechanical parts, our guarantee duration is 12 months. If the part is broken within this period, we will send the spare parts immediately to the client for repairing.
Q:Can I use machine with different color?
A: Normally we suggest you paint our standard color , but we can supply customization paint service by paid.
Q:What about packaging and transshipment?
A: It depends on capacity and equipment selection. For example, the line with 3 ton/h input capacity, there will be 15x40'HQ containers from China, and 1x40'HQ container from Taiwan. The crusher and crusher blade are made in Taiwan with excellent quality. For some special case, if the client requests the batch type bottle prewashing machine, we will need one flat rack for loading that.
Q:What is the delivery of the line?
A: 3~4 months after receipt of the down payment and L/C.
Q: How far is your factory from Shanghai?
A: It takes 1~1.5 hours from Shanghai airport to Boretech according to traffic situation.
