Product Description

Product Description
Biomass Sawdust Pellet Machine Rice Husks Wood Chips Wood Pellet Machine for Sale

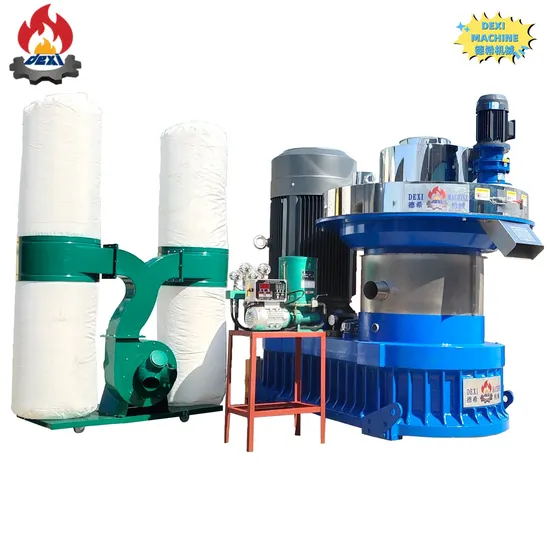

Introduction: XGJ series biomass pellet machine is different from other horizontal ring die pellet machine, this machine with vertical structure, easy for biomass materials feeding, big pressure, big capacity and working stable. It is the high efficiency equipment for biomass pellet making.

This biomass pellet machine is good at press low adhesive and hard molding materials, such as press the rice husk, hard wood sawdust, sunflower seeds husk, peanut shell, wood bark and other wood waste, it also can press different kind of straw and agriculture waste.
This biomass pellet machine is widely using in biomass pellet making industry and other pellet forming industry.
Main superiorities for wood pelletizer: 1. Vertical ring die structure, feeding vertically, easy heating dissipation, long time running continually.

2. Ring die fixed, the roller rotates in the ring die, so no deflection, no shaking, machine running more stably.

3. Double-layer stainless steel ring die, up and down side. One ring die can be using 2 times by turn it over. Cut down operating costs.

4. With gear box lubricating system and the roller bearing auto-lubricating system, the machine can operating continuity. (Can 24 hours no stop working).

5. Whole based as gearbox, inside gears size big, and gear modulus increased, make the gearbox strong and working stable. We give 3-year guarantee for this type of gearbox.
Product Parameters
The mainly parameters for the wood pelletizer:

Model	Power (kw)	Capacity(kgs/h)	Weight(kgs)	Dimension(mm)
XGJ460P	55+0.37+0.37+2.2	500-800	4300	2300x1200x1500
XGJ560P	90+1.5+0.55+0.37+2.2	1000-1500	4700	2400x1250x1800
XGJ560P	132+1.5+0.55+0.37+2.2	1500-2000	5400	2400x1250x1900
XGJ700P	160+3+0.55+0.37+3	2000-3000	6200	2600x1400x2100
XGJ850P	220+3+0.55+0.55+3(3-850)	2500-3500	9600	3100x1700x2300
XGJ850P	250+3+0.55+0.55+3(2-850)	3000-4500	10000	3100x1700x2300

Detailed Photos
Innner Structure:
1-Vertical 2 layer ring die, one ring die can using 2 times
2- Adjustable rollers, easy setting the gaps between roller and ring die.
3- Rotating Joint, the grease can be inject into the roller bearing continually.
Machine structure:
1-The motor is vertically installed on the machine base, so the machine is more stable and there is no shaking during operation.
2-The gearbox is set on the machine, connected with the motor shaft and the vertical shaft of the machine, and efficient power transmission.
3-Machine vertical structure, easy material feeding, suitable for biomass particle manufacturing
Right Elevation Back Elevation Left Elevation
Structure Diagram

Circulating Cooling Machine On Working Automatic Lubrication System Oil Pipe Cooling Fan
Advantages of vertical ring die pellet machine: anti shake, small size, low energy consumption, high efficiency, low noise, strong fatigue resistance of the machine, continuous production, high output and excellent economic benefits. Customer Interview
We have installed many complete particle production lines at home and abroad, such as particle production lines in Malaysia, India, Indonesia, Vietnam and Myanmar....
Visit Your Company

1.Welcome to visit our company for more in-depth communication on the machine.
2.Our customers have visited us before.
3.There are many photos here.
4.I hope you can have a rough understanding of us.
Company Profile
Shandong Dexi Machine Co., Ltd is professional supplier for the biomass pellet machines and complete pellet production line. our products involve , wood chipper, wood sawdust making machine, hammer mill, drum rotary dryer, pellet making machine, pellet cooling machine, pellet packing machine and other related auxiliary equipment.

We also provide design, technology supports, machine inspection service, etc. Cooperating with different manufacturers and research centers, we provide the pellet making machines with outstanding quality. We have a group of experienced experts and outstanding engineers who do provide the professional service delivery and installation. Based on the client's specific requirement, we also accept customize design and machine producing order. Through the years established good working relationship with some reputable organizations both at home and abroad with outstanding goodwill.

Any interesting for the wood pellet making machines, please feel free to contact us.
