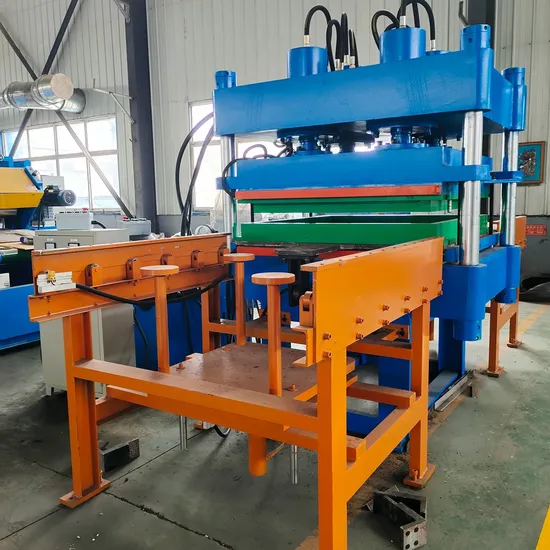

Rubber Door Mat Vulcanizing Press Machine

Product Description

Technical Parameter

Model	XLB-D350X350	XLB-D400X400	XLB-D600X600	XLB-D750X850	XLB-D900X900	XLB-D1000X1000
Total Pressure	0.25mn	0.50mn	1.00mn	1.60mn	2.50mn	3.50mn
Platen Size	350X350mm	400X400mm	600X600mm	750X850mm	900X900mm	1000X1000mm
Daylight	125mm	125mm	125mm	125mm	125mm	125mm
Working Layer	2	2	2	2	2	2
Piston Stroke	250mm	250mm	250mm	250mm	250mm	250mm
Heating Way	Electric	Electric	Electric	Electric	Electric	Electric
Platen Unite Area Pressure	20kg/cm2	31kg/cm2	28kg/cm2	25kg/cm2	31kg/cm2	31.7kg/cm2

Model	XLB-DQ1200X1200	XLB-DQ1300X2000	XLB-DQ1200X2500	XLB-DQ1500X2000	XLB-DQ2000X3000	XLB-DQ1400X5700
Total Pressure	3.15mn	5.60mn	7.50mn	10.00mn	18.00mn	28.00mn
Platen Size	1200X1200	1300X2000	1200X2500	1500X2000	2000X3000	1400X5700
Daylight	200mm	400mm	400mm	400mm	400mm	400mm
Working Layer	2	1	1	1	1	1
Piston Stroke	400mm	400mm	400mm	400mm	400mm	400mm
Heating Way	Electric or Steam	Electric or Steam	Steam	Steam	Steam	Steam
Power	3kw	8kw	9.5kw	11kw	11kw	11kw

Features ApplicationRubber vulcanizing press applies to all kinds of rubber (natural rubber, EPDM rubber, NBR rubber, synthetic rubber, silicone rubber ext. ) plate vulcanizing and compression molding.This machine can be used to make O ring, sealing parts, oil seal, auto parts, rubber crash pad, rubber air spring, key board, medical rubber parts, rubber bottle stopper, silicone wrist band, water-stop tape, bridge support/bridge bearings, rubber cable, electronics insulators etc.
Packaging & ShippingDelivery and packing
Packed in strong wooden case suitable for sea freight.
Lead time
30 days after received the prepayment.
Payment
1.The deposit is 30% of whole price as down payment, Then the balance 70% of whole price should be paid before delivery by T/T.
2.The price contains carriage and packing charge in China.
Quality Guarantee
1. The quality guarantee period is 2 year after delivery.
2.Under guarantee period, our Company will change or repair the damaged equipment for free if they have deficiency of design or manufacture.
Exhibition&Certificate
Service
Company ProfileQingdao Sea King Machinery Co., Ltd. is located in the west coast of qingdao,is one of the most famous rubber machinery manufacturers.We have been specializing in rubber machinery for more than 30 years. The company has passed ISO9001:2008 certification,ce certification,sgs certification,france bv certification. The main product of our company: internal mixer, two roll mixing mill ,extruding equipments,calendar equipments,cutting machine,cooling equipment,vulcanizing equipment,and reclaimed rubber production line,rubber sheet extrusion line,motorcycle&bicycle tube &tires production line,conveyor belt production line, v belt production line,rubber recap equipment and so on. Besides, we also can base on clients' requirement to manufacture and design non-standard rubber machinery. With the rapid development of our company, qingdao sea king industrial limited was founded. The company has established good commercial relationship with many companies in china by joint venture holding. Products include rubber machine ,raw rubber material rubber products and so on. Our company has import-export rights. the products have been exported to many countries and districts around the world, such as america, france, canada, dubai,australia,peru,brazil,ecuador ,southamerican,southeast asia, and the middle east. By the advanced quality and service, our products have gained the praise of domestic and foreign customers. We strictly follow the policy"to satisfy our clients' need with quality work ,advanced technology,optimized design solution and excellent service".
FAQQ: Are you Factory or Trading company?
A: We are a factory with over than 30 years of experience in Rubber Machine.
Factory Add:No,210 Tieshan Road, Jiaonan , Qingdao , China.
Welcome you come to visit our factory,we will arrange schedule and book hotel for you.
Q: Why customer choose SeaKing Machinery?
A: 3-5 Years warranty; Brand of strength; 30 years experience; Perfect Quality Management System,All prats Self-producing,No middlemen in the production process.
Q: What's your delivery times?
A: The delivery time is 20-45 days after order be confirmed. For the exact date,please check with our sales team.
Q: What's your After-sale Service?
A: 3-5 Years warranty, 30 peoples After-sales team keep working in 24 hours,Provide overseas service.
Q: What's your Payment terms?
A: 30% T/T deposit in advance, then balance the rest 70% before loading.
