100ml-20L Servo Plastic Beverage Bottle Blow Molding Machine /Water Jar Blower Moulding Making Pet Preform Blowing Machine Price

Product Description

Product Description

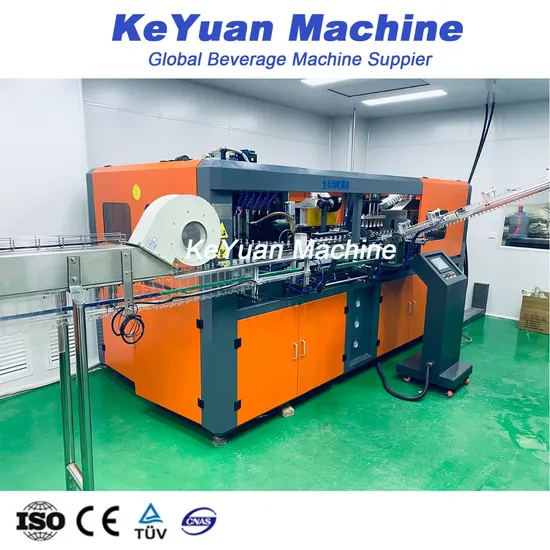

Bottle Blowing Machine
KM-A6S Full automatic blow molding machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.
1. Full automatic running with theoretical output capacity up to 9600 bottles per hour for 0.7L volume using four-cavity blow mold2. Patented loading system carries the preform automatically with less moving parts.3. Suitable to produce 0.1 ~ 2.5L Standard neck PET container4. Advanced PLC control system with a use-friendly control panel5. Built-in memory of the PLC saves all the sets of numbers required to produce different size bottles.6. Multiple Reliable sensor systems monitors the machine's automatic function7. Equipped with special designed air storage unit8. Powerful heating unit with precision controller and convenient adjusting mechanism.9. Cooling system that provides a perfect cooling result10. Compact design that saves space11. Simple installation & startup operation
Product Parameters

Model		Bottle Blowing Machine
Productivity		Depend on bottle design	9600PCS/H
Body diameter		20mm-100mm
Height		50mm-350mm
Neck diameter		15mm-38mm
Cavity		6 cavities
Mold thick		240mm
Mold		500*500mm
Electrical source power		380v 3Phase /220v 3Phase 50/60HZ	can be customized
Rated Power		49kw
Really use power		14kw
LP air compressor		1.6m3/min 1.0MPa 1set (15KW)
HP air compressor		1.0m3/min 3.0MPa 2sets (each set 11KW)
Air dryer		2.0m3/min 3.0MPa 1set

Details Of Machines
1.1New Auto Preform Unscrambler System
Adopts one-way preform-feeding structure and preform-separating by servo motor structure which solve the preform block and
abrasion problem.
*There are two photoelectric sensors to control preform-loading motor and preform-separating cylinder that will
warn the operator to add the preforms into the hopper when lacks preform instead of stopping the machine.
1.2New Heating System
*Perfect heating system design decrease power consumption.
*Special oven design helps power saving and easy maintain.
*Each lamp position and temperature can be adjusted.
*Cycle air-cooling system keeps the oven temperature constantly.

1.3The Application Of Servo System On Main Transmission
The transmission adopts servomotor for positioning that can orientate the preform-heating base quickly, accurately and steadily
when the machine starts and running.
1.4 Servo Technology Innovation On Clamping System & Stretching
*Adopts servo motor to drive the two cranks to control the clamping system which can shorten the mold-clamping time and improve
productivity, and also solve the swelling mold and big joint line problem with the effect of pressurize plate.
* Servo motor using for stretching to ensure the bottle blowing speed faster and more stable bottle quality.
Relevant Machines
Drinking Water Treatment Equipment
Process: Spring-raw water booster pump, mechanical filter, precision filter, active carbon filter, sodium exchanger, RO machine/hollow fiber ultrafiltration device, Store tank, UV sterilizer, ozone generator and other equipment.
It can effectively get rid of muddy organic, iron, manganese and oxide, filter suspended substance, colloid, remained oxygen of micro-organism and some of height-metal ion in the water. This water treatment equipment can also reduce hardness of water to make it all specifications of the water quality fully meet the state fresh water standards, even that of standard of mineral water,
Bottle Blowing Machine
Automatic PET Bottle Blowing Machine is suitable for blowing PET bottles of various shapes, volume from 100 ml to 2000 ml, wide application for blowing mineral water bottles, soda bottles,cola bottles.
Advantages
1.New double crank four pull-up bar clamping structure, cross balance fixed slide.
2.Sealing, stretch adapts parallel bars (CIS) design, combined, good for products molding.
3.Programmable PLC controller automatically control, microcomputer touch screen convenient operation.
4.Bottle embryo heated by infrared, controllable constant pressure control, so as to achieve the best blowing precision.
Hot Melt Glue Labeling Machine
This hot melt glue plastic bottle label applicator is widely suitable for different material of container and label. The label cost is comparatively lower, it can meet the requirements of those users who have diverse kinds of the containers. It is the most economical models in cost to make mass production and intergrated operating. The equipment has massively used modularization design concept to make it easy and simple for users to change the bottles.
Laser Date Printer
This machine combines advanced laser galvanometer marking technology, imported RF excitation and sealed CO2 laser and real-time marking software control technology. It uses laser marking technology on the production line to mark and mark fast moving products. The writing is permanently erasable and can meet the needs of various production lines. It is suitable for online marking of paper, plastic, non-metallic materials and painted metal packaging materials.
Automatic shrink wrap packing machine
Automatic shrink wrap packing machine In the packaging machinery industry, the film wrapping machine is the abbreviation of the wrapping film packaging machine,
sometimes called the winding machine and the wrapping machine.
Cap injection molding machine
It also known as injection molding machine or injection machine. It is the main forming equipment for plastic products which are made of thermoplastic or thermosetting plastic by using plastic molding mould. Divided into vertical,horizontal, all electric.The plastic injection molding function heats the plastic, and exerts high pressure on the molten plastic, so that the injection molding cavity is filled with the mold cavity.
Our Service
Factory Design Product Design
Provide OEM Factory Design According to your facotry Design your dreamed final products
Before Sales
1.Answer your any question on us with in 24 hours.
2.Supply all information you required.
3.Help building reasonable factory
4.Machines video for reference.
5.Welcome to visit factory.
After Sales
1.Update production progress each week.
2.Sending machines pictures on production .
3.Machines testing running over 8 hours, and sending testing videos.4.engineer arranged to install machines.
5.Spare Parts provided.
Parts Of Successful Project
Beverage Mixing System
Capacity:3000L/H All the equipments are customized by tech requirements.
5 Gallon Water Production Line
Capacity:1200 Barrels/Hour Complete 5 Gallon recycled Barrel water production line.
Carbonated Juice Packing Plant
Capacity:20000BPH Carbonated juice pet bottle filling plant.
Pure Water Treatment System
Capacity:20000L/H Designed according to raw water quality.
KeYuan Clients
FAQ
1.Q:Are you a factory or trading company? A:We are a factory, professional water treatment equipment manufacturer and small bottle water production line with about 10 years experience. Factory covers an area of 6000 square. There have been more than 30 countries use our products.
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in sanxing yucai road.Jinfeng town,zhangjiagang city,jiangsu province,china. about 2 hours away from podong Airport .we will pick you up in the nearest station. All our clients, from home or abroad, are warmly welcome to visit us !
3.Q:How long is the warranty of your equipment?
A:2 years warranty after receipt check upon delivery.And we will comprehensively provide you all kinds of technical
support services in after-sale !
4.Q:What is the features of our company?
A: We provide turnkey project for customers, including pre-sale and after-sale service; complete production line equipment
supply;bottle design; layout programs provide; or provide auxiliary materials purchasing agent supplier information; equipment overseas installation and commissioning; operator training;etc
Give me the basic information about you want:
1.what kind products will you produce: water, juice, with gas or others.
2.what is your capacity you want: that how many bottles per hour you want
3.what kind of the bottle: pet bottle or glass bottle; bottle volume; bottle sharp. bestly give me the bottle picture.
4.the single machine or the whole line.
So that I can make suitable proposal for you.
