Q1325 Big Bore CNC Pipe Threading Lathe Heavy Duty Cutting Lathe

Q1325 Big Bore CNC Pipe Threading Lathe Heavy Duty Cutting Lathe

US$23,000.00-26,000.00 1 Set (MOQ)

Basic Info.

Model NO.
Q1325
Processing Accessory
Metal
Guide Rail
Horizontal Guide Rail
Tool Holder
4 Station
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
Normal Precision
Certification
GS, CE, ISO 9001
Condition
New
Max Diameter Swing Over Bed
800mm
Max Dia. Swing Over Cross Slide
520mm
Width of Bed
550mm
Spindle Bore
255mm
Pipe Threading Range
65-250mm
Max.Length of Work-Piece
1500mm
Maximum Machining Length
1250mm

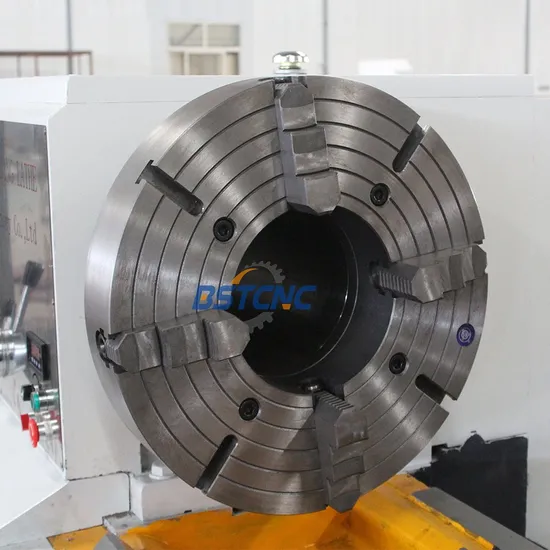

Chuck
4-Jaw Chuck(630mm)
Main Motor
11kw
Gross Weight
6t
Net Weight
5.5t
Transport Package
Iron Sheet Packaging
Specification
13CBM
Trademark
BST
Origin
China
HS Code
8458190000
Production Capacity
1000/Year

Packaging & Delivery

Package Size
385.00cm * 185.00cm * 175.00cm
Package Gross Weight
6000.000kg

Product Description

Product Description
This series of pipe thread lathes is mainly used to process internal and external threads of pipes, and they can also be used as an ordinary lathe to process the outer circle, inner hole, and end face of shaft, pipe, and disk parts. This machine tool is widely used in the petroleum industry, which can process and repair parts such as drill pipes, joints, and casings. It is also used for the thread processing of various pipes and drill pipes in industries such as coal, chemical engineering, water conservancy, and geological exploration.
Product Parameters
ITEM UNIT Q1325
Max Dia. swing over bed mm 800
Max Dia. swing over cross slide mm 520
Max.length of work-piece mm 1500
Maximum machining length mm 1250
Pipe threading range mm Φ65-250
Width of bed mm 550
Spindle bore mm 255
Spindle center height mm 400
Power of spindle motor KW 11
Range of spindle speed mm VF2 steps
15-100/100-350
Z axis feed grade /range mm/r 32/0.095-1.4
X axis feed grade /range mm/r 32/0.042-0.7
Carriage rapid traverse speed mm/min 3740
Cross slid raid traverse speed mm/min 1870
Metric thread grade/range mm 22/1-15
Inch thread grade/range T.PI 26/14-1
Traverse of cross slide mm 420
Max. Traverse of turret mm 200
Tailstock quill travel mm 250
Tailstock quill Diameter mm 100
Tailstock quill taper Morse N0.6
Chuck Φ630
4-jaw chuck
Overall dimensions(L*W*H) mm 3750×1750×1550
Machine weight T 5.5
Gross weight T 6

Standard configuration: Optional configuration:
-With 4 jaws double manual chuck (630mm) -Steady rest ,follow rest , back steady rest;
-With 4 station manual tool post and manual tailstock -Digital readout ;
-With Whole casting bed -Processing length: 2000mm,3000mm,4000mm;
-Voltage 380V/220V/415V ,3 Phase
