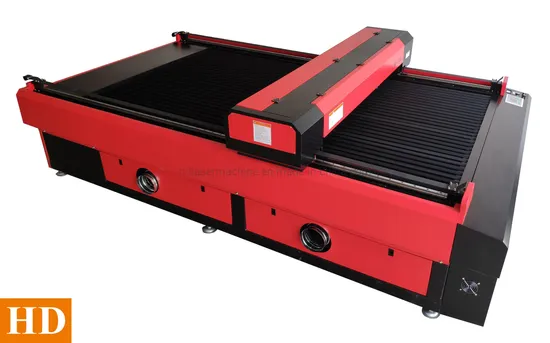

Placa Plana Laser Cortar Maquina 1300X2500

Product Description

Machine Feature:
1. The machine body applied with most solid design which can ensure no deformation long time operation and transportation.
2. The machine fixed with LEADSHINE brand stepper motor and driver, linear guide and strong belt running system.
3. Adpots with adanced DSP control technology, fixed with high quality electronic parts, ensure high cutting engraving speed,
high accuracy and high stability, long time usage life.
4. Applied with imported lens and reflector mirror, ensure high laser power efficiency.
5. The machine connect with computer by USB/ INTERNET wire or U disk directly.
6. With water cooling system, exhaust fan and water pump, etc.
7. It have cutting and engraving function, it have half-cut function.
8. Machine size: Lx W x H = 331 x 205 x 109 cm
Laser cutting machine specification:

Wave Length(µm)	10.6
Optional Power ( w )	130W, 150W, 300W
Cooling	Water Cooling
Working Area ( mm )	1300X2400MM, 8 X 4 feets
Min. Line width ( mm )	0.15 ~ 0.3
Working speed ( mm/M )	0 ~ 36
Repeat position precision (mm)	±0.05
Compatible format	PLT, DXF, AI, DST, DSB, JPG, BMP, GIF
Power	Single phase, AC220V ± 10%, 50/60HZ
Dimention ( cm)	340x210x125
Weight	1000 kgs
Working environment	0 ~ 40ºC, clean and no-dust room, without water
total machine power(w)	<2500
protection class	IP54
Laser safety class	4 class

MACHINE DETAILS
Applicable industry:
Advertising, signage, gifts, garments, shoes, bags, curtain, model, home furnishing, decoration, label, electronical etc industry,
Suitable materials:
acrylics, wood, paper, bamboo, fabric, cloth, leather, shoe bottom, woollen, plastic, ABS, resin, ceramic, and other nonmetal materials.
MAIN MACHINE ACCESSORY

FACTORY INDRODUCTION:
Professional laser machine factory, have more than 10years experience in production of laser equipment.
Applied with high quatiy spare parts, with strict requirement of installation, tuning and testing, that make sure every machine set stabl, long time usage life.
We supply full series of laser cutting machine, CO2 marking machine, fiber marking machine etc.
Aftersales service
1. Whole set machine with 1 year warranty, except consumable parts as laser tube, lens etc.
Lifelong maintainance and repairing support service.
2. Profesional technical team support by email or online timely, free software update.
3. If need, we can send technician to cuostomer local place to supply service and support.
