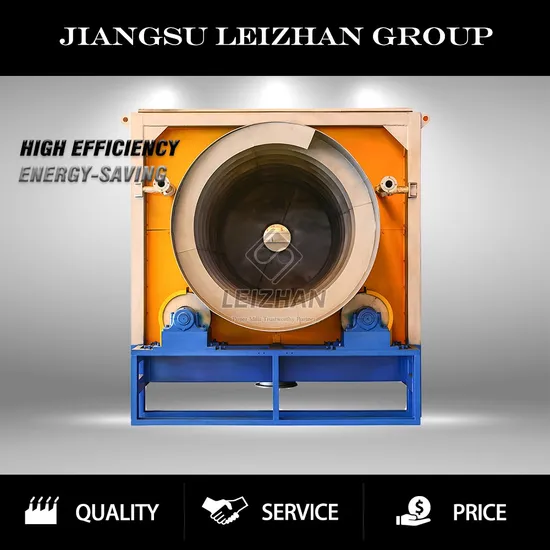

Paper Making Production Line Pulp Rotary Trommel Drum Screen Separator
| US$2,500.00-32,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
LZDS
Usage
Packing Paper Machine
Nominal Volume(m³)
Customized
Impeller Diameter (mm)
Customized
Rotating Speed of Impeller (r /min)
Customized
Certification
CE, ISO, CCC
Condition
New
After-sales Service
Online and at Site Support
Drum Size
1000*4200~2500*5000
Flow
2~10 L/Min
Power
5.5~18.5 Kw
Working Type
Continuous Pulping and Discharging
Transport Package
Standard Seaworthy Package
Specification
Customized
Trademark
LEIZHAN
Origin
China
HS Code
84399100
Production Capacity
50000sets/Year
Packaging & Delivery
Package Size
300.00cm * 120.00cm * 150.00cm
Package Gross Weight
2000.000kg
Product Description
Product Description Drum Screen Separator is mainly used to remove big-size light impurities in waste paper stock preparation system. Its advantages are good screening effect, low power consumption, simple structure and easy maintenance.Structure and Principle
basket Screen is made of screen basket, machine bracket, gear motor drive device, belt drive device, riding wheel device, catch wheel device and spray pipe system, etc. Helical blades inside basket screen basket can transfer impurities. Light impurities along with pulp enters into screen basket from inlet pipe, in the effect of gravity, fine stock discharged through accepted pulp opening while light impurities transported by helical blade to the tail of screen basket then discharged. Spray system is installed on two sides of screen basket to clean the stock in impurities and keep screen basket unblocked.
Detailed Photos
Product Parameters
| Model | ZST1A | ZST2A | ZST4A | YTS1500 |
| Drum Diameter: (mm) | φ1000 | φ1500 | φ2000 | φ1500 |
| Output: (L/min) | 3000-5000 | 6000-8000 | 9000-12000 | 8000-10000 |
| Hole Diameter: (mm) | Φ6,φ8,φ10,φ12 (selected by customer) | |||
| Spray Water Pipe | Diameter: (mm) | φ42 | φ48 | Φ60 |
| Water Flow: (L/min) | 100-300 | 150-400 | 200-500 | |
| Motor | Model | R77-4P-4 | R77-4P-5.5 | R97-4P-11 |
| Power: (KW) | 4 | 5.5 | 11 | |
