Large Sand Blasting Machine, Customized Abrasive Blast Cabinet

Product Description

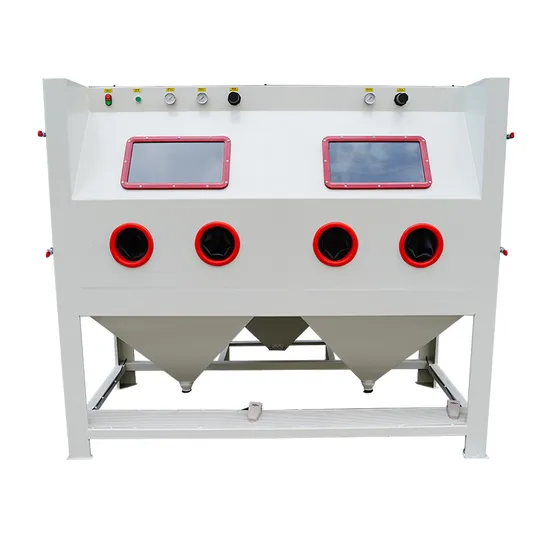

Large Sand Blasting Machine, Customized Abrasive Blast Cabinet
Kafan Large Sand Blasting Machine is designed with double sandblasting positions, supports 1 - 2 users to operate simultaneously, large internal space is ideal for oversized workpieces. This sand blasting machine is suction type, which uses the compressed air flow in the blast gun to produce negative pressure. The abrasive is sucked into the gun through the hose and then blasted from the nozzle to the workpiece surface. The blasted abrasives will impact and grind with the surface, whose action removes the impurities, rust, oxide layer orother contaminants from the surface.
Specifications of Large Sand Blasting Machine

Model:	KF-2010-2
Working Dimension	Length2000 * width1000 * Height850mm
Overall Dimensions:	Length2100 * width1500 * Height1700mm
Power:	220V/380 50Hz/60Hz (customized)
Body plate thickness:	2mm
Cabin lights	220V 13W anti-riot lights
Motor Power	0.75kw
Work piece sandblasting gun:	2 pieces
Compressed air source:	3-8bar (kg / cm2)
Flow	0.6-1.0 cubic meters / min

Large Sand Blasting Machine Features
1. Cartridge filter remove system collects dust effectively, ensures dustless air discharged to the atmosphere which is environmentally friendly.
2. Pressure regulators, filters, solenoid valves and other major components are high-quality brand products, the quality can be guaranteed.
3. Blasting gun is made of aluminum alloy casting with boron carbide nozzle, features durable and long-lived.
4. There is an abrasive funnel at the bottom of sandblast cabinet in order to recycle used abrasives for reducing consumption.
5. Foot pedal switch controls sandblasting gun, which facilitates the operation and raises safety level.
Why choose Kafan Sand Blasting Machine? 1. Kafan sand blast cabinets are built in-house, directly monitor the quality and control the production cost.
2. Each blast cabinet is tested for well performance before delivery, and strictly and strongly packed
3. Imported main components, 2mm steel plate welded body, anti-rust coated surface, all ensures durability and long lifespan.
2. One year warranty, any quality problems with the parts, we will provide replacement for free. (not including wearing parts)
3 Build wearing parts warehouse to facilitate customers who need replacements, offer customer equipment maintenance knowledge.
4. Free technical consulting services before and after sales, and provide equipment update information.
Hot Sale Products
Note: We provide Custom Design service. The size of working chamber, the blast gun quantity can be made as customer's requirements. The conveyor can be chosen from belt type, roller type, etc. About Kafan
