Basic Info.
Linkage
Three Point-Mounted
Transport Package
Iron Frame Box
Specification
CE, RoHS, SGS, GMP
Production Capacity
10000PC/Year
Product Description

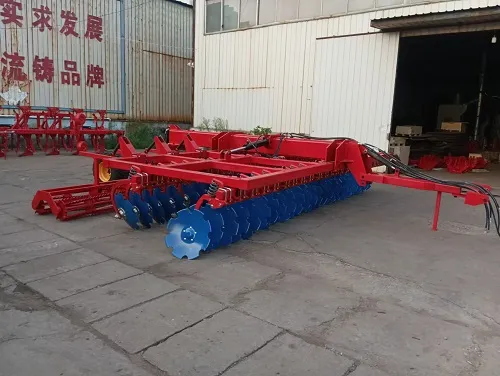

Pipe disc plough
Agricultural machinery one way disc plows are mainly used for tillage on dry cultivated or fallow land, especially on high yield's manure land, wheat and rice stubble fields. They have the characteristic of small resistance and easy operation etc.
| Model | | 1LYX-230 | 1LYX-330 | 1LYX-430 |
| Working depth | mm | 250 | 250 | 250 |
| Working width | mm | 600 | 900 | 1200 |
| Qty. of disc | pcs | 2 | 3 | 4 |
| Dia. Of disc | mm | 660 | 660 | 660 |
| Weight | kg | 360 | 410 | 540 |
| Matched power | hp | 40~50 | 55~80 | 90~120 |
| Linkage | | Three point-mounted |
