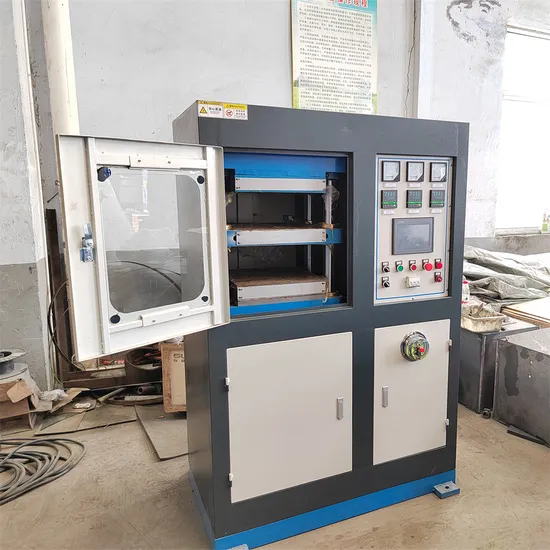

Laboratory Rubber Compression Molding Press with Temperature Controller

Product Description

Product Parameters Lab Rubber plastic vulcanizing press is applicable to R & D in laboratory.Put the raw materials into the mold between the electric boards and set up certain pressure and temperature. The raw material are formed into test specimen for test use. This machine features compact size,complete functions, stable tempeture, low noise,easy opention and material saving.

Capacity selection	10,20,30,50 ton or designed
Temperature control	normal temperature~500ºC
Precision of the control temp	+ -1ºC
Heating Mode	Electrical Heating
Timepiece	LED 0~99(min)
Area of electric board	300*300mm designated
Area of cooling plate	300*300mm designated
Cooling mode	Compressor water cooling or running water cooling
Plate spacing	0~90mm designated
Volume	1000*600*1500mm
Weight	About 650kg
Power supply	3Ø, AC380V, 20A or Customized

Product Description 1.This machine is applicable to R & D in laboratory because of its compact size, complete functions, stable temperature, low noise, easy operation and material saving.
2.High-precision temperature sensor, together LED temperature controller, built-in dense-point heating wire and tubular condenser, has the temperature range from normal temperature to 300ºC.
3.Imported KDB electric board features high-temperature resistance, abrasion resistance, fast thermal transmission and strenghthen against deformation.
4.Single heating can be designed according to the requirements.
5.Oil hydraulic system: the pressure range:50 ton, the maximum stroke of the cylinder: 180mm.
