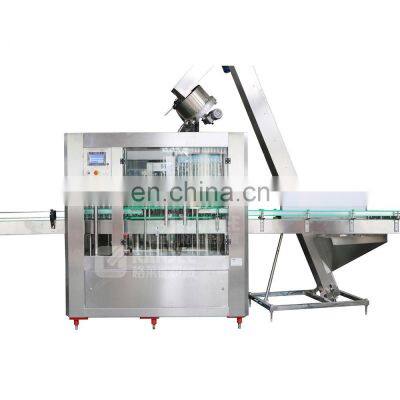

Automatic Glass Bottle Carbonated Drink Filling Machine
Product Description
Brief introduction of Automatic Glass Bottle Carbonated Drink Filling Machine :
1. This carbonated drink filling machine used move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
2.The parts contact with product is made of quality SUS, anti-corrosive, and easy to clean.
3.The capping head adopts constant torque magnetic device to guarantee capping quality and impact cap.
4. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough.
5. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
6. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
7. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
8. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.
9. Adopting clamping bottle neck way to wash bottle mouth and avoid touching screw mouth, adopting clamping bottle neck way in the whole conveying process. When bottle type changes,you only need to change the board related with bottle diameter.
10.The main electric components, frequency, photoelectric switch, proximity switch, electric control valves all adopt imported components, which can ensure the quality performance.
11.The control system has many functions, such as control producing speed, cap shortage detection, bottle block automatic stop and production counting etc.
12.The electric components and pneumatic components are all introduced from world famous brand products.
Machine picture:
Washing Part
Filling Part
Capping Part
Cap Loader
Main technical data:

Model	Washing head no.	Filling head no.	Capping head no.	Production capacity(500ml)	Overall size(mm)	Weight(kg)	Power of main motor (kw)
8-8-3	8	8	3	1500-2000	1700*1500*2100	2000	1.8
14-12-4	14	12	5	3000-4000	2000*1760*2350	2500	2.0
16-12-6	16	12	6	5000-6000	2100*1800*2400	2800	2.2
18-18-6	18	18	6	7000-8000	2300*1900*2400	3000	3.5
24-24-8	24	24	8	8000-10000	2900*2100*2400	3500	4.5
32-32-10	32	32	10	12500-15000	3100*2100*2650	4300	5.5
40-40-10	40	40	10	15000-18000	4350*2880*3200	6000	5.5
50-50-12	50	50	12	20000-23000	4850*3800*3200	7500	7.5
