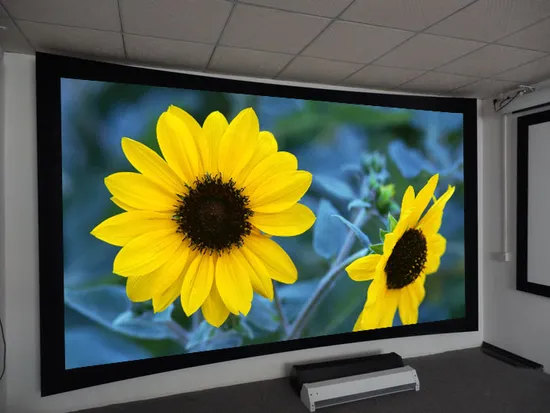

16: 9 200" Home Cinema Large Projection Screen Matte White

Product Description

Product Description
Curved Fixed Frame Screens are perfect for cinemas or simulation application. Using an advanced aluminum structure with the goal of creating an image made to fit the natural curve of the human eyes; this screen brings high definition viewing another level.
Curved Screen is a proprietary screen technology solution designed for in particular for simulation and training application. Curve screen can come in different radius, various surface finishing.
The bend focal length and thus creates an image for viewer that is a near accurate match to the image. The lens of a projector in designed to be spherical shape.By changing the screen's horizontal arc,the distance between each point on the curved frame screen to the projector is near equivalent,making the large image uniform and perfectly focused.
Product Features
Features of Curved Fixed Frame Screen
1. Aluminum frame with black velvet borders to absorb over projected images
2. Special angular connections, frames can be assembled
3. Easy to attach screen fabric to the frame by spring system
4. A sense of presence in the Displaying content is achieved
5. An immersive around visual experience occurs
6. The curve design ensures that light travels the same distance to reach any point of the screen thus creating a properly proportioned image.
7. Ease of installation, wall mounted come with brackets
8. Floor stands can be available for large frame screens
9. 8Cm,10Cm,15Cm width frame for choose
Applications
Main applications
Home Cinema,Digital Cinema,Business presentations,Simulation,Entertainment venues etc
Screen fabric
Fabrics are available on our Curved Frame Screen
1. HD Flexible White
2. HD Flexible Grey
3. 3D Flexible Silver
4. HD Flexible Rear Gray
5. Perforated White
6. 3D Perforated Silver
7. Acoustically Transparent Woven
Product Parameters
Screen Parameter

Model No.	Size	Format	View Area	Packing Size	Gross Weight
			W x H	LxWxH
	Inch		Unit: mm	Unit: mm	Unit: Kgs
CH84	84"	16:9	1860 x 1040	2200x210x160	19
CH92	92"		2030 x 1150	2380x210x160	20
CH100	100"		2210 x 1240	2560x210x160	23
CH106	106"		2350 x 1320	2700x210x160	24
CH120	120"		2650 x 1490	3000x210x160	25
CH133	133"		2950 x 1660	3280x210x160	33
CH150	150"		3310 x 1860	3670x210x160	38
CH180	180"		3980 x 2240	4330x210x160	45
CH200	200"		4420 x 2490	4770x210x160	53
CW86	86"	2.35:1	2000 x 850	2360x210x160	19
CW98	98"		2300 x 980	2660x210x160	24
CW113	113"		2650 x 1130	3040x210x160	25
CW128	128"		3000 x 1280	3350x210x160	30
CW140	140"		3300 x 1400	3650x210x160	38

Size and specifications are subject to the actual product size, will be changed without notice
