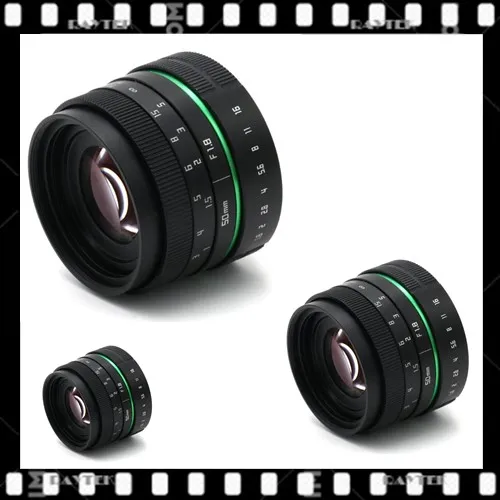

Industrial Lens/Industrial Camera Lens/CCTV Lens/Machine Vision Lens/Ar Lens/Telecentric Lens

Product Description

General Introduction:Raytek commonly used industrial lenses are: CCTV(Closed Circuit Television) lens (field of vision can be adjusted arbitrarily, suitable for large field of vision); Telecentric lens (high accuracy of the object, no perspective error); Macro lens (TV low distortion - small size, light weight, good vibration resistance); Line scan lens (low distortion, small shadow, good anti vibration); Zoom lens (the focal range of several fixed focus lenses, which can change the focal length at any time without changing the lens); Collimating and beam expanding lens (which can convert the transmitted light in the fiber into collimating light (horizontal light); Ultraviolet lens, infrared lens and military lens, etc.
Products Name: Industrial lens/Industrial camera lens/CCTV lens/Machine Vision Lens/AR Lens/Telecentric lens
Alias: Industrial lens,Industrial camera lens,CCTV lens,Machine Vision Lens,AR Lens,
Car radar lens,Intelligent car vision lens, Car vision lens, Smart car lens,Intelligent machine lens
, laser beam collimating lens, laser beam expanding lens,Laser collimating lens, etc
Main Applying:

Applying Fields

1).Surveillance work and distance education system. 2).mechanical equipment visual positioning, semiconductor detection, wafer detection; IC wafer, LED wafer, setting crystal, fixing crystal, dispensing positioning; LCD detection, LCD module fog / cog; Polycrystalline silicon, monocrystalline silicon, wafer scribing, screen printing; Capacitive screen panel partition, screen printing; Machine vision experiment application; Positioning for industrial use. 3). Laser ranging system

Main Highlights:
The full name of Raytek CCTV lens is closed circuit television lens
The lens used can also be called surveillance lens, which is generally used in some advanced video surveillance cameras. The head is also dynamic and automatic. The CCTV lens produced by Raytek has high-definition imaging, and the middle sharp, good color restoration, lomo / "moving axis" shooting effect, beautiful appearance, good handle and other characteristics. Widely for a large number of different types of surveillance work and distance education system.
Raytek Telecentric lens has high resolution, low distortion, far greater depth of field than ordinary lens. Ultra compact design expands the application range of telecentric lens. It is suitable for high precision industrial machine vision inspection.
Application fields: mechanical equipment visual positioning, semiconductor detection, wafer detection; IC wafer, LED wafer, setting crystal, fixing crystal, dispensing positioning; LCD detection, LCD module fog / cog; Polycrystalline silicon, monocrystalline silicon, wafer scribing, screen printing; Capacitive screen panel partition, screen printing; Machine vision experiment application; Positioning for industrial use.
Raytek collimating and expanding lens can change laser beam diameter and divergence angle of lens assembly. The laser beam emitted from the laser has a certain divergence angle. For laser processing, only by adjusting the beam expander to make the laser beam become collimated (parallel) beam, can the focus lens be used to obtain small high-resolution density spot. It can be used in laser ranging.
1) . high plate resolution, low distortion, large depth of field
2) . high definition imaging, high quality color reduction
3) . sensitive positioning, widely used in all types of fields.
Main Specification:

Items	Value & Description
Substrate	Optical grade quartz glass
Machine Vision/Industrial lens
Focal Length	4mm,6mm,8mm,12mm,16mm,25mm,35mm,37mm,50mm,75mm,etc Or customize as per demand Work Distance: 100-1500mm Filter Thread: M35.5*P0.5 Target Surface: 2/3" Interface: C
CCTV Lens
Interface Model	Cannon Interface, Nikon Interface, Macro 4/3 Interface, E interface, C Interface, Fujifilm Interface, Pentax Interface
Laser Beam Collimation Lens
	FC/PC, SMA,etc conventional fiber interfaces
	Laser beam collimation spot diameter: 1-12mm Divergence angle: 0.2-30 Focal Length: 4mm,10mm,15mm,18mm,20mm,30mm,40mm,etc Suitable wavelength: 400nm-1750nm

The listed prices are only for reference. The final price is up to the substrate type, substrate grade, product size, suface finish, surface quality and Physical & Optical request standards.
Main Cooperation Materials Manufacturers:
CORNING, OHARA, SCHOTT, LEONI, AGC,HELLMA, NIKON,VITRON,C-LASER,J-FIBER,ETC
Main Export Countries & Areas:
Usa, Uk, Japan, Germany, Spain, France, Swiss, Korea, Russia, Pakistan, India, Portugal, Canada, New Zealand, Australia, Saudi Arab, Turkey, Finland, Poland ,etc.
Raytekoptics Extra value added services offered:
1). Optical workcraft & process solution design;
2). Rough processing raw materials;
3). Semi finishing raw materials;
4). Fabricate custom sizes and shapes;
5). Design and supply custom coatings;
6). Modify and resurface customer supplied materials;
7). Drill holes, notch glass and provide beveled substrates;
8). Precision polish optics with non-standard aspect ratios;
Payment Method: by T/T or Western Union.
Delivery time: 7-10 days.
Quality Warranty: Ruitaiphotoelectric(Raytekoptics) offers quality warranty for our optics products with "3R" policy. For any inferior-quality products, Ruitaiphotoelectric(Raytekoptics) is responsible for return, replacement and refund.
