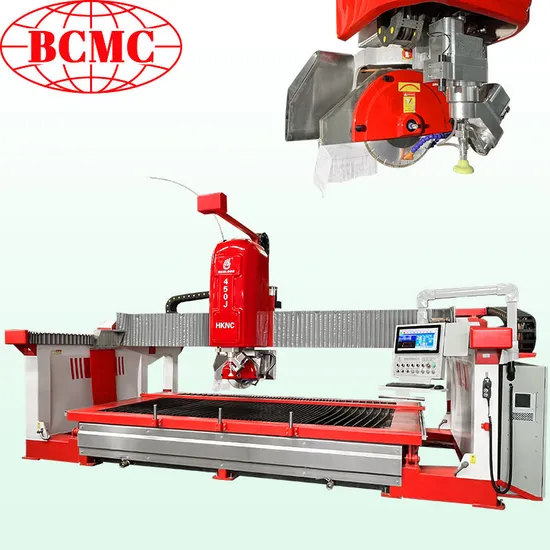

2025 Bcmc Multi-Functional 5 Axis CNC Saw Jet High Pressure Water Cutting Machine with 5 Axis CNC Bridge Stone Saw Counter Top Machining Sawjet Machine

Product Description

BCMC Machinery BCNC-450J is a kind of multifunctional stone processing machine. Combine the saw with the water jet together. Practical and easy in stone cutting. The feature of saw blade is powerful and directly in cutting. Water jet is unlimited in cutting and need less controlling in direction turning. Combine them in one so to get the better controllabitity. This machine can cutting quantities of stone slab style. It can dealing with the the slab of granite, marble, quarts, limestone and other rising new ceramic material. The cutting is precisely and beauty. Suitable for processing the countertop, sink, luxury stone, tiles and so on. Handling the precise intricate shape or pattern is a piece of cake.
Main Features: Fully 5 interpolated axes which can move in X, Y, Z axis together with the cutter head turning and rotating in one time automatically. Italian ESA CNC 19" touch screen control system. Easy control and interactivity. KMT-H20 JET50 super-pressure pump equipped with Siemens PLC and motor. Automatic rotation and position for saw blade and water jet. Powerful processing ability. Easy handling the curved surface and precise work like circle, oval and polygon. The absolute precision of the movements is guarantee by a state of art transmission on linear ball guide, moved by servo motors through high precision helical gears and racks. Automatic cross cutting repeatedly by easy one-button. Available for manual cutting for doing some simple machining work. RTCP tool point tracking function ensure precision machining easy. Photographing function help for slab nesting and avoiding defects. Cutter head can rotate in 90 degrees and tilt in 45 degrees automatically for chamfer work. The workbench can tilt in 85 degree and rotate all around. USB connection. Easy to connect and upload your CAD/CAM files to the machine. With one machine of sawjet, your are equal to get one normal cutting machine and onr waterjet machine!
Parameters:

Overall Dimensions (L x W x H)(mm)	mm	6000*3820*3200
Overall weight (kg)/Gross weight(kg)	kg	10000
Work Table/Work Bench Specifications (mm)	mm	4150*2250
Control system		ESA CNC
Servo motor		YASKAWA
Electronic components		Siemens, Schnider, Sanch
Electro-spindles		Controlled by an high quality inverter allowing the adjustment of the revolutions from 0 to 6000 rpm. Granting the use of blade and diamond tools such as a core drill or milling cutter. The tool changing is manual type. With Internal water passage.
Super-pressure pump		KMT-H20 JET50
Guide rail/Linear guide		Hiwin
guide rail style		Oil-immersed V-shape tracks and racks on crossbeam
Laser Reticule Apparatus		√
Lubrication System		Duanrun
Assembly saw blade diameter	mm	350-450
Maximum machined thickness/cutting depth	mm	100
Maximum lifting stroke	mm	320
Stroke(x-axis)	mm	3500
Stroke(y-axis)	mm	2000
Stroke(z-axis)	mm	500
Power of main motor	kw	26.4
Power for abrasive waterjet	kw	37
Required pressure of inflow	Mpa	0.4
Max. operating water pressure	Mpa	450
Tilting of tool head (°)	°	0-90
Rotation range of tool head (°)	°	360
Tilting of tool head (°)	°	0-60
Rotation range of tool head (°)	°	360
Working range of table (°)	°	T:0-85 R:0-360
Water consumption	L/min	11.4-16.7

Detailed Information For Spare Parts: Control System
Italian ESA operation system and Italian Zeus/Pegasus cad-cam drawing software to fulfil full automatic cutting from beginning to end without manual intervention Digital Servo Motor
Italian Original ESA Servo motor to guarantee accurate positioning and cutting Photo Slab System
Detecting slab with camera positioned above the machine and image acquisition software to catch the slab dimensions to be exploited in the best way possible and carry on the cutting avoiding any defects or any veins in the material. Vacuum Lifter
Suctions cups for lifting and moving cutting pieces in order to exploit the slabs as much as possible. Blade Presetting Unit (optional)
Automatically measuring blade diameter and diamond tool Slab Thickness Detector(Optional)
System to automatically detect the thickness of the slab. Vein Matching Function(Optional)
Easily match up each vein and seam of your project
Working of Our Machine
Final Products
Application:
* 3D decorative wall panels
* Countertops
* Doorsteps, staircases and thresholds
* Fireplaces
* Flooring
* Funerary art/tombstone
* Street furniture
* Ventilated facades
