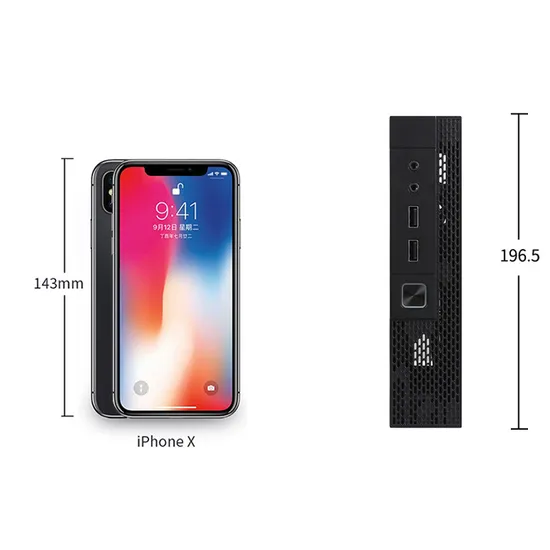

Latest Cloud OS Advertising Box Cheap Industrial Gateway Micro PC Mini Computer
Basic Info.
Model NO.
Z-DE11001
Rack Unit
8U
System Expansion Slot
14 Slot
CPU
I3 I5 I7
RAM
2*So-DIMM DDR4 2400/2666MHz Memory
Storage
1*M.2 2280 Interface Supports Both Nvme and SATA P
GPU
Intel® Iris® Xe Graphics
Integrated Graphics Output
HDMI/Dp/Type-C Support Synchronous. Asynchronous T
Network
Intel I219 10m/100m/1000m Ethernet 1*M.2 2230 for
Front Interface
1*HDMI2.0 out(4K/60Hz)1*Dp 1.4 out 5*USB3.0 1*USB
Rear Interface
1*Jae 80pin HDMI2.0 out(4K/60Hz)
DC in
19V 4.74A
Overall Size
Bare Metal:195*180*42 Box Size: 282*257*79mm
Weight
Net Weight≈1.2kgt Gross Weight≈1.4 Kg
Operating Temperature
0°c~ 45°c
Storage Temperature
-40°c~ 80°c
Working Humidity
10% - 95% @40°c No Condensation
Operating Systems
Windows 10/11, Linux
Type
IPC
Screen Size
16-20′′
Touch Screen
Touch Screen
Application
Medical, Commercial, Industrial
CPU Card Size
Full-size Card
Hard Disk Rack Type
Board Type
Accessories
All-steel Chassis
CPU Type
Intel
Transport Package
282*257*79mm
Specification
282*257*79mm
Trademark
zoomtak
Origin
China
HS Code
8471504090
Production Capacity
99999999999999/Year
Product Description
Our Advantages We can support OEM/ODM service, and Assisting customers in their journey towards customized solutions:
>Logo(Packing , Computer Logo)
>Computer Colors
>Security
>Interfaces Customization
>Virtualisation
>Data Protection
We also have 8th 10th 11th 12th OPS Module and Thin Client, Thick Client, Digital Signage Player,Android Box, 4G/5G Cloud Mini Computer and so on. If you have inquiry of different Mini PC, freely to contact us.
Detailed Photos
Product Description
| Standard parameters | CPU | 12th Gen Intel®Core™i3 i5 i7 | ||
| RAM | 2*SO-DIMM DDR4 2400/2666MHz memory | |||
| Storage | 1*M.2 2280 Interface supports both NVME and SATA protocols | |||
| 1* 2.5" SATA HDD/SDD | ||||
| GPU | Intel® UHD Graphics 770 | |||
| Integrated graphics output | HDMI/DP supports synchronous and asynchronous dual display | |||
| Network | LAN | Intel I219 10M/100M/1000M Ethernet | ||
| WIFI | 1*M.2 2230 for Wifi+BT | |||
| audio | Realtek ALC897 audio 5.1 channel | |||
| I/O-Port | Front interface | 1*HDMI in 1*HDMI out 1*DP out 5*USB3.0 1*USB2.0 1* RJ45 1*Power 1* Reset 1*Line out 1*Type-C(Video support+USB3.0 transmission)1*Power LED 1*HDD/SSD LED 2*WIFI/BT ANT | ||
| Rear interface | 1*JAE 80PIN:HDMI2.0 out(4K/60Hz) | |||
| Power | DC in | 19V 4.74A | ||
| Size | Overall size(mm) | Bare metal: 195*180*42 | ||
| Weight(kg) | Net weight≈1.2 Kg | |||
| Temperature & Humidity | Operating temperature | 0°C~ 45°C | ||
| Storage temperature | -40°C~ 80°C | |||
| Working humidity | 10% - 95% @40°C No condensation | |||
| os | Operating systems | Windows 10/11, Linux | ||
Company Profile Shenzhen Zoomtak Electronics Co., Ltd. is a global provider of AIoT hardware products and solutions. Zoomtak focus on intelligent industrial development and promotes comprehensive applications of AIoT scenarios. The development of our core competencies in multi-scenario product definition, diverse research and development, flexible manufacturing, and intelligent information management systems, leads us to pursue the mission: "Achieve win-win Success with clients and Create a Smarter Future."
Packaging & Shipping
FAQ Q1: Are you the manufacturer of the product?
A: Yes, of course we are. We have own property rights factory.
Q2: Can you provide OEM or ODM services?
A: Yes, we are willing to provide our customers with OEM and ODM services.
Q3. Can you print my logo on the product?
A: Yes, we support.
Q4. What is the warranty?
A: 3 years warranty.
Q5: If the product is out of warranty, what should I do?
A: We will repair it for free.
Q6: Where can I place an order?
A: You can place an order on the website or contact us directly via email.
If you have any other questions, please feel free to contact us.
| Order information | ||||
| Chipset | H610 | Intel H610 chipset, Intel LGA 1700 interface, support Intel 12th and 13th generation: Cy Young, Pentium, Core Series 65W processor | ||
| Raptor Lake-S 13 CPU | | I5-13400 | I7-13700 | |
| Alder Lake-S 12 CPU | I3-12100 | I5-12400 | I7-12700 | |
| DDR4/RAM | Optional:4G/8G/16G/32G/64G | |||
| Hard disk/SSD | Optional:SSD 128G / 256G / 512G / 1TB /HDD 2T | |||
