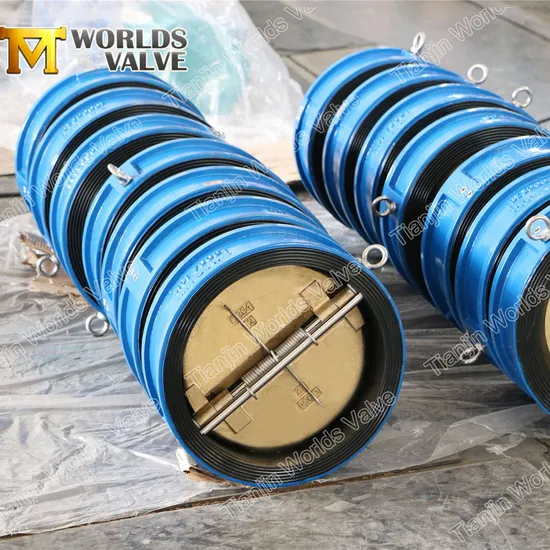

ISO5752 Industrial Control Full EPDM Rubber Coated Lining Water Gas Duo Dual Plate Double Door Wafer Type Butterfly Check Valves From Tianjin Worlds Valve China
| US$10.00-200.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
H77X-10/16
Material
Cast Iron
Connection Form
Flange
Structure
Wafer
Pressure
Ordinary Pressure
Function
Ddcv Double Lobe, Nrvr Silence, Sfcv Rubber Lobe, Nrvz Silence, Nrvg Silence
Sealing Form
Bellows Globe Valve
Flow Direction
Unidirection
Standard
DIN3356;API594;API6d;
Application
Industrial Usage, Water Industrial Usage, Household Usage
Body Material
Cast Iron/Ductile Iron/Wcb/CF8m/CF8/Al-Bronze
Disc Material
1.4469/1.4529/Saf2205/2507/CF8/CF8m etc
Seat Material
NBR/EPDM/PTFE/Viton/Silicone etc
Coating
Fbe Epoxy Coated
End Standard
Pn6/10/16/25/21/150lb/JIS5K/10K/As2129 Table D/E/F
Face to Face
En558; ISO5752; ANSI B16.10;API594
Transport Package
Plywood Box
Specification
DN40-DN1200
Trademark
OEM
Origin
Tianjin China (Mainland)
HS Code
8481300000
Production Capacity
100, 000, 000sets/Year
Packaging & Delivery
Package Size
110.00cm * 110.00cm * 90.00cm
Package Gross Weight
500.000kg
Product Description
Technical Parameters:| Size | DN50-DN600 | |
| Working pressure | 16Bar | 10Bar |
| Shell | 24Bar | 15Bar |
| Seal | 18Bar | 11Bar |
| Operating Temperature | -10ºC~+120ºC | |
| Operating Environment | Ballast and bilge system Chemical processing Desalination plants Drilling rigs Drinking waterDry powder Food and beverage Gas plants HAVC Mining industry Paper industry Sand handling Seawater Sugar industry Thermo technical water treatment Waste water | |
Main Material:
| Name | Material |
| Body | Cast Iron Ductile Iron Carbon Steel Stainless Steel AL-Bronze |
| Disc | Ductile Iron Carbon Steel Stainless Steel AL-Bronze |
| Pin | Stainless Steel Monel K500 |
| Seat | BUNA NBR EPDM VITON HEPDM Neoprene Hypalon Natural rubber |
Executive Standard:
| Design Standard | EN12334 EN14341 |
| Inspection & Test | EN12266-1 ISO5208 |
| End Standard | ANSI B16.1 125LB BS4504 PN10 & PN16 EN1092-2 PN10 & PN16 AS 2129-2000 Table D Table E ISO 7005 PN10 & PN16 ASME B16.5 150LB JIS B2220 5K/10K |
| Face to Face | EN558-1 Series16 ISO 5752 Series16 ANSI B16.10 GB/T12221 DIN3202 K3IN3202 |
Wafer Dual Plate Resilient Seated Check Valve
Product description:
Our check valve is economically priced but with higher quality and capability than most at this market
Product Feature:
Pressure seal design.
Unique cage unit: entire seat-hinge-pin-disc assembly can be tested outside the valve before seal welding into the body. Eliminates pin seal leakage.
Easy in-line service.
Efficient operation. The hinge pin located near the center of gravity allows the conical seating face of the disc to move out and into the seat rapidly without sliding or wear. The disc pivots through a small arc preventing backflow and "water hammer".
Superior tightness: conical, lapped-in hardfaced seating is self-aligning. Valve can be used even in vertical piping with flow up.
COMPANY INTRODUCTION
**Company Goal : OEM service for world-famous valve brand.
**Design & Development ability -- SolidWorks, Pro / E, AutoCAD etc
**Dimension Measurement &Inspection
**Assembly Workshop
**Packaging
**Certificates -- CE ISO WRAS ACS certificates
