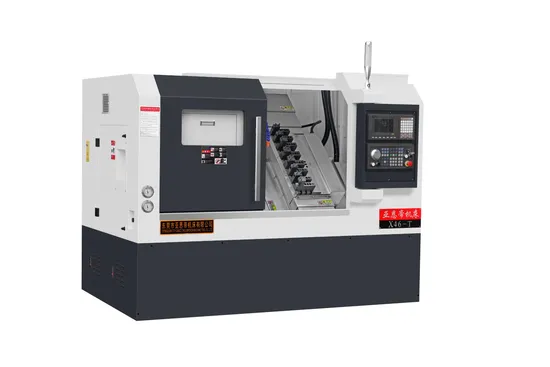

High-Precision and High-Luster CNC Lathes Machine with Inclined Beds and High-Speed Heavy-Duty 8-Station Tool Arrangement

Product Description

Basic Info

Model NO.	X46-T		Process Usage	Metal Processing
Movement Method	Point to Point Control		Control Method	Closed-Loop Control
Numerical Control	CNC/MNC		Processing Precision	0.002~0.01(mm)
Performance Classification	Economical CNC Machine Tools		Certification	CE,
Condition	New		Tailstock Form	Hydraulic Tailstock
Lubrication Form	Grease Lubrication		Hydraulic System	3 Channels
Max. Live Tool Speed	4000rpm		Product Name	CNC Lathe
Keyword	Lathe Machine		Key Word	Automatic CNC Lathe Machine
Transport Package	Packaged Into Wood Carton		Specification :mm	2200 *1650 *1820
Trademark	ANTJC		Origin	China
Production Capacity	420

Packaging & Delivery

Package Size	2200mm * 1750mm * 1850mm
Package Gross Weight	2800.000kg

Product Description

High Speed Driven machine Tool Turret Hydraulic Tailstock CNC Slant Bed Heavy Turning Lathe
1,High precision spindle
The machinetooladopts highrigidity spindlewith highrigidity, highrigidity and precision ofthe spindle, and the spindle's beating andtrue roundness
<3um
2,High efficiency machining
The maximum speed ofmachine tool spindle is4500/ min,X.Zaxiscanbe sent to 30 m / min. it can be equipped with automatic feeding machine to
realizehigh speed andhighefficiency.
3,Thebed structure
The integration of high rigid bed 45 degree inclined lathe bed structure smooth chip, compact structure,beautiful shape.The whole stainless
steeldoorandhighreliability
4,High precision feed
The feed axis servo drive, the Taiwan Yintai high precision ball screw, prestretched at both ends of the structure to ensure the machining precision
and long time to maintain the accuracy and feed the shaft to repeat positioningaccuracyof<±1um,surfacegloss/0.8
5,Rotary turret
The use of high precision hydraulic turret,the number of bits, tool for high-speed,smooth,accurate,saving processing time.Hydraulic tailstock.The rear seat rail can be disassembly, flexible configuration, greatly improving the processing in time to save the shaft parts machiningaccuracyandefficiencygreatly
6,Super cutting
Highspeed, highprecisionhydraulicrotarycylinder,precisioncolletand highrigidityprecision powerchuckconfigurationandimprovethematerial
toughnessheavycuttingandpowerfulcuttingability
7,NewGeneration System
Adopt new generation system, make the machine tool have more precision, more stability, high-power powerful cooling pump greatly improvesthecuttingand coolingperformanceoftheparts.
Company Profile
Company Profile
Dongguan Ya endi Machine Tool Co., Ltd. is a high-tech enterprise specializing in the research and development, sales of CNC machine tools, and the design, installation, and commissioning of automation projects. It is an enterprise that integrates the development, design, production, sales, and service of CNC machine tools and automation processing. The company is located in the Daban Di Industrial Zone, Humen Town, Dongguan City, Guangdong Province, China. The main products include 5-axis linked CNC machine tools, power tool turret CNC lathes, high-precision turret tailstock CNC lathes, inclined bed multi-tool CNC lathes, 5-axis 4-linked turning-milling compound CNC lathes, 40,000 RPM 5-axis 4-linked compound CNC lathes, and automated production lines. These products are suitable for the automotive industry, electronics industry, aerospace, military industry, optoelectronics communications, automotive and motorcycle, home appliances, lighting, fishing gear, and jewelry industries. They are used for efficient and high-precision machining of parts and are deeply loved by a wide range of customers. Ya endi is full of passion and creativity; quality and service are our commitment, and customer satisfaction is our goal.
Corporate philosophy: "Honesty, cooperation, pioneering, innovation"
"Human-oriented, efficient and high-quality, continuous improvement, pursuit of excellence"
Deta
ils display
Product Parameters

Category	Product Name	Model
Turning and Milling Machine Tool	Dual-spindle Dual-turret Turning and Milling Machine Tool	ANT308SDYY
Turning and Milling Machine Tool	Dual-spindle single-drive tool turret orthogonal Y-axis turning-milling compound machine	ANT308SDY
CNC lathe Milling Machine	Dual-spindle Dual-turret Turning and Milling Machine Tool	CNC46-SSTD
CNC Lathe	Dual-spindle Lathe With Double Gang Tool Carriers	X46-SST
CNC Lathe	Dual-spindle Dual-s turret lathe	X46-STD
Turning and Milling Machine Tool	Dual-Spindle Driven Tool Turret Lathe(Without Y-axis)	ANT308SD
Turning and Milling Machine Tool	Vertical Y-axis combined turning-milling machine (servo tailstock version)	ANT208DY
Turning and Milling Machine Tool	Orthogonal Y-axis Turning and Milling Machine Tool	ANT308DY
Turning and Milling Machine Tool	Orthogonal Y-axisTurning and Milling Machine Tool	ANT308DY
Turning and Milling Machine Tool	4+4 Driven Tool+ Normal Turret Turning and Milling Machine Tool	CNC46-T/4+4
Turning and Milling Machine Tool	Driven Tool Turret Turning Tailstock Lathe Without Y-axis(Hydraulic Tailstock Version)	ANT208D
Turning and Milling Machine Tool	Driven Tool Turret Turning Tailstock Lathe Without Y-axis(Hydraulic Tailstock Version)	ANT308D
Turning Machine Tool	Turning Machine Tool with normal turret(Hydraulic line gauge tailstock)	ANT208
CNC lathe Machine	CNC Lathe(Without Tailstock)	T52-T
Turning Machine Tool	Turret lathe with a large processing diameter and standard tool turret(Hydraulic line gauge tailstock)	ANT415
CNC lathe Machine	Turret lathe with a large processing diameter and standard tool turret(servo line gauge tailstock)	ANT415
CNC lathe Machine	Large travel heavy-duty CNC lathe with four-way tool post and large diameter turning capacity	CJK6180X6000
CNC lathe Machine	Rapid Tool Change CNC Lathe	X46-T

Equipment Display
product introduction

Project			Unit	Specifications
Work Ability	Maximum turning diameter on the bed			Ф560
	Maximum turning diameter			Ф400
	Maximum drilling diameter			Ф50
	Maximum turning length			460
Maximum stroke	X:direction			250
	Z:direction			350
	Y:direction			/
Spindle box	Spindle speed range		r/min	0-4500
	Main motor power		Kw	5.5KW
	Spindle head model			A2-5
	Spindle through-hole diameter			Ф56
	Diameter of the through rod material			Ф46
	Spindle front shaft diameter size			Ф100
	Spindle center to bed height			350
	Height from spindle center to ground			1015
Fast forward speed	X:direction		m/min	30
	Z:direction			30
	Y:direction			/
8-station tool arrangement	Outer circle knife square size			20*20
	Maximum boring bar diameter			StandardФ20;
	Straight knife holder	Square knife seat	a	4
		Round knife holder		4(Diameter¢20)
Chuck	Hydraulic hollow		Inch	6
Machine tool dimensions (length × width × height)				2200×1650×1850
Machine tool weight	Net weight			2500(With chip discharge mechanism)

group photo of the visit

Packaging and delivery

Packaging details: Meets international heat treatment standards, exported on wooden pallets
The workbench and guide surface have anti-rust oil applied,
vacuum packaging,
effectively preventing moisture and rust.
Exhibition

2024 Hardware Machinery Exhibition, featuring new dual-spindle models and high-speed turning-milling compound machines, as well as ultra-hard material processing turning instead of grinding machines.

Part processing case
FAQ
Q1: How to choose the most suitable machine?
Answer: Please tell us your specifications, and we can choose the best model for you, or you can choose the exact model. You can also send us the product drawings, and we will choose the most suitable machine for you.
Q2: What are the main products of your company?
Answer: We specialize in the production of various machines, including CNC lathes, turning-milling compound lathes, twin-spindle CNC lathes, twin-spindle turning-milling compound lathes, etc.
Q3: Where is your factory located? How can I visit there?
Answer: Our factory is located at No. 3, Daban Second Road, Daning Village Committee, Humen Town, Dongguan City, Guangdong Province, China, postal code: 523877. We warmly welcome all new and old friends to visit our factory. In addition, if needed, we can pick you up at the station or airport.
Q4: What are your trade terms? Answer: Both FOB and CIF are available.
Q5: What are the payment terms? Answer: T/T, 30% deposit when ordering, and the remaining 70% before shipment; before you pay the balance, we will show you photos and online videos of the products and packaging.
Q6: Can you provide customized machines? Answer: Yes, we can design and manufacture according to your specific requirements.
Q7: Do you have professional engineers? Answer: Yes, we have professional engineers and designers.
Q8: Does your company provide professional training? Answer: Yes, we provide training and teaching or video teaching.
Q9: How do you provide after-sales service? Answer: We usually provide technical support online through WeChat or WhatsApp. Customers describe the problem and send videos and pictures, our technical staff will help to solve the problem, during the warranty period, if the parts are damaged due to non-human factors, we will send new replacement parts for free.
Q10: What is your delivery time? Answer: Generally, it takes 30 to 60 days after receiving your deposit. The specific delivery time depends on the goods and quantity of your order.
Q11: Do you test all goods before delivery? Answer: Yes, we have conducted 100% testing before delivery.
Q12: Can you provide product samples? Answer: Yes, we can provide samples according to the drawings, but the customer needs to pay the sample fee.
Q13: Which industries are your machines used for? A: Automotive parts industry, electronic equipment industry, home appliance industry, mold accessories, photoelectric communication, aerospace, automotive and motorcycle, etc.
