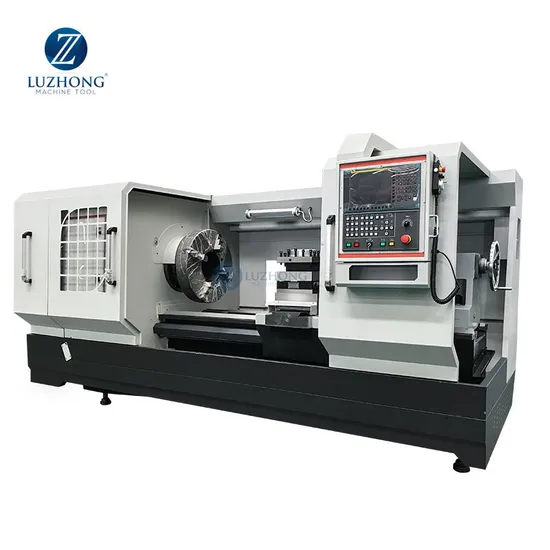

High precision Oil country Screw Cutting Lathe QK1332 Pipe Threading CNC Lathe

Product Description

High precision Screw Cutting Lathe QK1332 QK1338 QK1343 QK1350 Pipe Threading Lathe Machines Price
Product Description
Detailed Photos
Product Parameters
The main performance characteristics:
Big spindle bore and double chuck allows clamp and process big diameter pipes;
Integral machine bed adopts high strength iron to relize high rigidity and precision;
Ultrasonic frequency quenched guide-ways are hard enough for good wear-resistance;
Carriage and guide way contact surface pasted with Turcite B to maintain long-term accuracy.
Application:
CNC Heavy Duty Oil Pipe threading lathe machine is mainly designed to process all kinds of internal and external pipe threads including metric,inch,module,DP and taper threads,as well as having all the common functions of normal CNC lathe such as processing the inner bore and end face of shafts and disks.
This series lathe machine is widely used in industries including petroleum exploiting,coal and minerals mining,chemical piping and geological prospecting,it is high-efficiency equipment in processing and repairing drilling pipe,drilling rod,thread coupling and so on.
Standard Accessories:
Fanuc CNCsystem,NC turret 4 position,Coolant system,Lubrication system,Lighting system,Mobile
hand-wheel,Semi-shield,Manual tailstock,Chuck,Rear support bracket, Pad iron etc.
Optional Accessories:
CNC system(Simens,Fagor,GSK,KND),Turret(Servo,hydraulic,power),Chip conveyor,Air conditioner,Full-shield,Hydraulic tailstock,Chuck,Center rest,Follower rest,Signal light,Grinding attachment etc.
Product main technical parameters:

ITEMS		UNIT	QK1332	QK1338		QK1343	QK1350
Capacity	Swing over bed	mm	Ø1000	Ø1000	Ø1000			Ø1200
	Swing over cross slide	mm	Ø610	Ø610	Ø610			Ø710
	Distance between centers	mm	1500	1500	1500			1500
	Pipe threading range	mm	Ø190-320	Ø190-380	Ø270-430			Ø330-510
	Width of bed way	mm	755	755	755			755
	Max.load capacity	T	5	5	5			5
Spindle	Spindle bore	mm	Ø330	Ø390	Ø440			Ø520
	Spindle speed steps	-	VF 3 steps	VF 3 steps	VF 3 steps			VF 3 steps
	Spindle speed range	rpm	10-240	5-205	5-205			5-205
	Chuck size	mm	Ø780	Ø850	Ø100			Ø1000
	Chuck type	-	4 jaw electric	4 jaw electric	4 jaw electric			4 jaw electric
Turret	Turret type	-	NC Turret 4 station	NC Turret 4 station	NC Turret 4 station			NC Turret 4 station
	Tool shank size	mm	40x40	40x40	40x40			40x40
Carriage	X axis travel	mm	500	500	500			500
	Z axis travel	mm	1250	1250	1250			1250
	X axis rapid traverse speed	mm/min	4000	4000	4000			4000
	Z axis rapid traverse speed	mm/min	4000	4000	4000			4000
Tailstock	Tailstock quill diameter	mm	Ø140	Ø140	Ø140			Ø140
	Tailstock quill taper	-	MT#6	MT#6	MT#6			MT#6
	Tailstock quill travel	mm	300	300	300			300
Motors	Main spindle motor	kW	VF.22	VF.22	VF.22			VF.22
	Coolant pump motor	kW	0.125	0.125	0.125			0.125
Accuracy	Positioning accuracy	mm	0.020	0.020	0.020			0.020
	Repositioning accuracy	mm	0.010	0.010	0.010			0.010
Dimensions	Width x Height	mm	2100X2100	2100X2100	2100X2100			2100X2100
	Length	mm	4600	5000	5000			5000
Weight	Net weight	T	11.5	12	13			15
