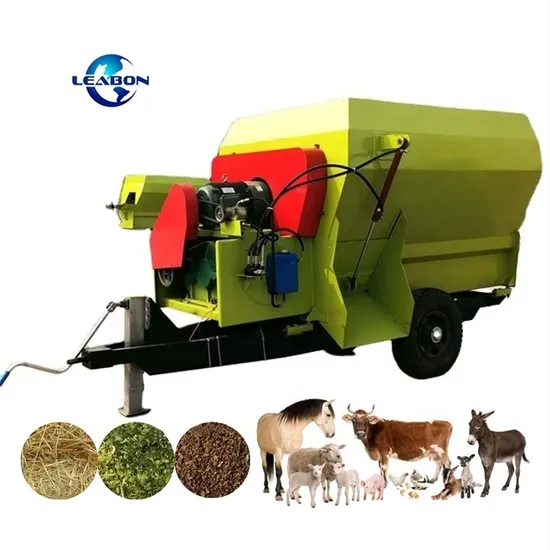

9cbm Horizontal/Vertical Tmr Total Mixed Ration Feeding Fodder Machine for Sale

Product Description

9cbm Horizontal/Vertical TMR Total Mixed Ration Feeding Fodder Machine For Sale
Product Description
1.Horizontal Feed Mixer
Brief Production
Feed mixer (TMR) is suitable for a variety of pastures, can mix a variety of hay, silage feed and other fiber feed and mixed feeding directly. The machine can reduce the labor intensity of artificial feeding, save feeding costs, improve economic efficiency. The TMR feed mixer can increase the dry matter intake, increase the milk production, improve milk quality, reduce the incidence of dairy cattle, increase feed utilization, save feed costs, and provide labor productivity.

Technical Of Horizontal Type Mixer Parameter

Model	9TMRW3	9TMRW-5	9TMRW-9	9TMRW-12
Motor Power(kw)	11	15	22	30
Capacity(kg/h)	1000-1500kgs/h	2000-3000kgs/h	4000-5000kgs/h	6000-7000kgs/h
QTY of blades(PCS)	33	40	58	69
QTY of twisted dragon(PCS)	3	3	3	3
Bottom plate thickness	5mm	6mm	8mm	10mm
Side plate thickness	4mm	5mm	6mm	6mm
Reducer	Jiangsu JZQ400	Jiangsu Guomao R137	Jiangsu Guomao R147	Jiangsu Guomao R149
Dimension(mm)	3600*1700*1900	3900*1800*2100	4600*2000*2500	5300*2200*2600
Weight(kg)	1700	2300	3200	4100

Details Photos
Electronic Control Box
The electric control box has the advantage of button clear,box safe,easy to understand,easy to operate,single person can operate.

Hydraulic Control
Under hydraulic control, the bearing capacity is larger, the operation accuracy is high, the efficiency is high, and the service life is long.

Electric Motor
The electric motor has better conductive and energy-saving effects,and the motor is more durable.

Augers
The augers have thickened manganese steel blade,stable rotation,uniform crushing and mixing,high efficiency and low noise.

2.Vertical TMR Feeder Mixer
Brief introduction 1)The machine is mainly composed of one or two augers. The spiral auger is divided into left and right rotations. During mixing and stirring, the material is simultaneously stirred and stirred at the middle position of the mixer from each direction of both ends of the box. Each spiral lead on the spiral body is equipped with a moving blade, and the fixed teeth on the center line of the feed mixer are used for cutting work. The various fibrous forages and straws passed through are cut and agitated so as to achieve complete mixing of the crushed and mixed Dietary feeding effect.

2)The bottom of the trough of the machine is made of high-quality alloy steel, suitable for working in harsh environments, safe and reliable work, simple operation, convenient and flexible. The unique cutting blade made of high wear-resistant materials greatly improves the service life of the product.

Technical Of Vertical Type Mixer Parameter

Model	9TMRL-5	9TMRL-9	9TMRL-12	9TMRL-16
Motor Power(kw)	15	22	30	22+22
Capacity(T/H)	2-3t/h	4-5t/h	6-7t/h	8-10t/h
QTY of blades(PCS)	5	8	8	16
QTY of twisted dragon(PCS)	1	1	1	1
Bottom plate thickness	14mm	16mm	16mm	18mm
Side plate thickness	5mm	8mm	8mm	8mm
QTY of twisted dragon(PCS)	Nanchang JiangLing	Nanchang JiangLing	Nanchang JiangLing	Nanchang JiangLing
Dimension(mm)	3100*1900*2100mm	3900*2300*2500m	4600*2400*2600m	5800*2500*2600m
Weight(kg)	1900kg	2800kg	3600kg	5000kg

Detail Photos
Electric Control Cabinet
The electric control cabinet has the advantage of button clear,box safe,easy to understand,easy to operate,single person can operate.

Outlet Door
The Door can control the discharge amount at will,which is convenient and quick,and reduces redundant labor.

Augers
The lord beat the dragon has thickened manganese steel blade,stable rotation,uniform crushing and mixing,high efficiency and low noise.

Hydraulic Door Controller
The hydraulic door controller has the advantage of the bearing capacity is larger, the operation accuracy is high, the efficiency is high, and the service life is long.

Raw Materials
Final Product
Application
Packaging & Shipping
Normally, we adopt wooden case or container.If export to European countries,the wooden box will be fumigated.If container is too small,we will use PE film for packing or pack it according to customers special request.
Our transport operators & delivery facilities are ready on time and when the contains arrive at the factory , they are guaranteed to ship according to the scales .
Workshop scene
After Sales Service
1.We can provide you the one year warranty but without the spare parts.
2.The professional and timely 24 hours after-sale service.
3.The relative video of the machine installation and instruction will be provided for you.
4.We can provide you the different mould to meet your different requirements.
5.We can also meet the special voltage demand.
6.The engineer is available to service machinery oversea
Customer Feedback
Five-star praise form customer
FAQ

Q1:what's raw material suitable for making feed pellet? ------Grass, alfalfa, stalk, straw, grains powder

Q2:how many tons feed you want to mixing per hour ? ------3CBM, 5CBM, 9CBM; 13CBM; 15CBM etc

Q3:What's the certification of your feed pellet machine? ------CE Certification.

Q4:What's the warranty of feed pellet machine? ------Warranty:1 Year(except spare parts).

Q5: What's your payment terms? ------Payment terms: T/T; L/C; Western Union; Money Gram.
