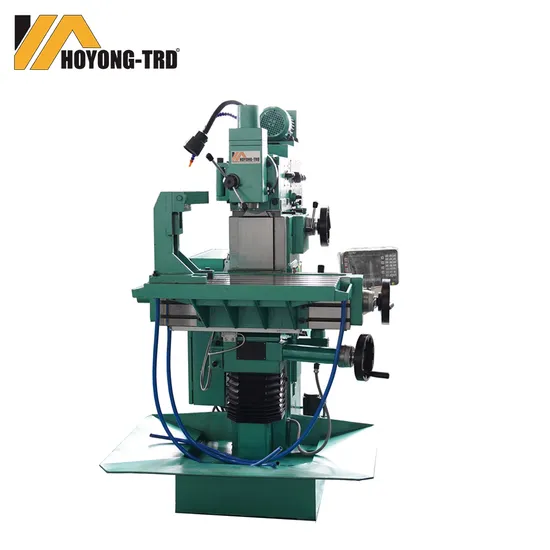

X8140 Universal Tool Milling Machine
| US$13,000.00-16,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
X8140
Type
Knee Type Milling Machine
Object
Metal
Structure
Ram
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
High Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Motor
3kw
Horizontal Working Tablefw X L)
400*800
Vertical Working Table(W X L)
250*950
Longitudinal/Transverse/Vertical Travel
500/350/400
Transport Package
Plywood Case
Specification
2200kgs
Trademark
HOYONG-TRD
Origin
Shandong, China
HS Code
84581900
Production Capacity
10 PCS/Month
Product Description
Universal Tool Milling Machine
This machine is designed to be a Universal Tool Milling Machine, can
perform procedures such as milling, boring, drilling, and slotting, etc.,
and is suitable for machining cutter, fixture, die and mould, and other
components with complex figuration. With the aid of various special
attachments, it can machine all kinds of components such as arc, gear, rack, spline, and so on.
Original structure, broad versatility, high accuracy, easy to operate.
With various attachments to extend range of application and raise utilization.
Model XS8140A: with programmable digital display system, resolving power is up to 0.01mm
SPECIFICATIONS:
| SPECIFICATION | X8140A | X8132A | |
| Working table | Horizontal working tablefW x L) | 400×800 mm | 320×750mm |
| Vertical working table(W x L) | 250×950mm | 250×850mm | |
| Longitudinal/Transverse/Vertical Travel | 500/350/400 | 400/300/400 | |
| Universal table | Horizontal swivel | ±360 ° | ±360° |
| Inclination to front and rear | ±30 ° | ±30° | |
| Inclination on left and right | ±30 ° | ±30° | |
| Vertical spindle head | Vertical travel of quill | 60mm | 60mm |
| Axis inclination on left and right | ±90 ° | ±90° | |
| Horizontal spindle | Taper hole | ISO40 | IS040 |
| The heigl.t from axis to ground | 1330mm | 1330mm | |
| Min.distance between axis and surface of horizontal table | 35mm | 40mm | |
| Vertical spindle | Taper hole | ISO40 | IS040 |
| Min.distance between nose and surface of horizontal table | 5mm | 10mm | |
| Horizontal and vertical spindle speed: steps / range | 18 steps/40-2000rpm | 18steps/40-2000rpm | |
| Longitudinal, transverse and vertical feeds: steps / range | 18 steps/10 -500mm/min | 18steps/10-500mm/min | |
| Axial feed of quill of vertical spindle: steps / range | 3 sleps/0.03- 0.12mm/rev. | 3steps/0.03-0.12mm/rev. | |
| Power of main motor / Feed motor | 3kW/1.5kW | 3kW/1.5kW | |
| Max. table load / Max. cutter load | 400kg /500kg | 300kg/500kg | |
| Overall dimensions(L × W×H)/ Net weight | 182×164×171cm /2300kg | 181×122×171cm /2200kg | |
| Packing dimensions(L × W× H) / Gross weight | 205×176×208cm | 199×164×211 cm/3000kg | |
