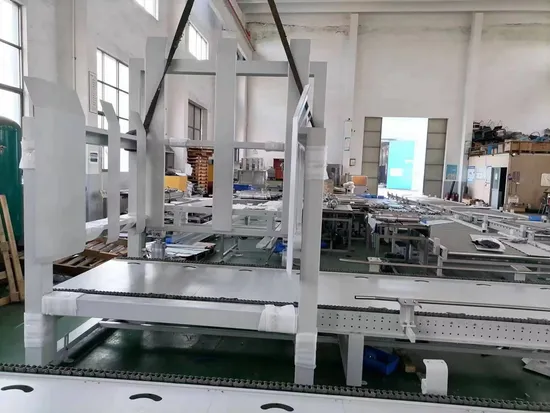

Customized End of Line Palletizing System Pallet Dispenser with Crossover Roller Conveyor
| US$1,500.00-13,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
KP-GT-001
Structure
Conveyor System
Material
Carbon Steel
Material Feature
Oil Resistant
Application
Chemical Industry, Food & Beverage Industry
Condition
New
Certification
CE
Special Sample
Simulate Free Testing
Dispenser Type1
Pneumatic Cylinder
Dispenser Type2
Electric Lifting and Clamping
Pallet Type
2 or 3way
Roller Brand
Inte Rroll
Motor Brand
S E W
Transport Package
Standard Export Package
Specification
Pallet W1200*1000mm
Trademark
KINGPACKING
Origin
Yixing, Jiangsu
Production Capacity
100
Product Description
Customized end of line palletizing system pallet dispenser with crossover roller conveyor JOINSUNA crossover conveyor is a machine designed to automatically shift direction device. There are several different types of crossover conveyor due to the driven way 1. Airbag 2. Pneumatic cylinder 3. Hydraulic cylinder 4. Motor lifting
The mechanical structure can be chain lift, roller driving or Roller lift, chain driving.
By automating the pallet hanlding process, it can solve the connection and direction shift in the corner, can save time, reduce labor costs, and increse efficiency.
Specification
| Model | KP-GT01-1 |
| Suitable pallet types | Wooden or plastic pallets |
| Suitable pallet size | 1200*1000mm |
| Frame material | Carbon Steel, surface painting |
| Linear guide rail | Hiwin or same class |
| C profile guide | 3t/6t steel sheet bending, surface painting |
| Air source | 0.6-0.8Mpa |
| Cylinder | Fes,to , SMC cylinder or Airbag |
| Conveyor feeding height | 500-600 +/-50mm depends on per project |
Specification for pallet roller conveyor
| Conveyor width*height | According to the drawing |
| Roller diameter | 80mm Inte rroll |
| Roller spacing | 125mm |
| Roller material | Galvanized |
| Motor Brand | S E W |
| Conveyor specification | Details see the drawing |
| Frame material | Carbon Steel, powder coating Cream white color |
| Loading weight | 800kg per pallet |
| Speed | 10-15m/min |
| Capacity | 180 pallets /hour |
Welcome to contact us for the delivery time, proposal, customer cases and quote!
