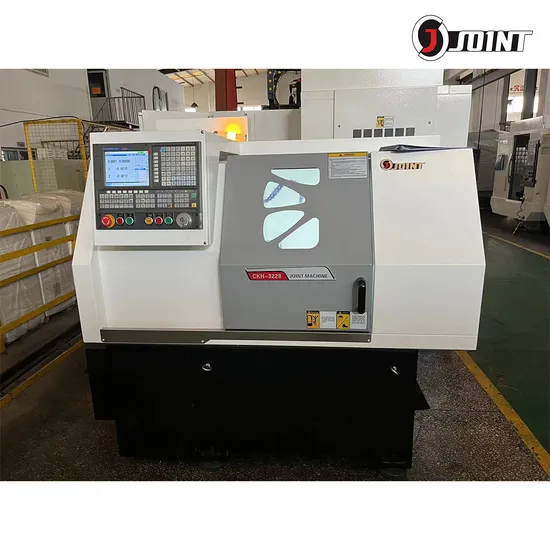

CNC Machine Low Price Ckh-3228 Small Lathe Machine with Gang Type Tool

Product Description

Product Introduction: This series of lathe machine is suitabloe for processing axis part, arcs, thread, cone and the face of inner and outer of rotating bodies.
Product features: 1.Flat bed type equipped with Taiwan high accuracy linear way, promoted the speed and stability.

2.Angular contact spindle bearing, strengthened the rigidity and accuracy of spindle , promoted the cutting ability.
3.Mid-screw, strengthened the stability when the machine running.
4.High effective, high precision and high cost performance.
Product details: 1. Spindlebox: High speed, maintenance free independent spindle
2. Tailstock: Lengthened and integrated tailstock
3. Bed: Integral casting for and an base
4. Bed saddle/slide: Widen, thickening, integral casting.
7
Product specifications:

Item	Unit	CKH-3228
Bed type		Flat type
Max swing diameter over table	mm	Ø320
Max swing over turret	mm	Ø156
Max processing length	mm	Ø280
Spindle motor power	kw	3.7
Spindle head		A2-5
Collet chuck		42
Spindle speed	rpm	3000
Spindle through hole diameter	mm	48
Bar diameter	mm	Air-operated/Hydraulic/Manual
X axis travel	mm	250
Z aixs travel	mm	220
X axis rapid movement	mm	12
Z aixs rapid movement	mm	15
Tool post		Gang tool
Chuck power		Manual
Guide way		Linear way
Net weight	kg	1300
Demension	mm	1850*1300*1700

Standard accessories:

1. GSK TC3 control system; 5.5kw inverter speed spindle motor
2. Spindle three speed manual gearbox transmission; Ø82 spindle hole diameter
3. 4 positions tool turret
4. tool and toolbox
5. leveling pad
6. Ø250 manual 3-jaw chuck
7. Fully closed cover
8. Auto lubrication system
9. Cooling system
10. Hand unit
11. Working light
12. Manual tailstock
13. Technical documents

Optional accessories:

1. 6 positions tool turret
2. Hydraulic tailstock
3. Manual solid chuck change to solid hydraulic chuk
4. Solid hydraulic chuck change to hollow hydraulic chuck
5. FANUC system
6. SYNTEC control system
