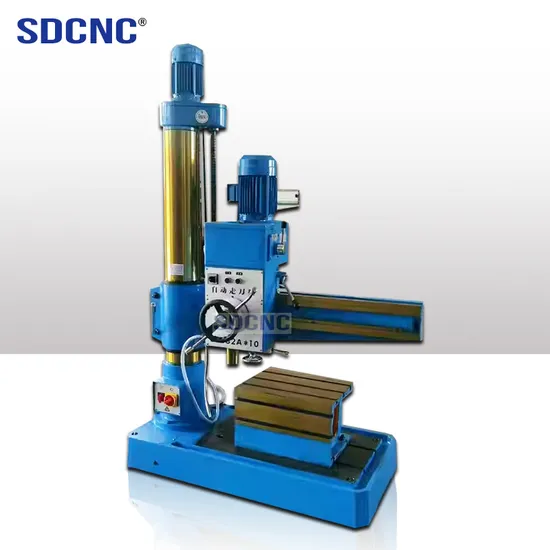

Z3032 High Quality Radial Drill Machine Drilling Machine for Metal Drilling
| US$1,700.00-2,300.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Z3032
Structure
Radial Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Number of Shaft
3
Hole Diameter
50-100mm
Automatic Grade
Manual
Precision
Normal Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Model Number
Z3032
Product Name
Vertical Drilling Machine
Keyword
Z3032 Low Price Radial Drilling Machine for Sale
Keyword2
Z3032radial Drilling Machine
Transport Package
Wood Packaging
Specification
1400*660*2060
Trademark
SDCNC
Origin
Shandong China
Packaging & Delivery
Package Size
1400.00cm * 660.00cm * 2060.00cm
Package Gross Weight
1080.000kg
Product Description
SPECIFICATIONS
Z3032 Low Price Radial Drilling Machine for Sale
The large weight and stiff construction of the drill ensures stability and vibration free operation
The cube table ensures easy adjustment and filling of the workpiece
Height adjustment of the arm by motor
Control panel located on the front of the drill for better performance and ergonomics
The polished surface of the column ensures easy, free and precise travel of the arm
Drill equipped with manual blocking of the head and arm of the column
The large speed range ensures precise and fast processing
| Datas | Z3032×10 |
| Max. Drilling diameter mm | Steel Φ32 iron Φ32 |
| tensile strength Mpa | 500-600 |
| Column diameter mm | 200 |
| Distance between spindle centerline and column mm | 200-910 |
| Horizontal moving distance of spindle box mm | 710 |
| Distance from Spindle nose to base surface mm | 330-1060 |
| Rocker arm lift distance mm | 730 |
| Spindle travel mm | 120 |
| Spindle taper | Morse 4 |
| Spindle speeds r/min | 108 162 262 398 665 1000 |
| Spindle feeder mm/r | 0.10 0.16 0.25 |
| maximum feed resistance of Spindle allows N | 5300 |
| Rocker arm lifting speed m/min | 1.21 |
| Swing angle of rocker arm (°) | + 180 |
| Spindle motor power KW | 1.5/2.2 |
| Liftting motor KW | 0.55 |
| Coolant power KW | 0.04 |
| Net weight kg | 1080 |
| Machine size mm | 1400×660×2060 |
our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
