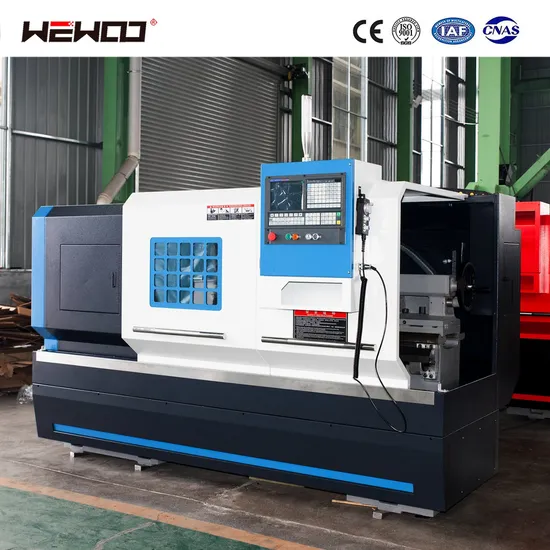

High Precision Metal CNC Engine Lathe Machine Turning Cutting Customized Ck6150

Product Description

High Precision Metal CNC Engine Lathe Machine Turning Cutting Customized Ck6150
Product Description
Guarantee of Quality
The excellent quality is our dignity. All MAXNOVO MACHINE products are produced with high quality standards.
There are same or similar products on the market, however, those products could not meet the WEWOO MACHINE strict quality.
Our products are convincing by outstanding quality, accurate manufacturing and at a cost-efficient price and trustable performance.
Laser Interferometer Testing Equipment Well trained quality control department is the first contact for adhering to quality on site.
They are responsible for the dimensional accuracy of the components as well as their control and the quality of the manufacturing process.
A team of quality control engineers directly influences the production process on site by regular training courses and tests.
What is more, they are closing working together with the technical department in the factory.
Due to this intensive care at the production site we are able to achieve literally the WEWOO MACHINE.
CK series CNC Lathe machine is and economical, practical type machine tools with good quality.The machine has a very wide use which is suitable for internal and external turning, tapering, circular arc, thread, boring, reaming of axis and disk workpiece. It also can achieve non-circular curve machining. You can choose the CNC system and optional accessories according to your requirement
Product application:
Machine can automatically process the inside cylinder surface ,cone surface, circular arc surface ,end face ,such as processing ,and also can process the single and multiple threads in metric ,inch and other standards.
The main performance characteristics:
CNC lathe features
1. A high strength ,widening the carriage ,suitable for heavy cutting
2. Four position electric turret
3. Frequency conversion stepless speed regulation
4. Standard configuration: manual chuck
5. Optional configuration: hydraulic chuck
Product main technical specifications:

Specifications	Units	CAK6140 CAK6140B CAK6140C	CAK6150 CAK6150B CAK6150C	CAK6161 CAK6161B CAK6161C		CAK6166 CAK6166B CAK6166C		CAK6180 CAK6180B CAK6180C
Max.swing over bed	mm	400	500	610		660		800
Max.processing length	mm	750/1000/1500/2000/3000
Spindle taper		MT6(Ø90 1:20 for B)[Ø113 1:20 for C]
Chuck size	mm	C6(D8)[D8]
Spindle bore	mm	52(80 for B)[105 for C]
Spindle speed 3 steps (auto change gear)	rpm	Independent spindle:100-1600 21-1500(162-1500,66-500,21-150)
Tailstock sleeve travel	mm	150
Tailstock sleeve taper		MT5
Position accuracy	mm	±0.015
Repositioning accuracy	mm	±0.006
X/Z axis rapid traverse	m/min	4/6
Spindle motor	kw	7.5				11
Machine dimension for 750	mm	2550x1550x1700			2550x1550x1900
Machine dimension for 1000	mm	2750x1550x1700			2750x1550x1900
Machine dimension for 1500	mm	3250x1550x1700			3250x1550x1900
Machine dimension for 2000	mm	3700x1550x1700			3700x1550x1900
Machine dimension for 3000	mm	4710x1550x1700			4710x1550x1900
Machine weight for 750	kg	2100/2800	2120/2900		2250/2850	2300/2900	2400/3000
Machine weight for 1000	kg	2200/2900	2240/3000		2400/3000	2450/3050	2550/3150
Machine weight for 1500	kg	2300/3150	2350/3200		2600/3200	2650/3250	2750/3350
Machine weight for 2000	kg	2700/3350	2740/3400		2830/3400	2880/3450	2980/3550
Machine weight for 3000	kg	3500/4100	3600/4200		3650/4250	3700/4300	3800/4400

Product standard configuration:

No.	Specifications	Number	Standard configuration
1	Numerical control system	1/set	Wide GSK980/ servo (optional)
2	Chuck	1/set	Manual three jaw chuck K11 250
3	Tailstock	1/set	Manual tail base
4	X -ball screw	1/set	PRC
5	Z -ball screw	1/set	PRC
6	Electric turret	1/set	LD4B-A(6150)
7	X,Z-Lead screw bearing	1/set	PRC
8	X,Z- Coupling	1/set	PRC
9	Spindle bearing	1/set	PRC
10	Fuselage Casting	1/set	High quality resin sand casting
11	Spindle assembly	1/set	Assembly spindle
12	Spindle clamping		Manual chuck
13	Paint	1/set	Color can be configured according to customer requirements, not special requirements according to our standard color configuration
14	Lubrication	1/set	Joint venture (electric lubricating oil pump, lubricating oil circuit is installed)

Detailed Photos
PRECISION CHUCK
Standard with Manual chuck,Optional:hydraulic chuck or pneumatic chuck.
TOOL POST/TURRET
Standard with 4 staion electrictool
post ,6/8 station electric turret is optional.
QUENCHINGMACHINE GUIDE
Super audio quenching guiderail harder;400mm bed width.

SPINDLE
52/80/103 spindle hole,manual 3gears speed ,suitable for powercutting;
independent spindle is optional
TAILSTOCK
Standard with manual tailstock, Optional:Hydraulic or pneumatic type tailstock.
CNC CONTROLSYSTEM
Standard :GSK ,
Optional :Siemens,Fanuc,Syntec, Mitsubishi and others.

Company Profile

FAQ

1:How can I choose the most suitable machines ?

A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .

You can also send us the products drawing ,we will choose the most suitable machines for you .

2: What's your main products of your company?

A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .

3: Where is our factory located? How can I visit there?

A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.

4. What is your trade terms?

A : FOB, CFR and CIF all acceptable.

5: What's the Payment Terms ?

A : T/T ,30% initial payment when order ,70% balance payment before shipment ;

Irrevocable LC at sight .

6: What's the MOQ?

A: 1 set .(Only some low cost machines will be more than 1 set )
