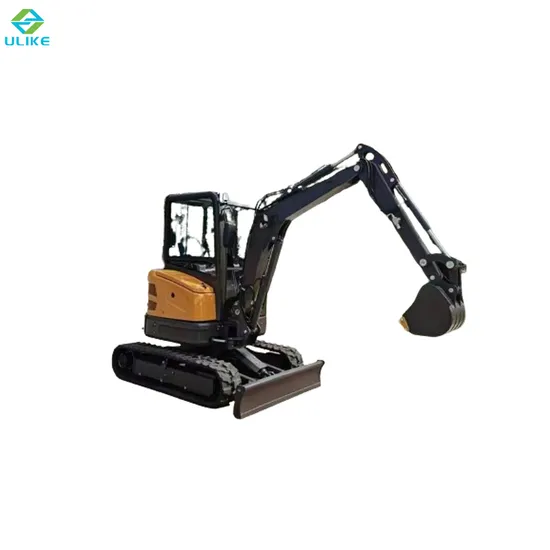

China Supply Mini Excavator Engineering Machinery Micro Crawler Digger Excavator

Product Description

Hot Sale High Quality Engineering Machinery Crawler Excavator Product Description
A crawler excavator is a powerful construction machine equipped with tracks for stability and maneuverability, ideal for digging, lifting, and transporting materials on rough or uneven terrains.
1-KUBOTA D1105 engine , 14kw/2200rpm,EPA4,Euro 5
2-China brand pump
3-China brand valves
4-China brand slewing motor
5-china brand driving motor
6-closed cabin, with cabin
7-Hydraulic pilot servo operation system
8-Rubber track :300mm
9-With Hydraulic hammer pipeline system
10- Bucket capacity: 0.1m³
Product Parameters

Quotation sheet of JH27 Crawler Excavator
Engine	Emission Standard	Euro 5 /EPA4
	Make	KUBOTA
	Model	D1105
	Power /Rotation speed	14kw(19HP)@2200rpm
	Number of cylinder	3
	Type	Water cooled, in-line,4-stroke,mechnical pump. Naturally aspirated
	Max. torque of engine	70.3Nm/ 1600rpm
	Displacement of engine	1.123L
	Engine oil capacity	5.1L
Track System	Maximum Travel speed(High-Low speed)	2.6/4.5km/h
	Width of track shoe(Rubber )	300mm
	Carrier roller(one side)	1
	Support wheel(one side)	3
Performance Parameter	Standard Bucket capacity	0.1m³
	Width of standard bucket	500mm
	Swing speed	10 rpm
	Max. Grade ability	58%
	Maximum Bucket digging force	23.5KN
	Maximum Arm digging force	14KN
	Hydraulic system pressure	20.5Mpa
	Ground pressure	24Kpa
	Machine weight	2750kg
	Fuel tank capacity	23L
	Hydraulic oil tank capacity	24L
	Flow of main pump(Variable piston pump)	61.6L/ min
Machine Size	Overall dimension (L*W*H)	4195mm*1550mm*2480mm
	Axle base(Track length on ground)	1565mm
	Track gauge	1250mm
	Min.Ground clearance	286mm
	Swing radius at tail	860mm
	Boom length	2200mm
	Arm length	1300mm
Working Range	Maximum Digging height	4427mm
	Maximum Dumping height	3005mm
	Maximum Digging depth	2830mm
	Maximum Vertical digging depth	2530mm
	Maximum Digging radius	4835mm
	Min .swing radius at front	2160mm
	Maximum Lifting height of blade	308mm
	Maximum Cutting depth of blade	363mm
	Boom swing angle(Left)	69°
	Boom swing angle(Right)	45°

Detailed Photos
Related Products
Company Profile
After Sales Service

Before-Sale	After-Sale
1. Airport pickup, Booking hotel.	1. Visiting the famous scenic spots in zhengzhou.
2. Visiting our company yard, Enjoying Free test drive.	2. 1-Year warranty for All the equipments
3. Different machines to compare with each other.	3. A lifetime of parts and technical support.
4. Interpreting mechanical configuration information in detailed.	4. Fast parts deliver and quick reply for any feedback .

Packaging & Shipping
Packing and Shipping
01 CONTAINER: Put the machine into container, Maybe need disassemble, cheapest freight and fast shipping ;
02 FLAT RACK: Often used to ship medium equipment,max load-bearing is 35tons.
03 BULK CARGO SHIP: Which is better for bigger equipment,no need disassemble.
04 RO - RO :The machine is driven directly into the ship and does not need to be disassembled. FAQ
1. Who are we?
Ulike industry is an international trade company established in 2006 and located in zhengzhou city, the center of china.Our company is one of the most powerful and potential commercial vehicles, used engineering equipment & construction Machinery suppliers in China, which has abundant experiences in exporting the machinery to the overseas customers. We win a high admiration and is widely trusted in Africa, Middle East, West Asia, South East and so on! The most important thing is that we have ability and would like to provide you high-quality products at competitve price all the time.
2. How can we guarantee quality?
Make contract with customer.
Accept visting our yard all the time.
According to the customers request to do certificate.
3. What is your delivery time?
A: The delivery time is within 15 working days.
4. What is the payment term?
A: Normally we accept 30% deposit by TT for production, 70% balance by TT before shipping. Also can be the terms according your requirements
Currency: USA.EURO.CNY.
5. Why choose us?
More than 15 years exporting experience with Asia, Middle East, South America and Australia all around the world. high-quality resources and channels provide the most cost-effective products, and 24 hours' service.
