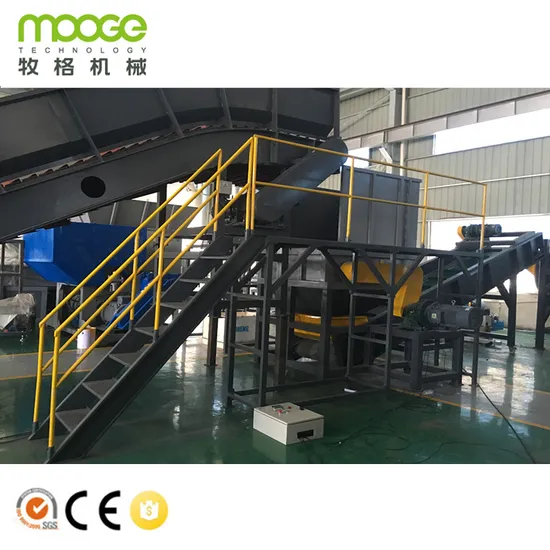

PET Bottle Washing Line Double Shaft Shredder Crushing Machine

Product Description

Product Overview
Waste Plastic Recycling Plant Scrap Pet Bottle Recycle Washing Line
This MT-series Waste Plastic Recycling Plant Scrap Pet Bottle Recycle Washing Line is mainly used to recycling the waste PET bottles, water bottles, cola bottles, PET sheet and PET packing containers, etc. The Waste Plastic Recycling Plant Scrap Pet Bottle Recycle Washing Line can easily remove the labels, caps, rings, glue, dirties and other impurities off from the pet plastic, finally we will get ideal PET flakes with good quality for reuse.
Product Specification
The Waste Plastic Recycling Plant Scrap Pet Bottle Recycle Washing Line we made with capacity from 500kg/h to 5000 kg/h.
We can design the machine layout into "L" or "U" shape according to buyer's actual factory area and requirements.

Model	Capacity	Installed Power	Steam Use	Water Supply	Manpower	Area Required
MT-500	500 kg/hr	190 KW	Optional	4-5 m3/hr	4-6 Person	60*5*5 m
MT-1000	1000 kg/hr	260 KW	Optional	5-7 m3/hr	8-10 Person	80*8*5 m
MT-2000	2000 kg/hr	400 KW	Suggest Use	10-15 m3/hr	10-12 Person	80*8*5 m
MT-3000	3000 kg/hr	600 KW	80,000 Kcal	20-30 m3/hr	12-16 Person	100*8*10 m
MT-4000	4000 kg/hr	800 KW	100,000 Kcal	30-40 m3/hr	15-20 Person	135*10*10 m
MT-5000	5000 kg/hr	1000 KW	120,000 Kcal	40-50 m3/hr	15-20 Person	135*10*10 m

We adopted well-known brand for the main motor, necessary parts of the machine.We manufacture the machine strictly according to the technical drawings and we can also make the components as buyer request

Item	Specification
Raw Material	Waste Rigid Plastic PET bottles, PET sheet, PET packages, etc
Finished Product	Clean dry plastic flakes (size can be recycled as buyer request)
Main Machine List	Bale Opener, Trommel, Label Remover Machine, Sorting Belt, Pre-washer Machine, Belt Conveyor, Crusher, Cold Washing Tank, High Speed Friction Washer, Hot Washing Tank, Centrifugal Dryer, Zig-zag Air Classifier, Color Sorter, Packing Silo
Machine Material	Machine frame is made by carbon steel, the machine washing part is made by SUS 304
Main Components	NSK/SKF bearing, TTO oil sealing, Guomao reducer,etc.
Electric Components	ABB/Delta inverter, Omron temperature meter, Schneider contactor, Chint switch, Siemens made in China motor, etc.
Warranty Period	One Year from the Machine Operation within 18 Months from the B/L Date
Turnkey After Service	Technical Support including the machine layout, electric diagram, working manual, engineer available to buyer's factory overseas for helping installation, commissioning, training workers, etc. consumable parts provided; 24-hours online after sale service;

Features At-A-Glance
Bale Opener Machine
Function: Open the pressed PET bales >With 4 roller cylinder feeding the bottles equally, claw steel is very strong with 20mm thickness.
>Machine chamber made by solid strong steel, chamber size 1.6*1.6m (depth x width).
>We can make it with forklift working platform to push the bales, or with a hopper for temporary store the bales.


Label Remover Machine
Function:remove the labels from the bottles >Blades made by tungsten carbide and are fixed by screw easy to adjust and replace
>The barrel designed with hydraulic system to lift up the chamber which is convenient to replace the blades
>The machine bottom with holes to drain out liquid which contained in the bottles, good for machine use

Plastic Crusher Machine
Function: crushing the PET bottles to small flakes. >With water inlet doing the wet grinding which can extend the blades lifespan, reduce the dust generation.
>Crusher upper hopper opened by screw motor which save manpower
>Bearing house is installed outside of the crusher chamber so no dirty goes inside for longer use.


Floating Washing Tank
Function: with cold water washing out dirty from the flakes >With the top rollers automatically take out the caps and rings and other impurities but with less water taken out
>Rotor shaft made by seamless steel tube.
>Screw is made by stainless steel, we have different model of floating washing tank according to your requirements.


Hot Washing Tank
Function: with hot water washing to remove oil/glue and other dirty from the flakes.
>The tank made with insulation layer to keep the hot water temperature and save energy.
>Feeding caustic soda or chemical detergent to washing the bottle flakes for better effect
>The water is heated up by steam, steam is generated by the steam boiler


Horizontal Dewatering Machine
Function: take out dirty and remover water from the bottle flakes >With high raotary speed reach up to 1500rpm with better effect for removing the water
>With the famous SKF roller bearing fixed outside for long lifespan
>Inside with mesh layer made by SUS304, which is also cleaned by the water spray system


"Zig-zag" Label Separator
Function: The fine dust separator machine will remove the final labels from the flakes to reduce the PVC content. >Blower with air valve to control the air flux of blower.
>Bottom with air blower and pipe for collecting the pet flakes
>Zig zag main chamber one set made by stainless steel and with visible window
