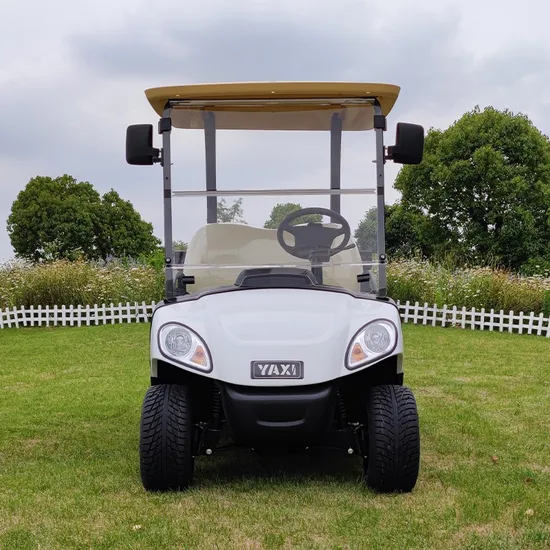

Cheap New Model 2 Seater Golf Cart Lsv Ptv

Product Description

Key Components
Chassis	High strength carbon steel integral frame, phosphating electrophoretic rust prevention treatment, high strength, corrosion resistance						standard
	New design, more strong
Battery	Maintention-free Battery, 48V150Ah						standard
	(with MSDS certificate) LiFePO4 Lithium Battery (With Certificate)						Optional
	72V/125Ah ternary lithium battery						Optional
Motor	Three asynchronous AC motors,5kW						standard
	Three asynchronous AC motors,7.5KW						Optional
Controller	inpower:Inpower-3528 for 48V systems Inpower-3818 for 72V systems						standard
	Curtis-1234SE or SME						Optional
Performance
Allowable load	250kg(2people)						standard
rang at max speed	60km~100km(Flat road, no load)						standard
Max Speed	advance≤30km/h; retreat≤12km/h						standard
Climb ability	20%(≈11°)						standard
Dimensions
Overall dimensions	2350*1200*1850						standard
Min ground clearance	170						standard
Wheelbase	1700						standard
Front wheel tread	960						standard
Rear wheel tread	1000						standard
Body
Body	PP injection molding front and rear cover, automotive color baking process, paint surface added UV components						standard
Roof	Injection molding ceiling						standard
Steering wheel	Carbon fiber						standard
Windshield	foldable						standard
Roof strut	High strength carbon steel profile						standard
Seatbelt	2-point seatbelt						standard
seat	Artifical leather						standard
Backrest and Cushion	Waterproof seat cushion and backrest						standard
armrest	Black PP Plastic						standard
Bottom shell	PP Plastic						standard
Back Basket	PP Plastic						standard
Floor	Non-slip floor mat						standard
Dashboard	Forward/Reverse switch F/ R Switch Battery capacity display SOC						standard
Electric System
Lighting system and horn	2 headlights, 2 front turn signals,Front LED Light, 2 taillights( each combined 1 brake light with 1 turn signal), horn.						standard
Reversing Alarm	Yes						standard
Charger	48V lead-acid/lithium special car charger						standard
Steering system
streering system	Self-adjust rack and pinion						standard
Brake System	Four wheel hydraulic brake						standard
Suspension	ront suspension: front wheel mcpherson independent suspension; Rear suspension: rear bridge longitudinal plate spring suspension;						standard
Tire	Iron Wheels, 215/40 -12 tires;						standard
Body,Seat,Rim Color	Body:Ocean blue Cushion:Black Rim: Black						standard
Optional parts	Indoor lighting						Optional
	Endoscope						Optional
	Front trailer hook						Optional
	Front bumper						Optional
	down side Ambiance lamp						Optional
	up side Ambiance lamp						Optional
	Sand Bottle x1						Optional
	Refrigerator x1						Optional
	Seat with headrest x 1 pc						Optional
	Monochrome embroidered seats x 1 pc						Optional
	Seat embroidered LOG x 1 pc						Optional
	Soft closure						Optional
	Up Front						Optional

Trail-blazer Manufacturing is a vehicle manufacturer specializing in personalized customization and refitting. The company has a strong background in automotive and all-terrain vehicle design technology, and broad ideas for new product development. Trail-blazer has rich supply chain resources and is good at cross-border integration of supply chains Resources, to truly achieve the industry's most cost-effective products and the most professional services.
The price of our company's electric low-speed vehicles ranges from US$2,000 to US$7,000. With rich OEM experience and ODM capabilities, partial or complete vehicle customization can be realized. As a manufacturer that constantly develops new products,we are always at the forefront of the industry. And successfully launched a more off-road style appearance and real 4-wheel drive in 2023, which makes our products more off-road capable.
Our factory believes in the business philosophy of "independent research and development, leading technology, first-class service, and integrity-based". We have launched a series of electric special vehicles and obtained several patents. The products are exported to more than 30 countries on five continents around the world, and have won unanimous praise. FAQ
Q1. Do you accept special request to customize the vehicles ? Answer: we could customize vehicles as per customer's special request with reasonable cost and delivery time. Q2. What is your warranty term? Answer: We provide 1 year warranty. for failed part under warranty, if it can be repaired at your side and the repair cost is
lower than the valve of the part, we will cover the repair cost; otherwise, we will send replacements and cover the freight cost if any. Q3. Do you provide after service spare parts? Answer: Yes, we provide all the spare parts to our vehicles, even 8 years after we stop the production of the model. For your easier working to select the spare parts, we also supply parts list for you to choose the parts from . Q4. Do you provide technical support? Answer: we could customize vehicles as per customer's special request with reasonable cost and delivery time. Q5. Do you provide vehicle assembly service if we buy the vehicles in SKD or CKD ? Answer:we will supply the vehicle assemble guide manual , When the vehicle is in SKD way, the reassembly is just bolt and nut work, it is not difficult at all. Unless you have the assembly capability, we do not sell the vehicles in CKD way. If you do have bigger volume, we can give instructions via different ways when needed. Q6. Do you accept OEM order? Answer: Yes, we will accept. Q7. What are your terms to be your agent/dealer in my country? Answer: We have several basic requirements, firstly you shall be in electric vehicle business for some time; secondly, you shall have the capability to provide after service to your customers; thirdly, you shall have the capability to order and sell
reasonable volume of electric vehicles. Q8: What is your payment term? Answer: For new customers, our typical payment term is 'T/T 30% deposit against order confirmation, T/T 70% before container loading' Q9: Why should you buy from us not from other suppliers? Answer: Our factory has strong manufacturing capacity, high quality control of products, cost control ability, who can offer high quality reasonable price products.
