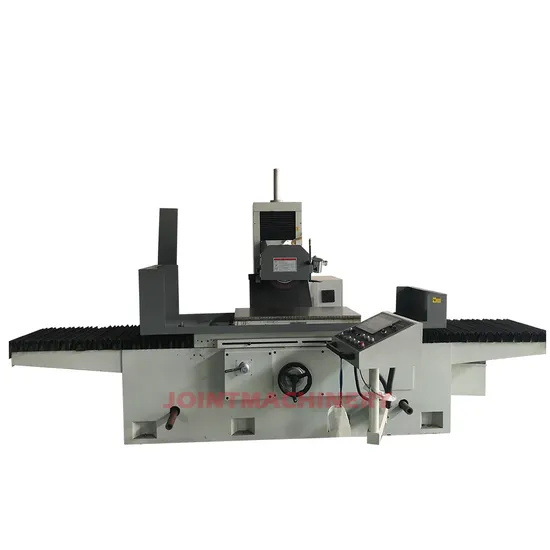

Advanced Metal Grinder Machine with High Precision Grinding Capability

Product Description

1.Highly Rigid Structure
Crafted with unwavering strength and stability, the base column structure of this exceptional machine is designed for unmatched durability. The primary castings are forged using high-strength, wear-resistant cast iron, undergoing multiple aging treatments to eradicate internal stresses completely. The guide rails boast superior wear resistance, ensuring unparalleled precision and longevity.
2.High Quality Grinding Head
This machine features a state-of-the-art spindle system from a renowned Taiwanese supplier, celebrated globally for precision. Equipped with P4-level ultra-precision bearings, the spindle maintains a taper end deflection within 2µm. The high-speed V-3-level low-vibration motor ensures smooth operation with minimal noise and vibration, handling high-load capacities effortlessly. Perfect for heavy cutting and diverse molding grinding tasks.
3.High-Precision Feed Structure
Engineered for precision, the front and rear slides are reinforced with elite imported TUR CITE-B guide rail wear-resistant sheets. Meticulously scraped for accuracy, the column and spindle head guide rails offer exceptional precision, making them ideal for intricate groove grinding and precision forming.
4.Automatic Lubrication System
As soon as the spindle activates, the lubrication pump seamlessly kicks in, automatically lubricating all screws and sliding surfaces. This sophisticated system minimizes wear, ensuring sustained working accuracy and longevity.
5.Safe Dust Protection System
Ingeniously designed dust-proof components are strategically positioned between each moving section. Sheet labyrinth rubber guards provide robust protection, keeping the guide rails secure and maintaining a pristine, dust-free, and water-free interior environment.

1. Grinding Head
The manual grinding head is a masterpiece of precision, featuring a rapid lifting mechanism and a robust built-in motor. Its spindle showcases exceptional rigidity and high precision, setting new standards in grinding technology.
2. Electromagnetic Chuck
Engineered for simplicity and efficiency, the electromagnetic chuck offers a seamless operation that saves time and is capable of continuous use for over 20 hours.
3. Metal Hand Wheel
Designed for precision, the high-precision metal feed handwheel offers effortless control. This top-tier grinding model achieves an impressive accuracy of 0.002MM.
4. Double V Guide Rail
Incorporating Double V guide rails longitudinally and a single V flat guide rail laterally, this hydraulic-driven system ensures unmatched precision.
5.Resin Sand Cast Iron Body
With superior stability and strength, the resin sand cast iron body undergoes meticulous artificial aging treatment, guaranteeing the dimensional accuracy of the finish.
Advanced Metal Grinder Machine with High Precision Grinding Capability

Model			5010AHR
Table size		mm	1000*500
X axis travel		mm	1100
Y axis travel		mm	540
Table side way			Slide way
Max distance from spindle center to working table		mm	700
Auto crossward feed			0.1-10
Crossward feed of hand wheel		1 Rev	5
		1 Div	0.02
Auto vertical feed			-
Vertical rapid moving feed			180
Vertical feed of hand wheel		1 Rev	0.4
		1 Div	0.001
Rotation speed	50HZ	rpm	1450
	60HZ	rpm	1750
Grinding wheel size			Φ355×(20-40)×127
Spindle motor			7.5*4
Hydraulic motor			3*6
Crossward driven motor			0.5*4
Vertical driven motor			0.1*4
Coolant pump motor			0.12*2
Dust-clean motor			-
Dimension (L*W*H)		mm	2970*2220*2050
Net weight		kg	3900
