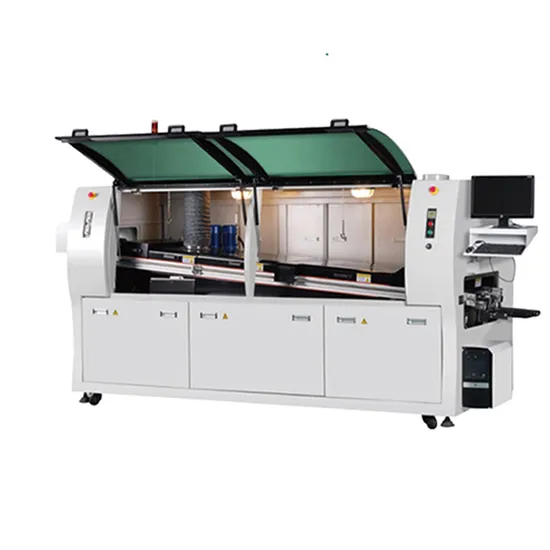

Wave Soldering 2023 High Quality Factory Price PCB LED Production Line Wave Soldering Machine

Product Description

Product introducion 1.Product introducion:

Wave soldering SD-300 series parameters
Features:
Appearance streamlined design, internal modular design, suitable for SMT and straight element lead-free welding. The spray system uses a centrifugal fan to prevent the flux from dripping on the PCB. Fluder buffer tank sensor external, more reliable and durable. Standard cold air knife to prevent flux fog spread outward, reduce pollution. Double-wave control adopts the infinite frequency conversion technology, which can control the wave peak height independently. 1 / 4HP high power peak motor, maximum peak height up to 15mm. With overtemperature sound and light alarm and emergency braking system, all motors have overload guarantee. The transportation system adopts infinite electronic adjustment and closed-loop control, with stable and accurate speed. Pressure assist device is provided at the inlet end to avoid slipping when the PCB enters. The forced natural cooling system can meet the cooling slope requirements of lead-free process. The track angle is manually adjusted for easy operation. The flux nozzle is driven by a stepper motor to ensure uniform flux coating. The modular design of the spray system, the nozzle is always vertical track to ensure good penetration of PCB. The preheating zone uses hot air heating, the whole process of high temperature, glass protection, temperature stability. The preheating system is controlled by PID, and the temperature curve is stable, which is convenient to find the best setting for various lead-free processes
2. Product parameters:

Complete Machine Technical Parameters
PCB adjustable width	Max.50-300mm
PCB transport height	750±50mm
PCB transport speed	0-2.0M/Min
PCB transport Angle (welding inclination)	3-7 Degrees
PCB transport direction	L→R/R→L(optional)
Component height limit on PCB board	Max.80mm
Length of preheating zone	1200m
Number of preheating zone	3 segments
Preheating zone power	9.0KW
Preheating zone temperature	Room temperature of ~120ºC can be set up
Heating method	Hot air 120 high temperature motor
Number of cooling zone	1 pcs
Cooling-down method	Axial flow fan cooling
Solder type	Lead-free solder / regular solder
Tin furnace power	10KW
Tin furnace dissolved tin amount	Approx.280KG-300KG
Tin furnace temperature	Room temperature ~300ºC, control accuracy ± 1ºC
Temperature control mode	P.I.D+SSR
Control mode of complete machine	Siemens PLC + Siemens temperature module control
Flux capacity	Max5.2L
Flux flow rate	10-100ml/min
Spraying mode	Stepper driver and stepper motor + Taiwan qibao nozzle
Power supply	A 3-phase 5-wire system of 380V
Start up power	Max. 10KW
Power for operation	Approx.6-8kw
Air source	4~7KG/CM²
Frame size	L3000×W1200×H1650MM
Dimensions	L3600×W1300×H1650MM
Weight	Approx.1000kg
Spray nozzle moving system	Driven by stepper motor, the moving speed is average, stable and reliable
Temperature control mode	Siemens temperature acquisition module, PID temperature control is accurate and reliable, imported thermocouple detection system, with thermocouple abnormal alarm function.
Adjustment mode	Manual adjustment
