Ball Valve Ball Lapping Machine Polishing Grinding Surface Q300

Product Description

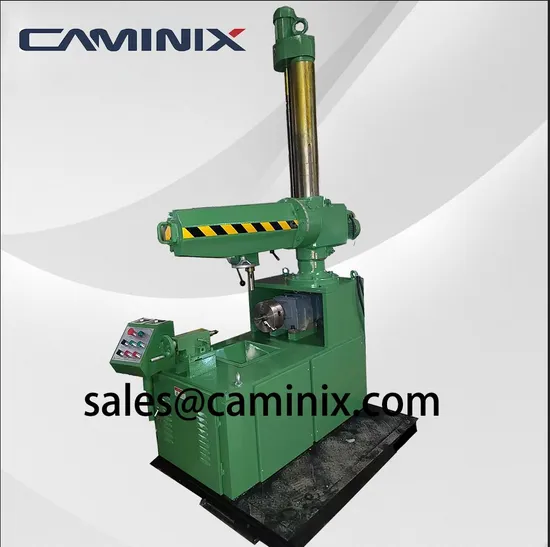

CAMINIX NC type ball valve grinding machine
Suitable for grinding of spherical surface;
The center line of rotation of the sphere and the center line of the grinding head are perpendicular to each other, and the movement track of the grinding tool on the grinding head is an ideal spherical surface;
Easy and simple operation, low labor intensity and high production efficiency;
The grinding head and the main shaft are connected flexibly, which can automatically adjust the specific pressure value of the grinding surface and eliminate the clamping error or other process errors;
The machine has multi-station forms, which can be selected according to user requirements
1. Lifting reduction unit 2. Upright column 3. Copper sleeve 4. Key 5. Brake
6. Upright column 7. Reducer 8. Rolling disc 9. Adjusting taper sleeve 10. Bearing
11. Lifting screw 12. Lifting nut 13. Beam 14. Hexagon socket nut
15. Universal coupling 16. Grinding disc 17. Chuck 18. Chuck adjusting nut
19. Clamp shaft 20. Tray 21. Liquid return pipe 22. Grinding head reduction unit
23. Adjusting handwheel 24. Bearing 25. Seven-shaped iron 26. Small handwheel
27. Small screw 28. Small screw nut 29. Workpiece (ball) 30. Chuck adjusting handle
31. Ejector pin 32. Brake 33. Tailstock 34. Frame
35. Liquid injection pipe
Key Features:
Designed to grind a variety materials of the ball ,carbon steel, stainless steel,tungsten carbide coating etc
A105,A182 F304,A182 F316, A 182 F304L, A182 F316L, 17-4PH,MONEL, F51, ceramic balls etc .
Size range:2''-20'' DN50-DN500
Control System: Manual Type
Electrical parts: Chnt China
Hydraulic Station : Chinese brand
Door to door service available based on additional charges
Multi-Station Design Available

Model : CMX-Q100 2'' 3'' 4''
Model : CMX-Q200 4'' 6'' 8''
Model : CMX-Q300 8'' 10'' 12''
Model : CMX-Q400 12'' 14'' 16''
Model : CMX-Q500 16'' 18'' 20''
We also have other machines for selection. Ball Valve truning machine, Grinding Machine, Match Lapping Machines etc .
