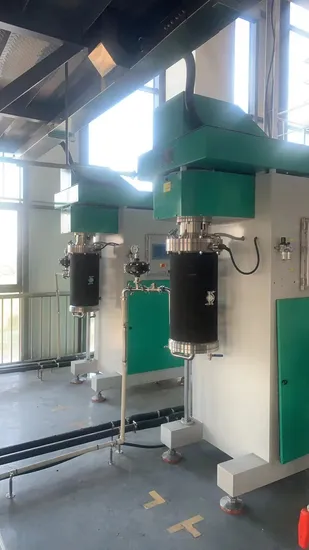

Factory Price Lpm-15 Vertical Screenless Rod and Pin Type Nano Ceramic Environmentally Friendly Sand Mill

Product Description

Lab Vertical Nano Super Fine Powder Grinding Machine Sand Mill for Alumina Oxide
Product Description
The LPM series sand mill has been specially designed and optimized for reliable application of 0.05-2.0mm small grinding beads. Innovative concepts and specially designed functional components can achieve extremely high production capacity
Main Product Description:
Grinding fineness: 50-1500nm
Grinding medium: 0.05-2.0mm
Features:

1. The driver and rotor are arranged vertically to avoid any bending moment on the drive shaft, making operation more stable and reliable
2. The special structural design of the sieve free separator gives it strong centrifugal force, solves the problem of blockage, and is a prerequisite for the reliable use of small grinding beads
3. Special rod pin optimization design allows small grinding beads to be thrown in the outer ring grinding area, thereby achieving maximum grinding efficiency
4. Vertical unique vertical reverse discharge design, achieving stable high flow discharge
Detailed parameter

Model/Parameter	Motor power (Kw)	Grinding chamber volume (L)	Grinding medium (mm)	Feed flow (L/h)	Cooling water consumption(m³/h)	Weight (kg)
LPM-1	7.5	1	0.05-2.0	200	0.6	380
LPM-6	15	6	0.05-2.0	1000	1.5	1300
LPM-15	37	15	0.05-2.0	2000	2	1800
LPM-30	45	30	0.05-2.0	4000	2.5	2200
LPM-60	90	60	0.05-2.0	8500	4	3600
LPM-150	250	150	0.05-2.0	13000	6	7500

Product Application
Specially designed for laboratory and small-scale testing projects, including nanomaterials, silicon carbon negative electrodes, lithium iron phosphate, ink, alumina, oxide, silicon dioxide, ATO, ITO, graphene, etc. Related Products
NCP series nano ceramic rod pin sand mill Direct drive sand mill series

LPM series vertical nano ceramic sand mill NCT series nano ceramic turbine sander
Company Profile
Dongguan Yifu Machinery Technology Co., Ltd. was founded in 1999. For more than 20 years, we have been providing our customers with comprehensive solutions for nanomaterial grinding machines and systems with the concept of "respecting the industry and exclling in the industy, honesty and standing in the world". At present, Guangdong headquarters 13,00 square meters of factory, Hubei Xiangyang under constuction 100 acres of production base and more than 40,000 square meters of leased factories, nearly 100 patents, hundreds of professional teams.
At present, the company's equipment has the characteristics of large-scale, intellient, energy-saving, etc, there are turbine, rod pin, vertical, direct drive and other series of sand grinding machines, the capacity ranges from 1L to 1000L, with stable operation, high efficiency, low energy consumption, large flow, ultra-fine, pollution-free and other characteristics.
Leading the industry to introduce energy-saving sand mill, vertical sand mil direct drive sand mill and so on. Yyfu Machinery Technology Co.,ltd. has been recognized by well-known industry customers in the field of new energy materials such as lithium iron phosphate, conductive agentand sodium material.There are dozens of large-scale cooperation cases, comprehensively enabling the development of the new energy industry.
Leading the industry towards full intelligent and energy-saving grinding production, Yifu Machinery Technology Co., Ltd. will continue to maintain the pursuit of grinding accuracy, improve the value of quality, and create China's first-class grinding system integrated service provider.
FAQ
Q1: How do l order?
A: Make an inquiry to us →Inform us of the use scenario → Receive our product design recommendation→Discuss details→Confirm sample → Sign contract/deposit→ Mass production →Goods ready -→Balance/delivery →Further cooperation.
Q2: What about your warranty?
A: First of all, before dellvery, our in-house QC will do a comprehensive inspection to show the condition of the goods by testing operation or trial operation.
Secondly, our warranty is 12 months from the time of arrval. If the equipment fail, such as the motor, reducer or inverter is damaged, we will replace and repair it free of charge. In case of damage caused by operational error, we will provide technical guidance to customers.
Q3: How about your after-sales service? What should I do if something goes wrong during use?
A: Whether it is under warranty or not , we will first help you figure out the essence and solve the problem through video conferencing. lf it is under warranty, no doubt we will take care of the problem and provide a new replacement free of charge. If it exceeds the warranty period, we will replaceit for you with it cost price, find the most favorable mode of transportation, thereby solving the problem, maximizing your cost savings at the sametime, and provide lifelong maintenance advice and technical guidance.
Q4: What are your company's strengths? Because l see that most of the products look very similar.
A: Yes , you're right. Similarity of appearance is a problem.
In this matter,we mainly do two aspects of work: firt, to ensure the quality of products; n the other hand,improve the professional quality of salesrepresentatives, improve their communication skils, and provide customers with more additional value beyond the produt
Q5: How can l trust you? After all, this is our first cooperation, but I must give you the money before you ship the goods.
A: Yes, it's really not easy to choose a reliable supplier among so many suppliers.
Because you may have to consider many factors, such as quality safety, price, delivery after-sales service and so on. But don't worry, our company has more than 20 years of experience in this field and we have taken all the factors into consideration for you
The only thing you need to think about is how to continue to grow in your market, and we'll do the rest.
Q6: Can it be customized?
A: Yes, the equipment can be customized according to customers' requirements.
