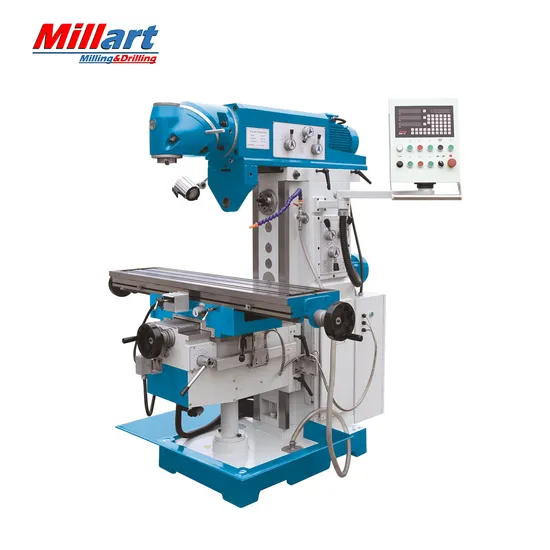

Universal Milling Machine XL6430 Vertical Horizontal Milling Machine
| US$6,000.00-8,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
XL6430
Structure
Bed type
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Table Size
1270*300 mm
Arm Travel
400mm
Spindle Taper
ISO40
Transport Package
Wood Case
Specification
CE ISO9001 RoHS
Trademark
L&T
Origin
Tengzhou China
HS Code
8459590000
Production Capacity
200 PCS/Month
Product Description
Universal Milling Machine (XL6430)Vertical and Horizontal Milling MachineFeatures:
1. X Y Z auto feed by Servo Motor
2. Universal swivel head can mill any angle surface through front half-sphere
3. Horizontal spindle with large speed range, suitable for low-speed heavy load process and high-speed precision process
4. 3-axis Digital Readout, Rotary table, Protective cover are available as optional
Technical Parameter:
| Model | Unit | XL6430 |
| Table size | mm | 1270*300 |
| T-slots(NO./width/pitch) | mm | 3*14*80 |
| Max table travel - X/Y/Z | mm | 720/300/400 |
| Spindle taper | - | ISO40 |
| Distance between spindle center line and table surface | mm | 75-475 |
| Distance between spindle nose and table surface | mm | 260-660 |
| Distance from horizontal spindle center line to arm surface | mm | 180 |
| Spindle speed range | r.p.m | (V)11 steps 45-1660 (H)12 steps 35-1500 |
| Arm travel | mm | 400 |
| Table feed(X/Y/Z) | mm/min | No finite |
| Table rapid speed | 1000/1000/750 | |
| Main motor power | Kw | 2.2(V)/ 3(H) |
| Torque of X/Y/Z axis AC servo motor | Nm | 10 |
| Cooling pump motor power | W | 40 |
| Flow of cooling pump | L/m | 12 |
| Overall size | mm | 1720*1680*1860 |
| Net weight | Kg | 1850 |
Standard accessories:
| Draw bar | Spindle brake |
| Coolant device | Ball screws in all axis |
| Coolant tray | Automatic central lubrication |
| LED machine light | Mill arbors |
| Universal mill head | Tools |
Optional accessories:
| 3-axis digital readout | Horizontal & vertical rotary table |
| Mill chuck set | Clamping kit set 58-pcs |
| Machine vice | Universal dividing head |
