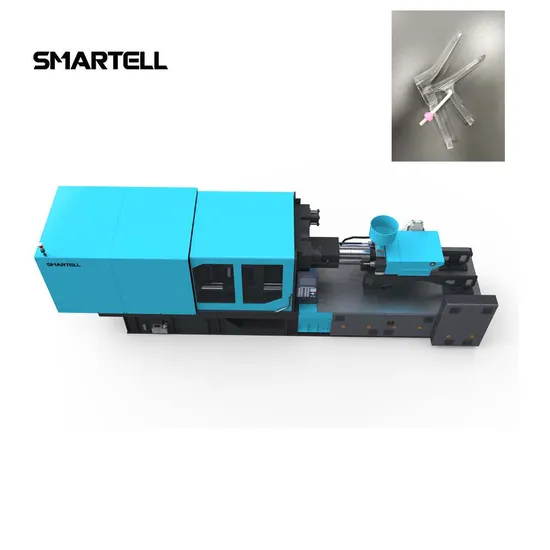

Medical Product Dildos Making Line Injection Machine
| US$28,800.00-49,800.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
SMT
Structure
Horizontal
Plastic Type
Thermoplastic
Clamping Way
Hydraulic
Automation
Automatic
Marketing Type
Hot Product
Core Components
Motor, PLC, Engine
Material
Stainless Steel
Applicable Industry
Manufacturing Plant
Voltage
380V
Trademark
SMARTELL
Origin
China
HS Code
8477101090
Production Capacity
20sets/Month
Product Description
Injection Molding Machine in ChinaConsist of plasticizing system, injection system, the clamping system and transmission system of plastic injection molding equipment. Our company use die casting technologies applied to injection molding machines for many years.
In mechanical, hydraulic, electric control, etc for comprehensive improvement, perfect combination of dynamic pressure casting and speed.
Advantage:
1. Clamping Unit
Reliable 5-pint twin-toggle locking mechanism; Platens are designed under Finite Element Analysis; High speed clamping is stable while low pressure protection is accurate; Automatic lubrication system; Oil shortage alarm; Ejector stroke precisely controlled by transducer; Plenty of ejector modes for you to choose.
2. Injection Unit
Double-cylinder balance injection system; Shot weight is precisely controlled by transducer;
Using hydraulic motor to carry out variable speed.
3. Hydraulic Unit
Domestic high-tech divided hydraulic system; Hydraulic safety device; Imported high quality
hydraulic components are applied.
4. Electric Unit
Special controller for plastic injection molding machine; All the main components are imported from famous company, for example: TE(France), Gefran(Italy),etc.
| ITEM/ MODEL | UNIT | SMT-1016 168T | SMT-1020 208T | SMT-1025 258T | SMT-1028 288T | |||||||||
| Screw Diameter | mm | 40 | 45 | 48 | 45 | 50 | 55 | 55 | 60 | 65 | 60 | 65 | 67 | |
| Screw L/D Ratio | L/D | 22.5 | 20.3 | 19 | 23.1 | 20.6 | 18.7 | 21.5 | 19.7 | 18.2 | 21.7 | 20 | 19.4 | |
| Clamping Force | KN | 1680 | 2080 | 2580 | 2880 | |||||||||
| Opening Stroke | mm | 420 | 475 | 545 | 610 | |||||||||
| Hydraulic Ejection | KN | 45 | 62 | 62 | 70 | |||||||||
| Ejector Stroke | mm | 140 | 165 | 165 | 165 | |||||||||
| Motor Power | KW | 15 | 18.5 | 22 | 30 | |||||||||
| Heater | KW | 10 | 16 | 18 | 18 | |||||||||
| Machine Dimension | m | 5.2x1.3x2.1 | 5.7x1.4x2.3 | 6.3x1.5x2.3 | 6.5x1.6x2.2 | |||||||||
| Machine Weight | t | 4.8 | 6.6 | 7.8 | 8.5 | |||||||||
