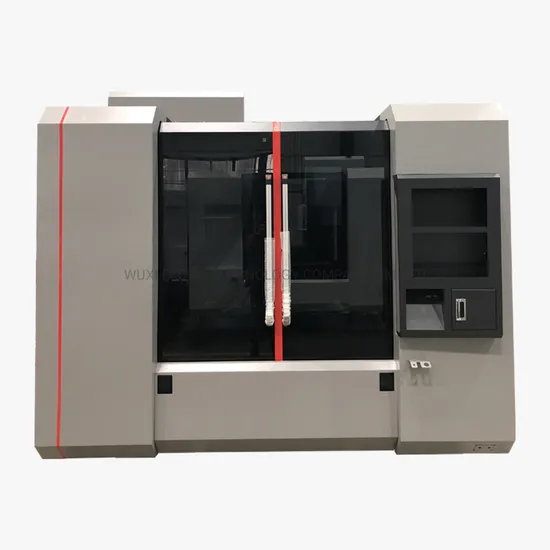

Lj-L1270 3 Axis Machining Center Frame Machine Casting CNC Vertical Milling Machine
| US$13,000.00-30,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
LJ-L1270
Object
Tool
Structure
Vertical
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
High Precision
Certification
CE
Condition
New
Spindle Speed
8000
X.Y.Z Axis Speed (mm/Min)
1-10000
Bed Cushion Height(mm)
80
Weight (Kg)
7000
Distance From Spindle Center to Column(M
785
Transport Package
Wooden Packing
Specification
3400*2760*2800
Origin
China
Production Capacity
500
Product Description
| ITEM | 1270BL | LJ-L1270 | ||
| WORKTABLE SIZE(L×W)(MM) | 1360x700 | 1360x700 | ||
| MAX. X AXIS TRAVEL(MM) | 1200 | 1200 | ||
| MAX. Y AXIS TRAVEL(MM) | 700 | 700 | ||
| MAX. Z AXIS TRAVEL(MM) | 700 | 600 | ||
| RANGE OF SPINDLE NOSE TO WORKTABLE | BT40(175-875) | BT50(150-900) | 87-687 | |
| DISTANCE FROM SPINDLE CENTER TO COLUMN(MM) | 770 | 785 | ||
| WORKTABLE SPACINGOF T-SLOTS(NUMBER-WIDTH×DISTANCE) | 5*18*120 | 5*18*122 | ||
| SPINDLE(MODEL /DIAMETER) | BT40/Φ150 | BT50/Φ155 | ||
| SPINDLE SPEED | 8000 | 8000 | ||
| X.Y.Z AXIS BALL SCREW SPECIFICATION | X:4012,Y:4012,Z:4012 | X:5010,Y:5010,Z:5010 | ||
| X/Y/Z AXIS LINEAR SPECIFICATION/SLIDER NUMBER | X;RGH45HA:Y;RGH45HA:Z;RGH45HA | X:KUVE55;Y:KUVE45 Z: RECTANGULAR ROLLER | ||
| X.Y.Z Axis Rapid Speed (mm/min)) | 24000/24000/24000 | 24000/24000/18000 | ||
| X/Y/Z AXIS MOTOR CONNECT WAY | DIRECT | DIRECT | ||
| X.Y.Z Axis Speed (mm/min) | 1-10000 | 1-10000 | ||
| RECOMMNED SPINDLE MOTOR POWER(KW) | 11/15KW | 15/18.5KW | ||
| RECOMMEND X.Y.Z AXIS MOTOR POWER(KW) | 3/3/3 | 4.3/4.3/4.3 | ||
| RECOMMEND X.Y.Z AXIS MOTOR TORQUE(NM) | 2020/20(BRAKE) | 27/27/27(BRAKE) | ||
| BED CUSHION HEIGHT(MM) | 50 | 80 | ||
| MAX LOADING OF WORKTABLE(KG) | 1000 | 1000 | ||
| DIMENSION(MM) | 3400x2380x2660 | 3400x2760x2800 | ||
| WEIGHT (KG) | 5800 | 7000 | ||
| GUIDE RAIL | Y Axis 2 Guide Rail | Y Axis 4 Guide Rail 2 Linear 1 Hard Rail | ||
