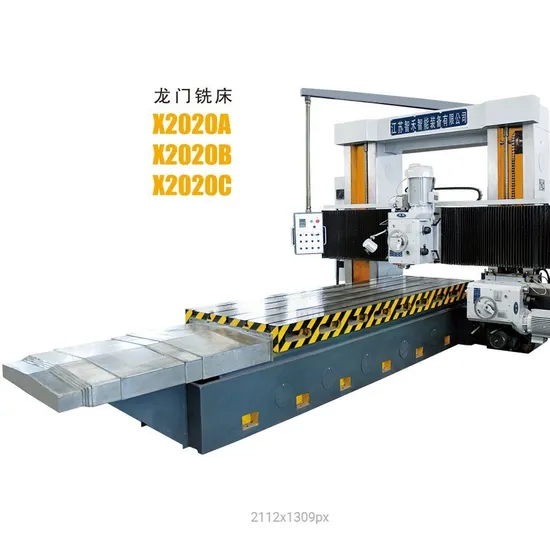

Gantry Type Milling Machine X2016A Worktable Size 3000X1600

Product Description

Precision Planer Miller X2016C
Gantry type milling machine X2016 SERIES
This machine is suitable to precess on plane, bevel, groove and so on with various milling cutter,
It can process workpieces in high speed under heavy load for the powerful and rigid speciality
Horizontal and vertical feed by power-driven.
Accessory: Dro(digital readout) according to the request

Description		X 2012A	X2012B	X 2016A	X2016B
Max. grinding capacity(LxWxH)	Mm	3000*1600*1100	4000*1600*1300	3000*2000*1300	4000*2000*1300
Distance between columns	Mm	1600	1600	2000	2000
Size of worktable	Mm	3000*1250	4000*1250	3000*1600	4000*1600
Power of wortable feed motor	KW	5.5	7.5	7.5	7.5
Power of vertical milling heard motor	KW	7.5	7.5	7.5	7.5
Power of side milling head motor	KW	7.5	7.5	7.5	7.5
Number of milling head	piece	2	2	2	2
Speed of cutting feed	stepless step change
Range of the spind speed		6 ( 82-506 )	6 ( 82-506 )	6 ( 82-506 )	6 ( 82-506 )
Number of T-slots		5	7	7	7
Width of the T-slot	Mm	26	26	26	26
max. load	Kg	10000	12000	10000	12000
Gross weight/Net weight	Kg	25000	28000	27000	32000
Overall dimensions of machine LWH	MM	8000*3500*3000	8000*3300*3000	8000*4000*3000	10000*4000*3000

WORKSHOP
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as surface grinding machine, CNC surface grinder ,CNC Milling Machine ,Vertical Machining Center ,Drilling Machine ,gantry milling machine , CNC gantry milling machine, CNC gantry grinding machine so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in NO 370 Changjiang North Road, NANTONG ,JIANGSU ,CHINA. If you have interest to visit our factory, pls inform
me ahead, i will arrange and company you your visit period.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.
