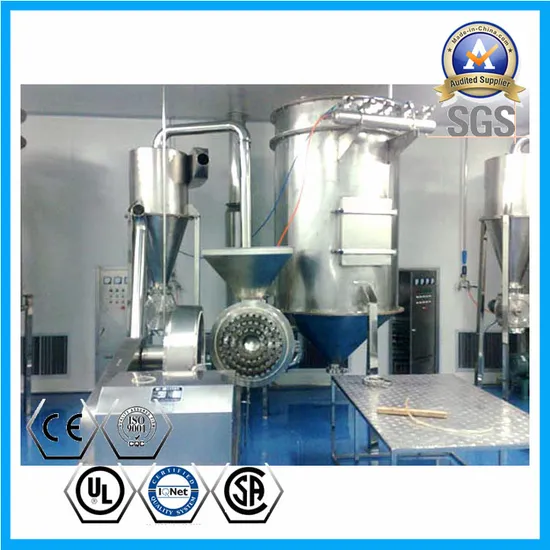

High Efficient Wfj Super Micron Ultrafine Pulverizer for Tapioca, Starch, Herbs, Cinnamon, Spices, Beans 200-400 Mesh
| US$6,990.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
WFJ
Type
Multi-Use Grinding Machine
Processing Object
Curve
Abrasives
Grinding Wheel
Controlling Mode
CNC
Automatic Grade
Automatic
Cylindrical Grinder Type
Universal Cylindrical Grinder
Precision
High Precision
Certification
GS, ISO 9001
Condition
New
Name
Super Fine Grinder
Other Name
Stainless Steel Grinder
Dust Collection
Bag Filter
Mesh Size
20-450mesh
Separator
Cyclone
Transport Package
Wooden Case
Specification
CE, SGS, ISO, GMP
Trademark
CK
Origin
Changzhou
HS Code
8479820090
Production Capacity
500set/ Year
Product Description
Product DescriptionSuperfine pulverizer is suitable for medicine, agriculture, food, chemical, alloy, metallurgy, geological, scientific research, etc. Many varieties of small quantities of traditional Chinese medicine, precious medicinal materials, ore, chemical raw materials such as: Ejiao, Frankincense, Astragalus, Sanqi, Hippocampus, Dodder Ganoderma lucidum, licorice, pearls and other materials of different properties can be crushed very well. This machine adopts high-speed single-phase motor, which has the advantages of precise structure, small size, light weight, high efficiency, no dust, clean and hygienic, simple operation, beautiful appearance, energy saving and safety, etc., which makes the production of medicine, food and chemical more suitable. National standards meet the requirements of GMP.
The equipment consists of main machine, assistant machine, dust bag filter and control cabinet.The process of produce is continuous.
Application: The machine is extensively used in pharmaceutical, chemical, food industries for pulverizing dry brittle materials .
Technical Parameter
| Spec | unit | WFJ15 | WFJ-18 | WFJ-32 |
| production capacity | kg/h | 10-200 | 20-450 | 60-800 |
| inlet material diamenter | mm | <10 | <10 | <15 |
| oulet material diamenter | mesh | 80-320 | 80-450 | 80-450 |
| power | kw | 13.5 | 17.5 | 46 |
| main rotaing speed | r/min | 3800-6000 | 3800-6000 | 3800-4000 |
| overall dimension(L×W×H) | mm | 4200×1200×2700 | 4700×1200×2900 | 9000×1500×3800 |
| weight | kg | 850 | 980 | 1500 |
