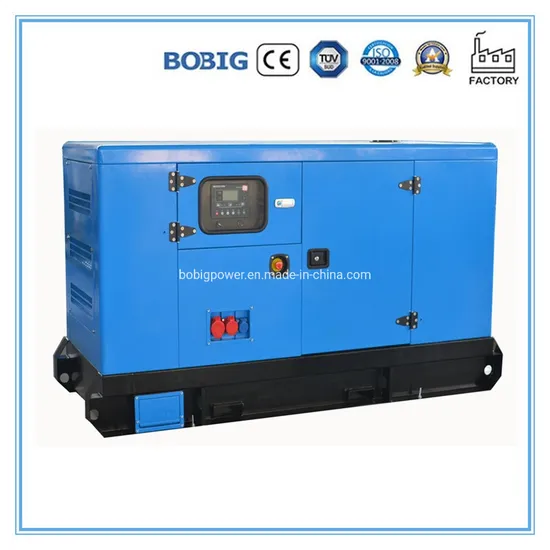

Genset Power Generator 300kw 375kVA Powered by Wudong Engine

Product Description

WE ARE FACTORY!
Products Features: 1.We cooperate with famous diesel engine -Powered by Deutz , LovoL , Lister Petter, Doosan, Shangchai, Yarman, Foton-Isuzu, FAW, SDEC, Weichai, MTU, Ricardo, Jichai,ETC According to Customer
2. Equipped with famous Brushless alternator - Optional Leroy Somer, Marathon, BOBIG, Mecc alte.According to Customer
3. Equipped with 50°C radiator with fan, enough engine cooling system guarantee long time working
4. Equipped with advanced generator set control system, ATS system, remote control system, parallel operation system, optional control model, Deep sea, Smartgen , ComAp ,
5. Generator set use High-quality steel are thickness canopy -- 2MM to 6MM
6. Equipped with high density sound-absorbing material -- sound insulation, fireproofing
7. Generator equipped with 12V/ 24V DC battery with charger, battery connects wire.
8. Generator equipped with 10-12 hours fuel tank with fuel indicator, long time for working.
9. High protect class control box and power output box. IP55, Waterproof, Electric leakage protect, Breaker
10. New design of turn-back type for air inflow & air outlet which can reduce the noise and improve engine efficiency.
11. Beautiful & practicably design, Bottom hole for forklift, Water outlet & oil outlet for easy maintenance
12. Double open door on both sides of the Gensets. Spacious doors can check for every part of the engine and alternator.
13. All new design for diesel generator set of Silent, Supper silent, Soundproof, Trailer type, Container type.
14. Our generator set compliance with all main standards, such as : GB/T2820, ISO8528,IEC34, CE, EPA Tier4 standard Safety - Stability - Economy - Reliability Power Our generator set compliance with all main standards, such as : GB/T2820, ISO8528,IEC34, CE, EPA Tier4 standard

Controller System Standard AMF control panel, including digital LED genset control model: HGM6120U, DSE7320, DSE6020, AMF20, AMF25 Manufacturing Standard GB/T2820, ISO8528,IEC34, CE, EPA Tier4 standard ,GB755,BS 5000,VDE 0530, NEMA MG1-22,IEC34.
Product Warranty policy BOBIG products has guarantee for one year or 1000 hours whichever reach first from ex-factory date. During the guarantee period, we will provide the free easy-damageable spare parts, caused by our quality of production or raw material. After expiration, our provides cost spare parts maintenance. Famous Wudong Engine Founded more than half a century ago, WUXI POWER ENGINEERING CO.,LTD.
is a manufacturer of high performance and high-speed diesel engines.
With power ranging from 56-1200kW,
we produce a wide range of engines suitable for any of your application needs.
These engines are particularly suited for various operations in power stations.
Genset Range:

Genset model	Prime power kw	Prime power kva	Standby power kw	Standby power kva	Engine model	Engine powr KW	Alternator model
WUDONG 50HZ
BSD55S	40	50	44	55	WJ43D6	56	BW-224D
BSD55	40	50	44	55	WJ43D6	56	BW-224D
BSD68.75S	50	63	55	69	WJ45TAD7	66	BW-224E
BSD68.75	50	63	55	69	WJ45TAD7	66	BW-224E
BSD88S	64	80	70	88	WJ65TD8	84	BW-224G
BSD88	64	80	70	88	WJ65TD8	84	BW-224G
BSD123.75S	90	113	99	124	WJ68TAD11	110	BW-274D
BSD123.75	90	113	99	124	WJ68TAD11	110	BW-274D
BSD165S	120	150	132	165	WJ78TAD17	170	BW-274E
BSD165	120	150	132	165	WJ78TAD17	170	BW-274E
BSD206.25S	150	188	165	206	WJ78TAD17	170	BW-274G
BSD206.25	150	188	165	206	WJ78TAD17	170	BW-274G
BSD220S	160	200	176	220	WJ97TAD21	215	BW-274H
BSD220	160	200	176	220	WJ97TAD21	215	BW-274H
BSD247.5S	180	225	198	248	WJ97TAD21	215	BW-274J
BSD247.5	180	225	198	248	WJ97TAD21	215	BW-274J
BSD275S	200	250	220	275	WJ97TAD24	240	BW-274K
BSD275	200	250	220	275	WJ97TAD24	240	BW-274K
BSD316.25S	230	288	253	316	WD129TAD25	258	BW-314D
BSD316.25	230	288	253	316	WD129TAD25	258	BW-314D
BSD343.75S	250	313	275	344	WD135TAD28	280	BW-314DS
BSD343.75	250	313	275	344	WD135TAD28	280	BW-314DS
BSD385S	280	350	308	385	WD145TAD30	309	BW-314ES
BSD385	280	350	308	385	WD145TAD30	309	BW-314ES
BSD412.5S	300	375	330	413	WD145TAD33L	339	BW-314F
BSD412.5	300	375	330	413	WD145TAD33L	339	BW-314F
BSD453.75S	330	413	363	454	WD145TAD35	353	BW-354C
BSD453.75	330	413	363	454	WD145TAD35	353	BW-354C
BSD481.25S	350	438	385	481	WD269TAD38	382	BW-354C
BSD481.25	350	438	385	481	WD269TAD38	382	BW-354C
BSD550S	400	500	440	550	WD269TAD43	432	BW-354D
BSD550	400	500	440	550	WD269TAD43	432	BW-354D
BSD577.5S	420	525	462	578	WD269TAD45	465	BW-354DS
BSD577.5	420	525	462	578	WD269TAD45	465	BW-354DS
BSD632.5S	460	575	506	633	WD269TAD50	506	BW-354E
BSD632.5	460	575	506	633	WD269TAD50	506	BW-354E
BSD687.5S	500	625	550	688	WD269TAD56	560	BW-354E
BSD687.5	500	625	550	688	WD269TAD56	560	BW-354E
BSD742.5S	540	675	594	743	WD287TAD58	580	BW-354F
BSD742.5	540	675	594	743	WD287TAD58	580	BW-354F
BSD797.5S	580	725	638	798	WD287TAD61L	618	354F L525/65
BSD797.5	580	725	638	798	WD287TAD61L	618	354F L525/65
BSD825S	600	750	660	825	WX287TAD68	682	354F L525/65
BSD825	600	750	660	825	WX287TAD68	682	354F L525/65
BSD880S	640	800	704	880	WD327TAD73	730	BW-404C
BSD990	640	900	792	990	WD327TAD73	730	BW-404D
BSD990S	720	900	792	990	WD327TAD78	780	BW-404D
BSD990	720	900	792	990	WD327TAD78	780	BW-404D
BSD1031.25S	750	938	825	1031	WD327TAD82	820	BW-404E
BSD1031.25	750	938	825	1031	WD327TAD82	820	BW-404E
BSD1100S	800	1000	880	1100	WD327TAD88	880	BW-404E
BSD1100	800	1000	880	1100	WD327TAD88	880	BW-404E
BSD1237.5S	900	1125	990	1238	WD327TAD100	1000	BW-404G
BSD1237.5	900	1125	990	1238	WD327TAD100	1000	BW-404G
BSD1375S	1000	1250	1100	1375	WD360TAD110	1100	BW-404H
BSD1375	1000	1250	1100	1375	WD360TAD110	1100	BW-404H
BSD1512.5S	1100	1375	1210	1513	WD360TAD120	1200	BW-404J
BSD1512.5	1100	1375	1210	1513	WD360TAD120	1200	BW-404J

The model No. "S" means Silent (soundproof) Type Pictures:
Why BOBIG: 1. 15 years experience in supplying diesel generator sets and gas generator with different sorts of brand
2. We are Factory,you will have Factory price,Factory Quality,Factory Warranty.
3. Offer Super good service before and after sales,Respone your needs fast.
4. Our reputation for low prices, fast shipping and excellent customer service keeps customers coming back
FAQ:
1. What is your MOQ, payment method, delivery time?
Answer: Our MOQ is only 1 set. Payment method usually is 30% T/T as deposit, 70% balance T/T before delivering.
Or 100% L/C,tradeassurance,paypal,wester union..Delivery period normally will be 10~15 working days after receiving customers' deposit.
2. Which port do you often use when export?
Answer: Fuzhou port,Fujian province or as customer request.
3. Is there any spare parts you can provide along with genertors to make the maintenance convenient?
Answer: We can provide regular engine's air filter, water filter, fuel filter, oil filter to customers for self-maintenance.
4.Can you offer parts to us if we need?
Answer: Yes,we can offer parts to you at any time,not limited in warranty time.usually the parts can be sent out during 3-5days.
5. For voltage,frequency,tank capacity,phase and color,can you made accord with our requests?
Answer: Yes,they can be made accord with your need.
6. If I want to be your products distributor in our country, what is your distribution policy?
Answer: Welcomes everybody join us and distribute products worldwide. We can issue authority certificates and sign agreement with you accordingly.
