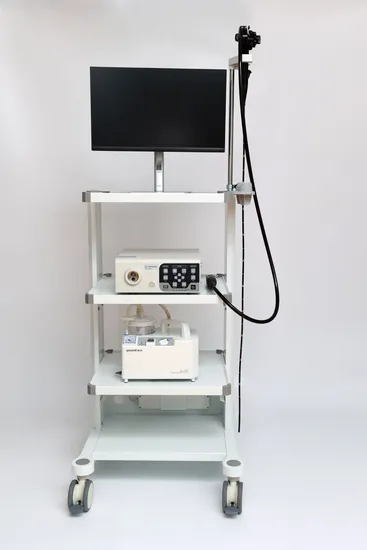

Vet-1508 Universal Animal High-Definition Endoscope

Product Description

Main technical parameters of VET-1508 universal animal high-definition endoscope
1-1 Main hose outer diameter Φ8.3mm
1-2 Outer diameter of head end Φ8.3mm
1-3 Working length 1500mm
1-4 Field of View 120º
1-5 Observation depth 3-100mm
1-6 resolution 2 million image elements (imported CMOS, high-definition imaging)
1-7 Bending angle 210º up, 90º down, about 100º each
1-8 working channel 2.8mm oversized working channel, can use more instruments
1-9 Bending operation Chain traction structure. The whole machine is fully sealed and waterproof
1-10 Take pictures and videos Connect with the host, one-click video recording and taking pictures
1-11 Warranty period Quality warranty period is one year, lifetime maintenance
Main technical parameters of VET-300F image processing center
4-1 Digital Image Processor High-definition digital image processing center, highlighting details
4-2 Brightness 0 - 100 adjustable
4-3 Red saturation 0 - 100 adjustable
4-4 Blue Saturation 0 - 100 adjustable
4-5 Green Saturation 0 - 100 adjustable
4-6 Languages Two (Chinese and English)
4-7 Dark Light Compensation
Uniform brightness, no dark block vignetting
4-8 Air pump pressure 0.06 Mpa
4-9 Airflow 7.5L/min, H/M/L adjustable in three gears, suitable for large, medium and small animals
4-10 Output resolution HDMI high-definition video output, 1080P imaging
4-11 White Balance Auto White Balance
4-12 Light source type LED-40W
4-13 Light source life 20000H
4-14 Color rendering index 93
4-15 Brightness 1000lm
4-16 Photo and Video HD Imaging
4-17 Memory Built-in TF card (64G), which can record and take pictures in a large amount, record and take pictures with one key, and can directly connect with mobile phones, tablets or computers to share photos and videos.
4-18 Expanded function Compatible with flexible endoscope 6.3mm, 8.3mm, 12.9mm gastrointestinal endoscope
Compatible with laparoscope, cystoscope, rhinoscope, bronchoscope, etc. (requires supporting equipment)

No.	Name		Configuration	Quantity
1	Small animal endoscope(VET-1206)		6.3*1200	1
		water bottle		1
		cleaning brush		1
		Biopsy forceps	1.8	1
		Foreign body forceps	1.8	1
2	Universal animal endoscope(VET-1508)		8.3*1500	1
		water bottle		1
		cleaning brush		1
		Biopsy forceps	2.4	1
		Foreign body forceps	2.4	1
3	Large animal endoscope(VET-3313)		12.9*3300	1
		water bottle		1
		cleaning brush		1
4	Image Processing CenterVET-300F)		VET-300F	1
		Power cable		1
		Fuse	2A	2
		TYPE-C cable		1
		HDMI cable		1
		DVI cable		1
5	Monitor		22 inch HD	1
	Cart		ABS	1
	Attractor			1
