Triseam Rheinzink Titanium Zinc Double Lock Standing Seam Roofing Sheet, Wall Panel Triseam25-430

US$25.00

1,000-4,999 Meters

US$22.00

5,000-9,999 Meters

US$19.00

10,000+ Meters

Basic Info.

Model NO.

Triseam25-430

Customized

MOQ

1, 000 Meters

Quality Mgmt

ISO9001

Test

SGS

Transport Package

Seaworthy Pack

Specification

Effective Width: 430mm

Trademark

Trizip

Origin

Hangzhou City, China

HS Code

7606920000

Production Capacity

10, 000, 000m/Year

Product Description

Product Information

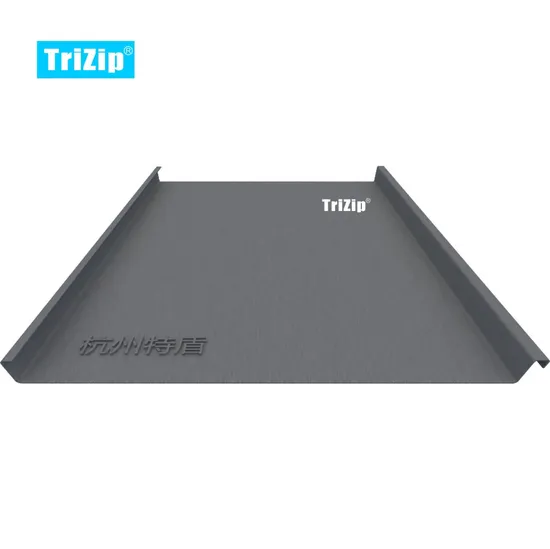

Product Description: Triseam Rheinzink Titanium Zinc Double Lock Standing Seam Roofing Sheet, Wall Panel Triseam25-430
Product Type: Triseam25-430
Rib Height: 25mm
Constructional Width: 430mm
Common Raw Material: Titanium Zinc
Common Thickness: 0.7mm, 0.8mm
Material Surface Finishing: Color Coated, Pre-passivation
Service Life: 70~100 years in normal climate weather
Product Application: Roofing, Cladding, Facade System for Villa, Resort, Hotel, Hospital, School, Apartment, Park, etc.

Product Features and Key Benefits

Triseam Double Lock Standing Seam Roofing/Façade System was developed from Europe Standing Seam techniques which had been widely implemented from mid-19 century. Standard panel seam height 25mm, panel connects panel by the rib seam zipped by special machine. This seam zipping technique fulfills various architecture shapes.

Product Outstanding Features

Triseam Double Lock Standing Seam Roofing/Façade System is a very flexible, high-performance product which forms a robust water-proofing surface for the architectures with many outstanding advantages:
1. No hole, no punching installation
2. No connection point or overlapping
3. Can fixed vertically
4. Multiple choice of different raw materials and panel shapes
5. Maintenance-free
6. Curved panel producible
7. Water-proof & ventilated
8. No rely on sealant or adhesive
9. Hidden installation clips absorb the thermal expansion
10. On-site fabrication enable extra-long panel

Structural/Functional Diagram of Roofing System

Water-proof & Ventilated Layer: Suggest to apply waterproof breathable membrane to prevent the vapor inside the building penetrates into the roofing system. The membrane need to be laid to the side of higher temperature. Be careful for the punching area handling to enable airtightness.
Sound Proof Layer: Our roofing system meets acoustic design requirements, to enable better sound insulation, we apply rigid mineral insulation board to increase sound insulation density. The application of perforated inner panel and insulation board in the roofing system helps reducing the echo and reverberation inside the building.
Thermal Insulation Layer: Our insulation layer meets the project and L2 level requirements, the new standard of BRE requires enhancing the thermal insulation for all architectures by applying the minimum U value. Under the coordination of the business partners and our experts, we build the feasible model for our roofing system and the surrounding details. Often laying the mineral insulation cotton between the metal inner board and roof panel to form a sandwiching layer which prevents the heat transmission during metal materials, the insulation materials affects the whole system U value.
Welding: Special on site welding technique can ensure a better water proof effect, no adhesive or sealant needed.
Lightning Protection: Metal roofing can form an effective lightning arrester

Material Introduction: RHEINZINK-the Living Material

RHEINZINK Physical & Material Performance
RHEINZINK alloy consists of 99.995% purity electrolytic zinc (DIN1706), copper and titanium. It's a metal alloy invented just for construction industry.

Material Introduction: RHEINZINK-the Living Material
RHEINZINK titanium zinc panel endows the architecture a living beauty. The eternal and elegant natural surface enables the building an everlasting, flexible and durable solution. Nearly no material can be as fascinating as RHEINZINK initial look. Over time, the passivation titanium zinc material will generate a natural oxidized layer which results in a distinctive and charming surface. While it stabilized, a unique roof/façade appearance forms, it gives the architecture an eternal elegance.
* Long Service Life
Zinc is an outstanding and durable metal with strong Corrosion resistance. Zinc can form a high-density passivation protection surface which enables an extreme slow corrosion.
Experimental test and tracking shows that the average corrosion of zinc is 1μm/year. So the normal service life for 0.7mm titanium zinc panel reaches 70~100 years.
* Low Maintenance Cost
The maintenance cost is extremely low for titanium zinc panel, it's the best investment. The passivation surface won't strip off, drop off, and grows constantly which enable the self-repair of the surface scratching.
* Excellent Extensibility
The extensibility of titanium zinc panel gives the architecture designer unrestricted freedom and fulfills their inspiration. Titanium panel is easy to install, convenient to produce on site, can fabricate into various architecture shape (such as: bended panel, curved panel, ball panel, etc.) which shapes the distinctive design beauty.
* Environmentally Friendly Material
Titanium zinc is an environmentally friendly material, it can be 100% recycled and it's consistent for the sustainable development concept. It won't harm the surrounding environment, the rain flushed from the zinc panel surface can water the plants without any side impact because zinc comes from the nature and enriches in the earth.

Various Colors Options

Cases of Triseam Double Lock Standing Seam Roofing/Façade System
